For FiatECUScan Adapter MultiECUScan 6 Color OBD OBD2 Connector ABS Airbag obd2 scanner Diagnostic cable for Fiat ECU Scan tool

Special Features:Other
Software Update:No
Language:English
Software Version:Latest Version
Hardware Version:Latest Version
Origin:Mainland China
Item Type:Code Readers & Scan Tools
Car Maker:for Fiat
External Testing Certification:CE
is_customized:Yes
Item Length:30 cm
Item Name:for Fiat ECU
Power:24w
Voltage:12v

6 Color OBD OBD2 Connector For FiatECUScan Adapter MultiECUScan ABS Airbag obd2 scanner Diagnostic cable for Fiat ECU Scan tool
MultiECUScan / For FiatECUScan Adapter Cable Bundle
Thank you for purchasing the Gendan adaptor cables for the For FiatECUScan package.
Cable length: 22cm
Note: There are only used as a connecte cable and does not contain any software or diagnostic cables

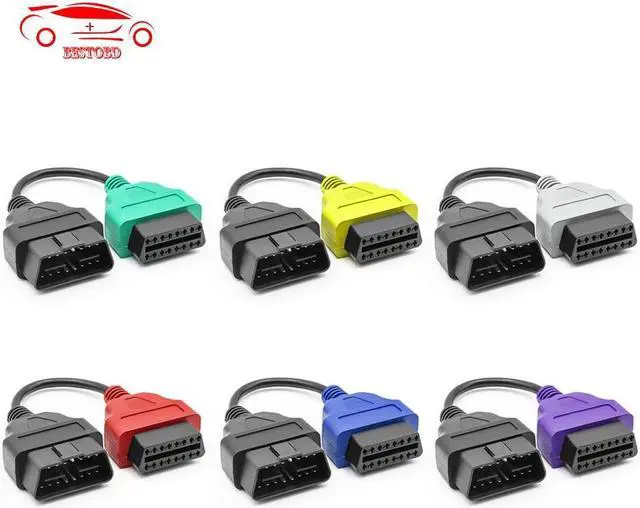

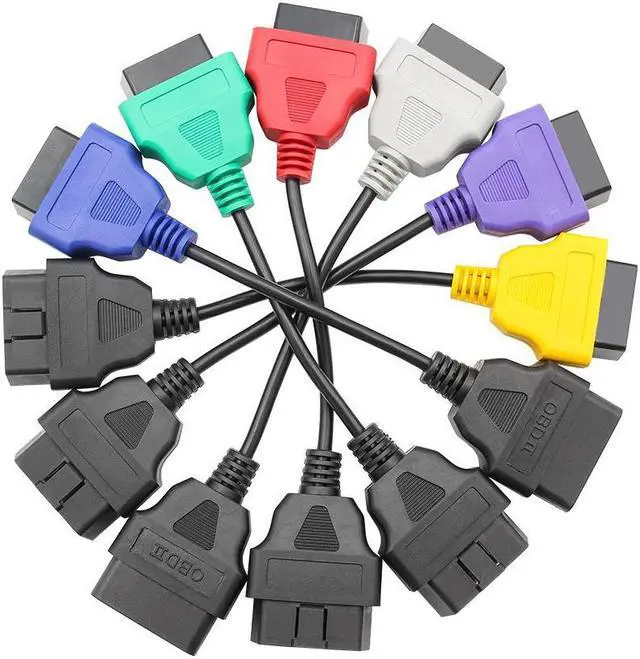

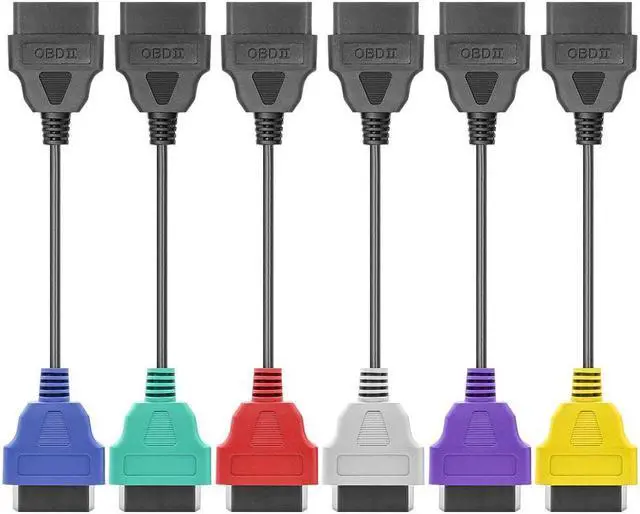

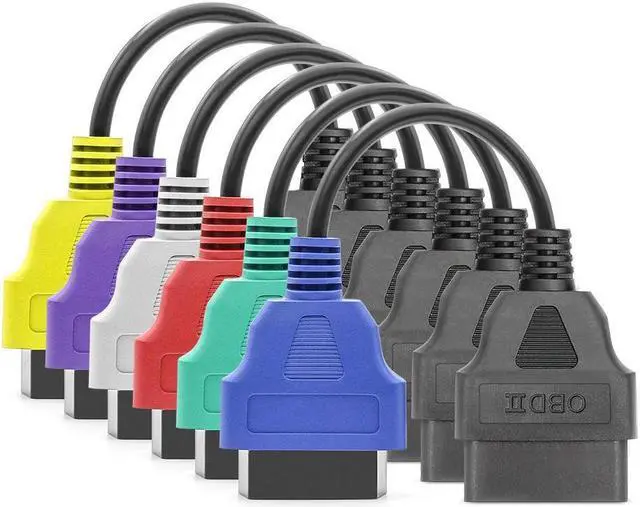

There are 6 adaptor cables included which perform different functions.
Green ABS / Power Sreeing adapter lead ( "Adapter 1" on MultiECUScan website)
-Designed to allow access to the ABS and Power Steering systems on supported vehicles. This adapter has a green connector on one end for easy identification.
Using this adapter, Pin 7 on the diagnostic tool is connected to Pins 1,7,9 & 12 on the car.
Red Airbag adapter lead ( "Adapter 2" on MultiECUScan website)
-Designed to allow access to the Airbag system on supported vehicles.
This adapter has a red connector on one end for easy identification.
Using this adapter, Pin 7 on the diagnostic tool is connected to pin 3 only pn the car.
Yellow CAN adapter lead ( "Adapter 3" on MultiECUScan website)
-Designed to allow access to the low-speed CAN system on supported vehicles.
This adapter has a yellow connector on one end for easy identification.
Using this adapter, Pin 6 & 14 on the diagnostic tool are connected to pins 1 & 9
Respectively on the car, Pin 7 on the diagnostic tool is connected to pin 12 on the car.
Purple Electric hood adapter lead ( "Adapter 4" on MultiECUScan website)
-Designed to allow access to the electric hood system on supported vehicles.
This adapter has a purple connector on the end for easy identification.
Using this adapter, Pin 7 on the diagnostic tool is connected to pins 7,8,11 & 13 one the car.
Blue Control Module Adapter Wire Design allows access to enhanced features on the vehicle (eg, multimedia, blind spot sensors, etc.)
Gray base control module adapter wire designed to allow access to basic functions on the vehicle (eg headlights, parking controller, ABS, electric steering, etc.)
Packing List:
6 x ECU connecte Cables for Fiat
