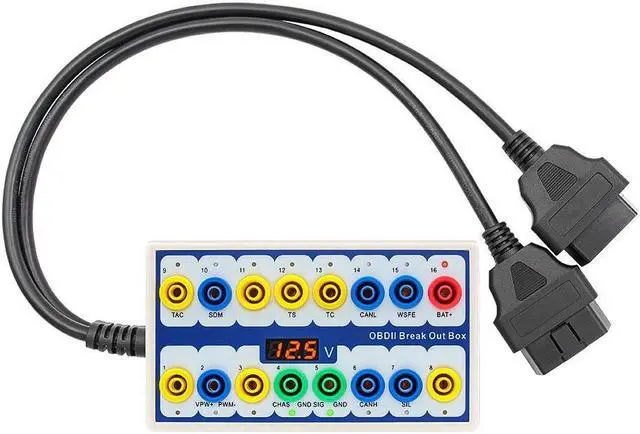

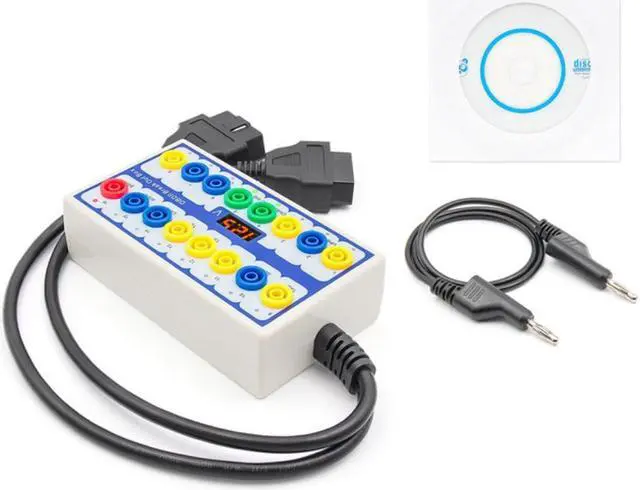

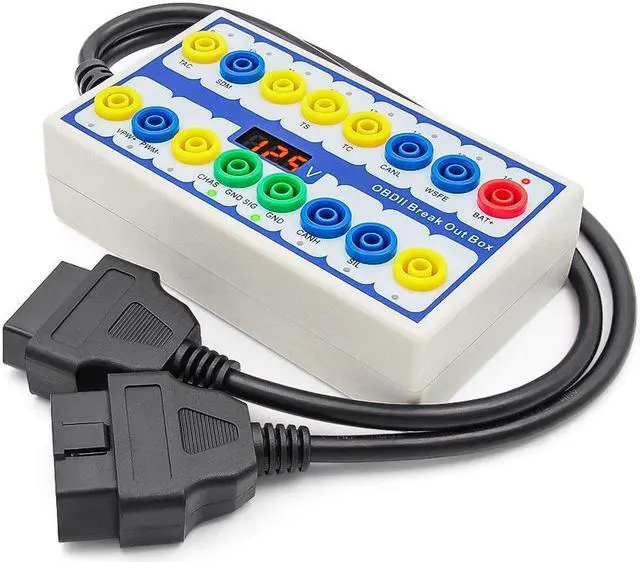

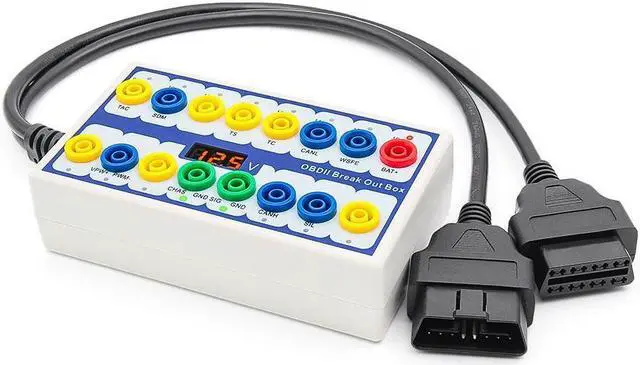

OBD2 Break Out Box for 16pin OBD 2 interface OBDII Protocol Communication detection Tester Voltage Test

Electronic:No
Material Type:Plastics
Item Weight:0.5kg
Item Height:4cm
Item Width:9cm
Item Length:15cm
External Testing Certification:ce
Voltage:v
Power:w
Model Name:OBDII Break Out Box
Software Version:est
Hardware Version:est
Item Type:Car Diagnostic Cables and Connectors
Origin:Mainland China
Item Name:OBDII Break Out Box for 16pin interface

This is a latest testing platform for OBDII protocol communication detection. It can convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion.
Special features:
1: Determine whether there is the fault with the OBDII interface.
2: exchange reset tools
3: Voltage transfer
Highlights of OBDII Break Out Box:
1. This is a latest testing platform for OBDII Protocol Detector & Communication Detection.
2. It can convert the car OBD2 interface into 6 pin for signal detection and electrical level conversion.
3. Connect with any diagnostic tool to tell whether the car communication is good or not.
4. Supply power to the car when you change the to avoid the vehicle control module data being lost, automatically locked, key remote control fails or the fault light turns on.
OBDII Protocol Detector & Communication Detection
1. Connect OBDII Break Out Box to the OBDII diagnostic port of the car.
2. After the device displays the voltage.
3. Then connect to the diagnostic tool, when the tool is communicating with the car, the LED indicator of corresponding protocol will light up or flash. ( If the CAN protocol is detected, it will have the maximum brightness. When the communication is successful, the corresponding CAN-H and CAN-L will dim or twinkling weakly)
Able to power the car when replacing the used
1. Prepare additional A to supply power by connecting to No. 16 / 4 / 5 holes of OBDII Break Out Box & to the OBD2 diagnostic interface of the car.
2. Then replace the brand-B with the used in the car, which will ensure that the car has fully power to prevent data loss and audio lock-up or the malfunction due to lack of power to the ECU control module.
Extend the car's OBDII 16pin interface to tell you whether the OBDII interface connection is good or not, which is convenient for the test of OBDII interface voltage waveform.
Convert OBD1 diagnostic interface to the standard OBD2:
Use the connector to convert the OBD1 interface into OBD2 interface according to the diagnostic interface communication protocol.
Indicator Meaning:
1. Manufacturer custom
2. S
J
E1850 wirebus
+
3. Manufacturer custom
4. Power grounding
5. Signal grounding
6. SAEJ2284CANhigh
7. ISO9141-2&iso, DIS4230-4K wire
8. Manufacturer custom
9. Manufacturer custom
10. S
J
E1850 wirebus-
11. Manufacturer custom
12. Manufacturer custom
13. Manufacturer custom
14. SAEJ2284CANlow
15. ISO9141-2 & ISO/DIS 4230-4L wire
16. Car positive
