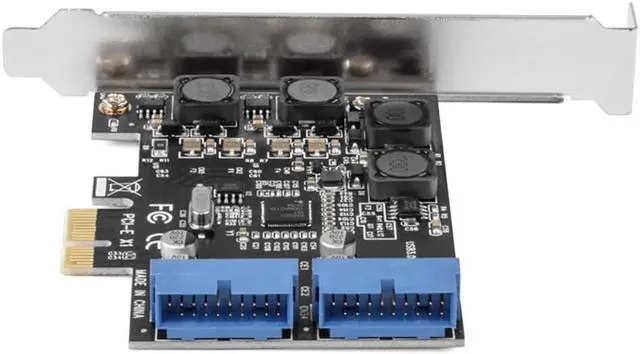

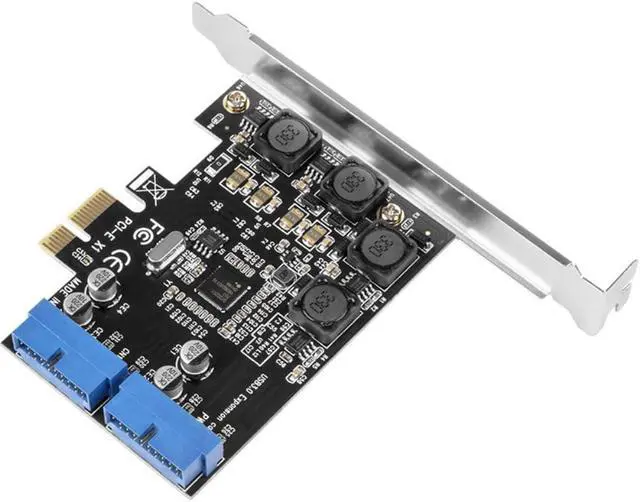

Front PCI-E To 19/20 Pin Header Adapter for Desktop PC USB 3.0 PCI Express Expansion Card Module

Type:PCI-Express Cables
Origin:Mainland China
Certification:NONE

USB 3.0 built-in 19pin dual port internal PCI-E expansion card, no power supply is required for the expansion front panel
PCIe USB3.0 expansion card
The expansion card complies with the USB 3.0 Specification Revision 1.0,
Support USB 3.0 super speed (5Gbps), high speed (480mbps) and full speed (12mbps),
And downward compatible with USB 2.0 / 1.1 standard.
The control chip supporting 5Gbps ultra-high speed USB 3.0 standard is adopted.
This USB3.0 is a dual port expansion card, which is composed of an internal USB3.0 19pin.
USB3.0 housing 19pin row pins can be connected internally and extended to the front panel of the chassis,
Two USB3.0 am interfaces can be extended. It is convenient for your various extended applications and assembly.
PCI Express compliant version 2.0
Comply with USB3.0 superspeed specification version 1.0
Comply with xhci specification version 0.95
The maximum transmission rate is up to 5Gbps, and the performance is stable
Downward compatibility with USB2.0, USB1.1 and usb1.0
Transmission rate: 5000 / 480 / 12 / 1.5mbps
USB power output: up to 5V 900mA
Support USB hot plug function
Support Windows2000 / XP / Vista / 7 -- 32-bit and 64 bit systems
