LAN cable for CCTV IP camera board module (RJ45 / DC) standard type without 4/5/7/8 wires , 1x status LED

Plug Type:None
Item Type:POE Cable Kit
Origin:Mainland China
Certification:NONE
Model Number:LAN cable
Size:Cable Length : 60cm (approxmate)
RJ45:RX+ / RX- / TX+ / TX- (without 4/5/7/8)
DC Jack:red wire (+) center PIN / black wire (-) shield

LAN cable for CCTV IP camera board module (RJ45 / DC) standard type without 4/5/7/8 wires , 1x status LED

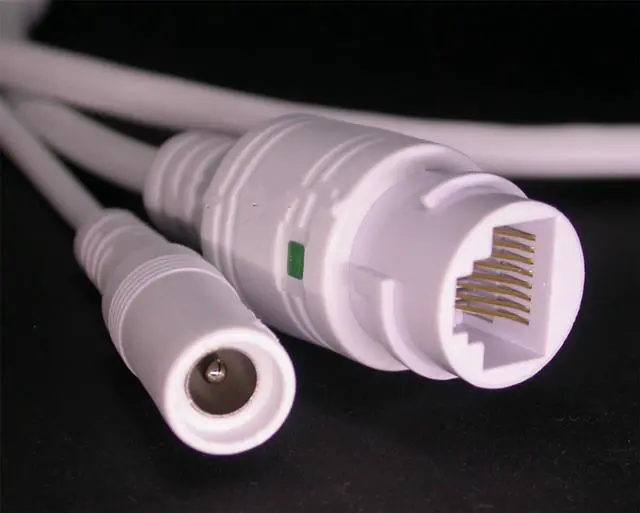

* One green color status LED in RJ45 connector.
* 6PIN
1.25mm pitch
connector for Network to RJ45.
    Green        =   RX-
    Green -X   =   RX+
    Blue           =   TX-
    Blue -X      =   TX+
    Violet         =   Status LED (positive PIN)
* 2PINs
1.25mm pitch
with 4PINs connector, Power supply for camera.
    Red        =   Power supply
positive (+)
    Black      =   Power supply negative (-) , GND
* 2PINs
2.0mm pitch
Power supply for IR LEDs.
    Red        =   Power supply
positive (+)
    Black      =   Power supply negative (-) , GND
Packing List / Item Included
1pcs LAN cable.
