Ship ,150w Power Supply 24Pin 12V DC Mini ITX PSU DC ATX PC Switch DC-DC ATX Power Mould To Pico-box

PFC Type:Active
CPU Power Connector:4 pin
Package:Yes
Application:Desktop,Server
Model Number:150w
Output:see below
Input Voltage:12v
Modular:Full Modular
80 PLUS Certification:Other Certification
Origin:Mainland China
Certification:NONE

ship ,150w power supply 24Pin 12V DC Mini ITX  PSU DC ATX PC Switch DC-DC ATX  DC-DC power mould to pico-box
Description:
100% and

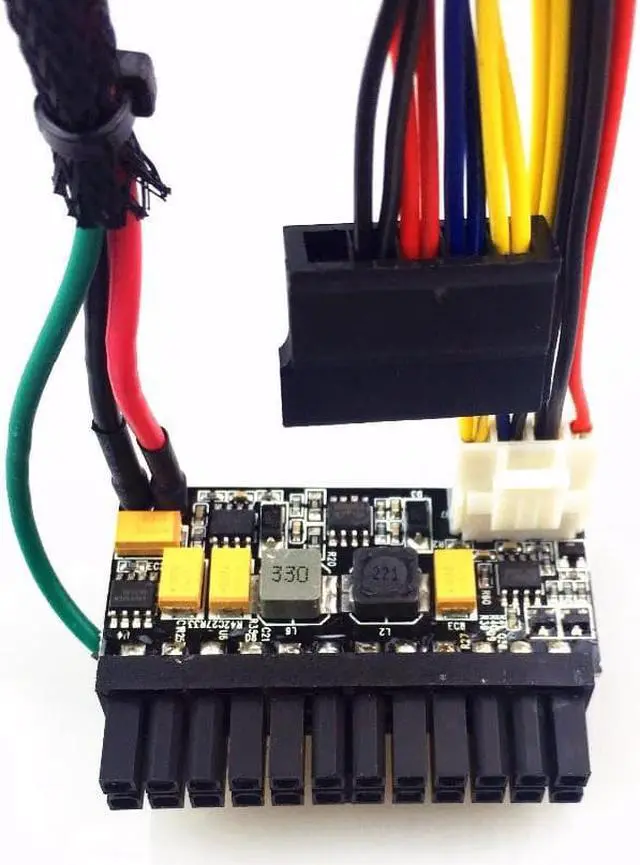

Size (L*W*H): 55mm*38.5mm*10mm(approx)
Adopt industrial solid capacitor, ideal for being used in harsh evironment
High performance with high heat-stand feature, more reliable
Without fan for 100% mute working
Compact design, special for mini-itx and 1U case
Modules can reach 150W, and it must be accompanied by the power adapter
rated power150W
main interface:24pin+4pin

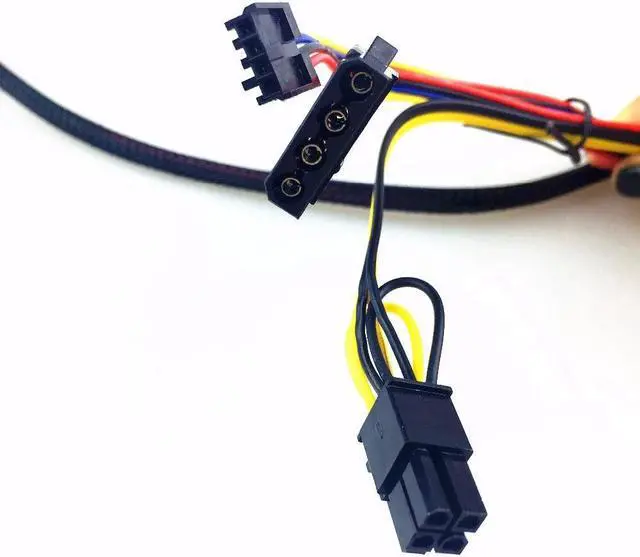

Auxiliary interfaceSATA / IDE / floppy drive
input interface5.5*2.5MM
Input voltage12V
Conversion efficiency85%
SIZE:55*38.5
Specifications:
Input voltage: +12V/DC(11.4-12.6V)
DC input: 2.5mm inner diameters, 5.5mm outer diameter
Input Current: Max. 17A
Output Power: 150W
Power Efficiency: > = 85%
Working temperature/humidity: 15 to 35 / 45%-75%
Reposition temperature//humidity: -40 to +70/ 10%-90%
Atmospheric pressure: 86K106K
Applications:
MINI computers, one computer, POS, digital set-top boxes, ITX chassis, network servers, advertising, banking terminals, etc.
Package includes:

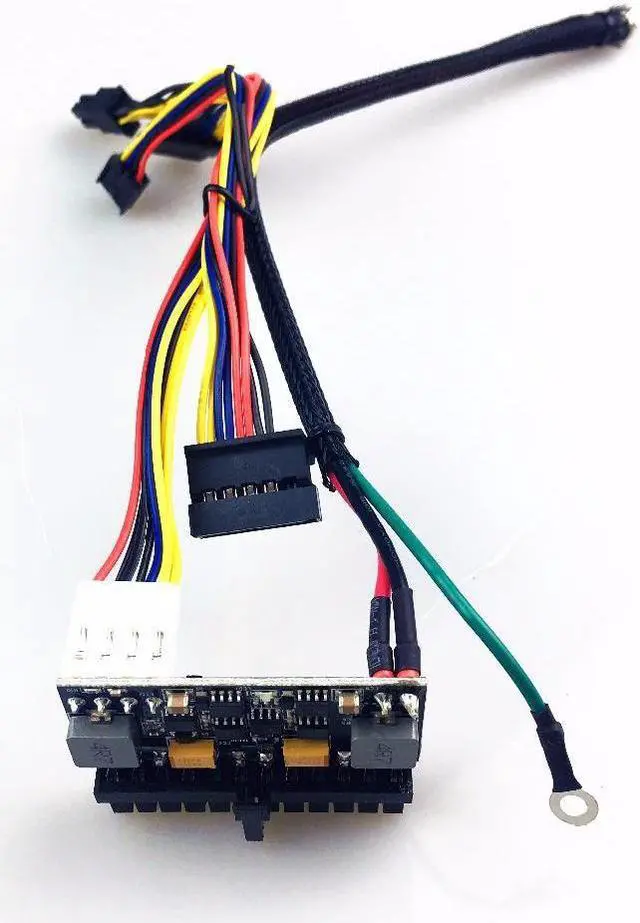

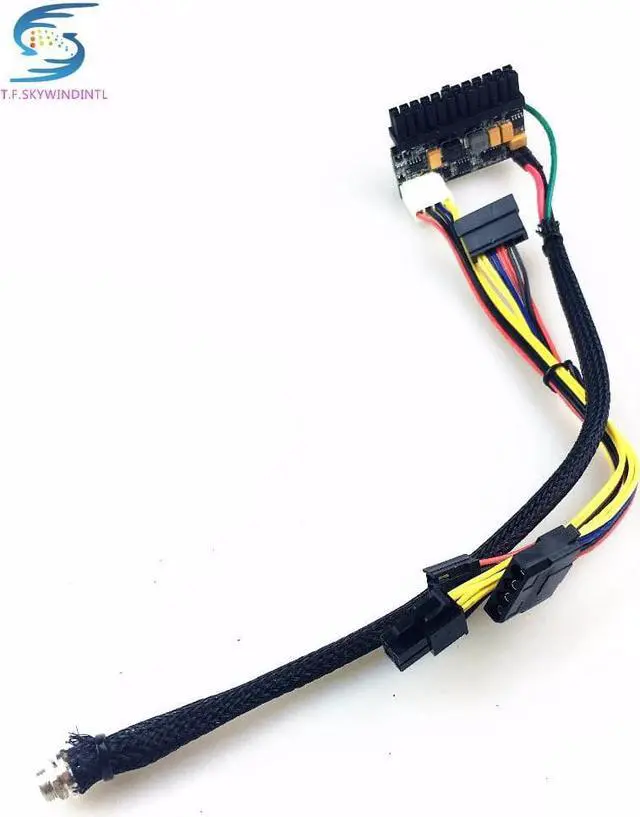

1 x DC-ATX 150W Module (with cable)
