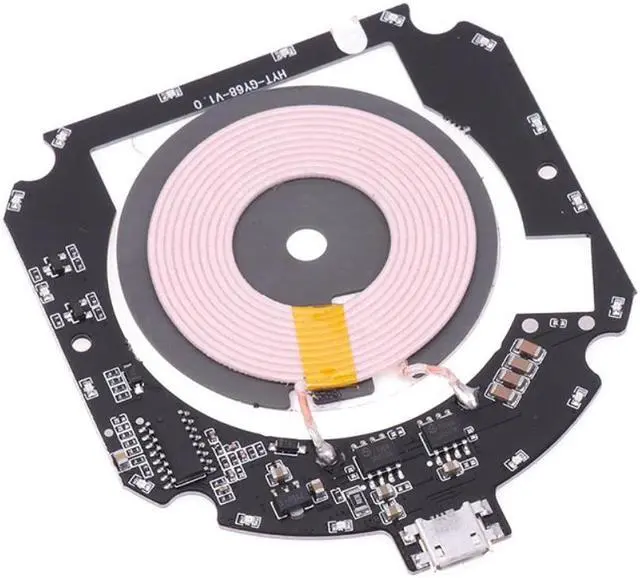

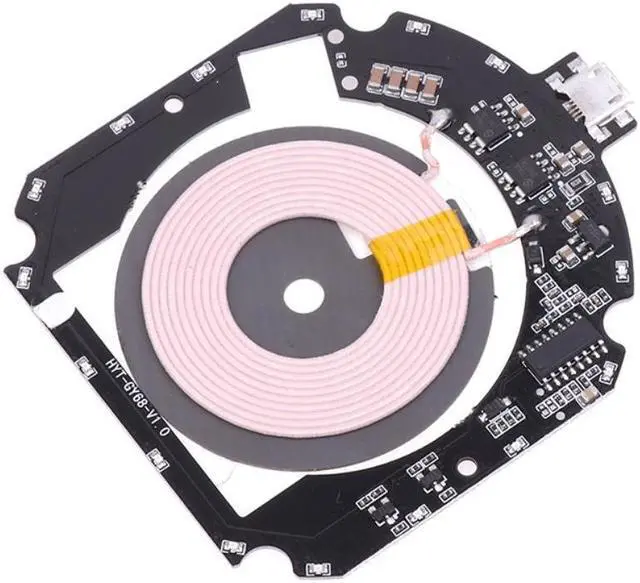

20W qi wireless charger PCBA For iphone 12 pro Circuit Board DIY For iphone wireless charging For huawei p30 pro

Data Transmission:USB
Display screen:No
Intelligent Charge:Yes
Quick charge:Yes
Type:USB
Origin:Mainland China
Certification:CE
Future:Wireless chargers
Future 1:Wireless charger pcba
Future 2:Wireless charger pcb
Future 3:qi wireless charger
Future 4:qi charger
Future 5:With Charging Indicator
Future 6:wireless phone charger
Future 7:charging dock
Future 8:Air Charge

Function parameter description:
1, the input voltage: 5V2A output: 5V1A
2,  the input voltage: 9V2A 5V4A 9V1.67A output: 9V1A 5V1.5A
3, charging current: 1000mAh-2000MAH
4, charging power: up to 15W 20W
5` wireless conversion efficiency: 73%, boost circuit 90%
6, transmission distance: maximum 10mm, recommended transceiver spacing 2mm~4mm
7, standby power consumption: the average power consumption is less than 50mW
8, over-temperature protection: When the temperature is higher than 60 degrees when charging, automatically stop charging for 2 minutes, and then recharge after the temperature drops
9, over-current protection: when the charge and current consumption is greater than 1.8A, automatically stop charging to prevent damage to the charger
10, the implementation of standards: Qi wireless charging standard
11, product certification: compatible QI certification standards
