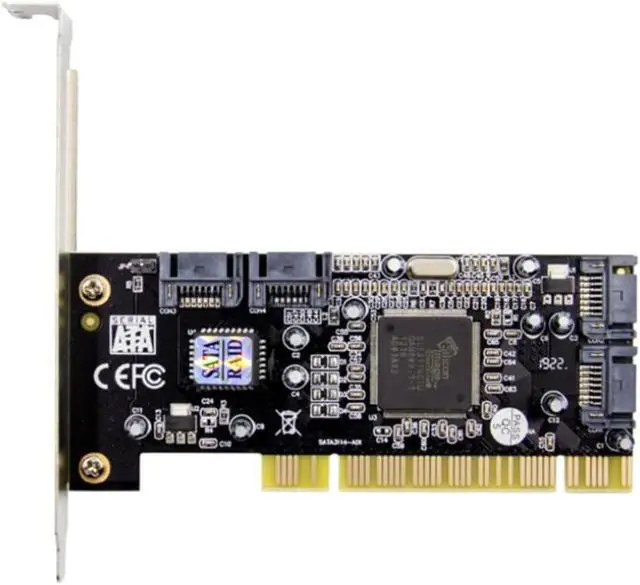

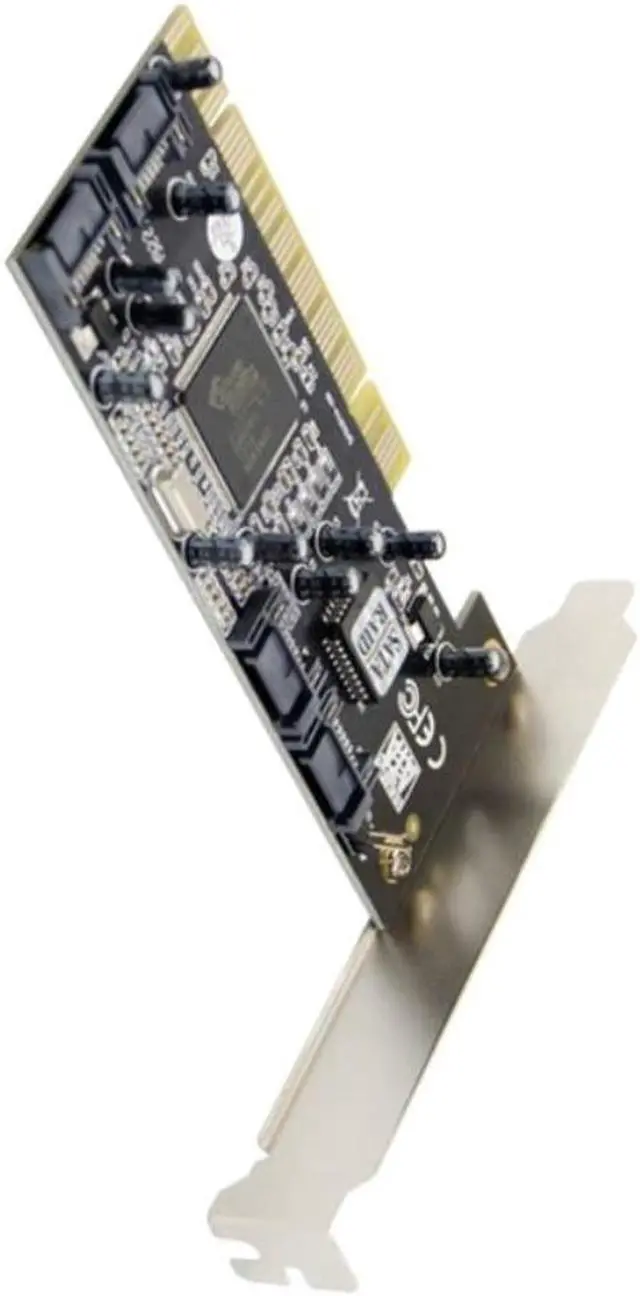

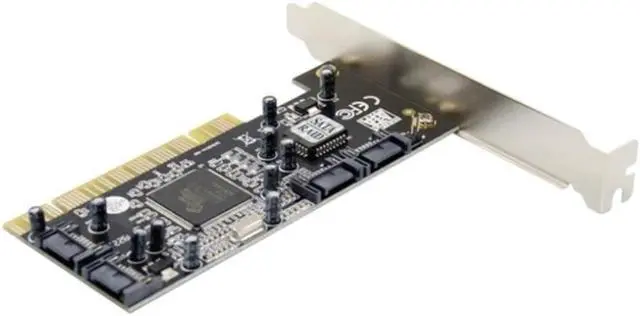

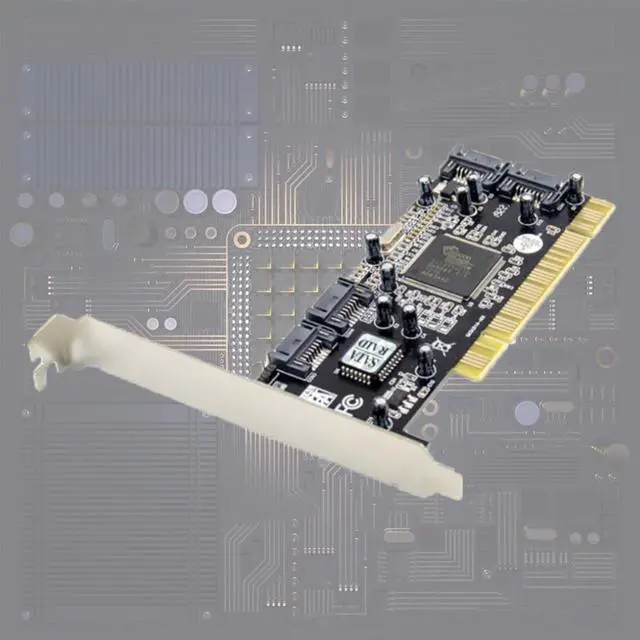

PCI Expansion Add on Card 4 Ports Sil 3114 Chipset RAID 3114 Array Card SATA Expansion Card Conversion Card Adapter

Package:Yes
Certification:NONE
Type:Add On Cards
Origin:Mainland China

4 Ports Silicon Image Sil 3114 Chipset RAID Controller Card 3114 Array Card PCI to SATA Expansion Card Conversion Card
Features:
and
Sil3114 SATA PCI Serial ATA host controller card is designed to provide high-performance, low-cost and reliable solutions for users who need to provide storage peripherals through the serial ATA interface. It can control four independent serial ATA channels, each channel has its own serial ATA bus and supports one serial ATA device.
Silicon Image SiI3114 SATA controller chip complies with PCI specification revision 2.3, 32Bit, 33/66Mhz, and complies with Serial ATA 1.0 specification.
Provides four independent channels, supports up to four serial ATA drives, supports RAID0 (striping), RAID1 (mirroring), RAID5 (parity RAID), RAID 0 + 1 (mirroring + striping) and oncatenation modes.
When not in a RAID set, the HDD operates normally and supports SATA up to 150MB/sec.
RAID function, supports RAID function 0 or 1, supports coexistence of RAID sets and non-RAID HDDs, and allows HDDs of different sizes to be configured in RAID sets.
Operating system: Windows 98SE / ME / NT4.0 / 2000 / XP / Vista / Win 7 32/64 bit.
Pentium class computer with an available PCI slot.
Specifications:
MaterialPCB+ Metal
ChipSilicon Image Sil3114
OEM: OEM Available
Weight: about 95g
Package Includes:
1x 4 Port PCI to Sata Expansion Card
Note:
Due to the lighting effects and shooting angles, there is color difference in the product, please understand.
Due to manual measurement, there is a tolerance in the product size.
