for Dc 12V 2CH RF Wireless Remote Control Switch System 315Mhz 2-Key Transmitter with Receiver 3000m Long Range

Wireless Communication:RF
Use:Universal
Origin:Mainland China
Certification:NONE

Reference Title: 3000m Long Range for Dc 12V 2CH RF Wireless Remote Control Switch System 315 Mhz 2-Key Transmitter + Receiver
OOTDTY
Description:
Features:
and .
This is a wireless control.
The wireless signal can pass through walls, floors and doors.
You can turn on or turn off the receiver with transmitter (remote control) from any place within a reliable distance.
Application: Control Lights, TVs, Motors, Fans, Cameras, Video signals, signals, electrically operated Doors/ Locks/ for , etc.
Modes:
1)Toggle/Self-Lock: Press->On; Press again->Off
- Press one button for one for TIME is working/ON .press the same button again is stop/OFF.(1 channel switch(receiver) need 1 button remote control (transmitter).
2)Latched/Inter-Lock: Press->On; Press other button->Off
- Press one button is working/ON ,press another button is stop/OFF. ( 1 channel switch( receiver) need 2 buttons remote control (transmitter).
3)Momentary/Jog: Press and hold->On; Release->Off
- Keep pressing one button is working /ON. loosen your finger is stop/OFF. (1 channel switch(receiver) need 1 button remote control (transmitter)).
(Setting is Momentary, Change it by yourself.)
Learn Code and Remove Code:
1. Learn: press the learning code .the indicator from on to off, loosen your finger, press any button of the remote control, the indicator flash 2 times and off, it means you learn it successfully.
2. Remove: press the learning button about 8 seconds, the indicator turns on to off, it means the Code had been removed successfully.
Specifications:
Material: Plastic + Metal
Color: Black(Receiver) + Gray(Transmitter)
Size: (Approx.)
Receiver: 6.2×3.8×2cm/2.44×1.50×0.79in
Remote Control Transmitter: 13.4×4.2×2.5cm/5.28×1.65×0.98in
Channel: 2
Remote Control Distance: 0-3000m ( for IDEAL distance without any block and signal interfere, it would rise and fall about 10%-90% with the block and signal interference.)
Encode: Fixed code, soldering
Frequency: 315MHz
Power Supply: 9V (NOT included)
: Fixed code, soldering
Power Supply (Operating Voltage): for Dc 12V
Relay: 10A/250V AC, 10A/125V AC, 10A/30V for Dc, 10A/28V for Dc
Work Voltage Range of Relay: AC 110-240V or for Dc 0-28V
Operating Temperature: -40 to +80
Quantity: 1 Set (other accessories demo in the picture is not included)
Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

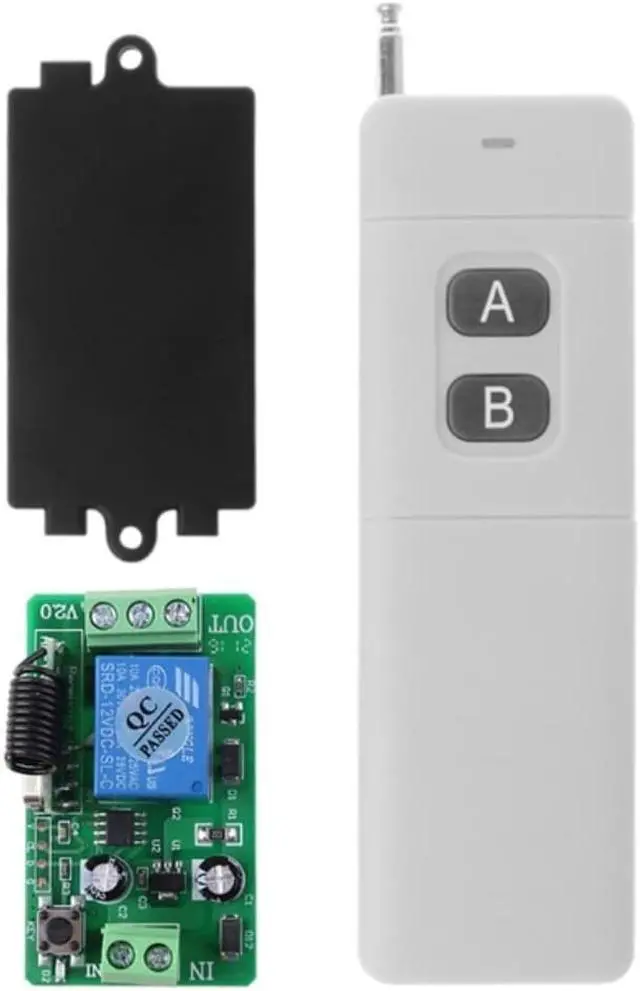

Package Includes:
1 X Remote Control Transmitter(Not including ) (No retail package)

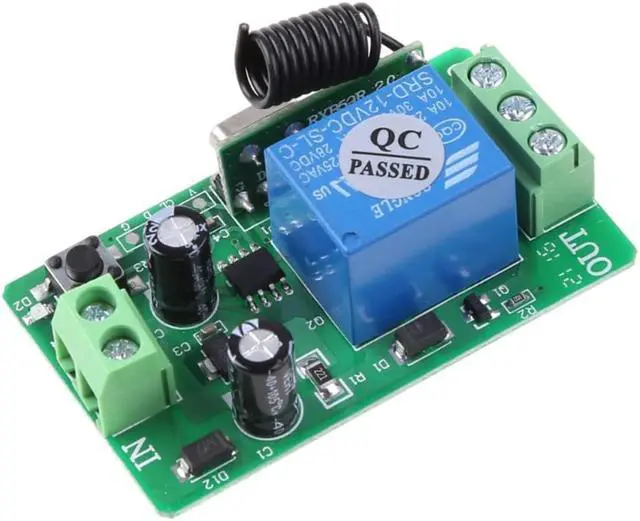

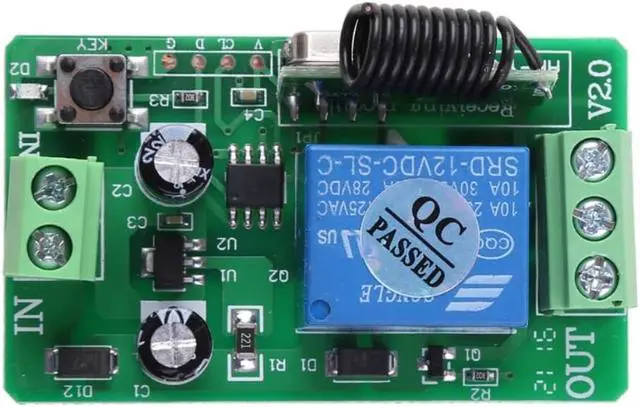

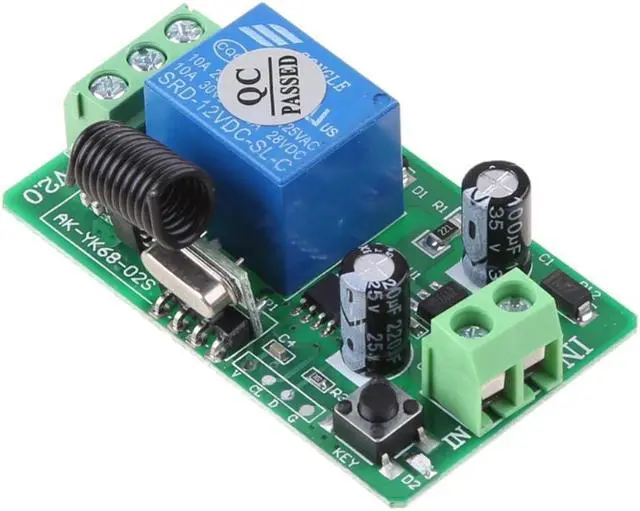

1 X Remote Receiver Module (Including for shell)
