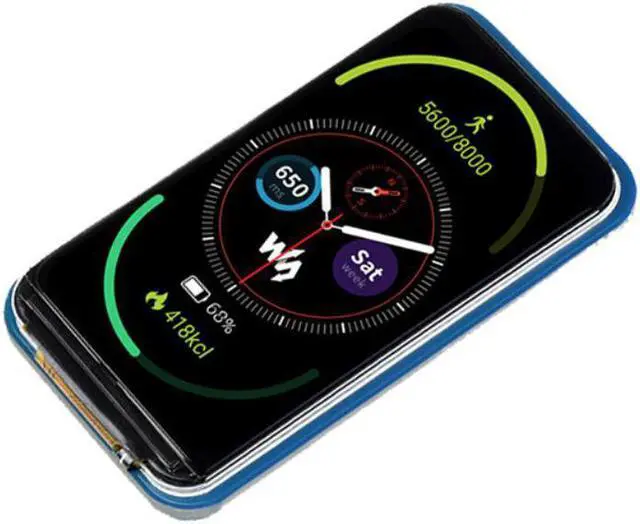

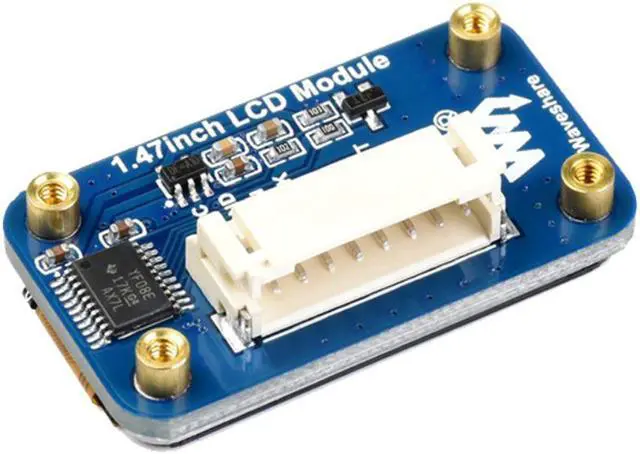

1.47inch Rounded Corners LCD Display Module 172×320 SPI 262K RGB Colors for Arduino Raspberry Pi Pico STM32
- 1.47inch Rounded Corners LCD Display Module 172×320 SPI 262K RGB Colors for Arduino Raspberry Pi Pico STM32
Overview
Specs
Reviews
Demo Board Type:ARM
Origin:CN(Origin)
Certification:CE
Specification
Operating voltage: 3.3V/5V
( Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly )
Controller: ST7789V3
Resolution: 172(H)RGB x 320(V)
Dimension: 17.39 x 32.35 mm
Pixel size: 0.0337Hx 0.1011Vmm
Display color: 262K color
Features
170 × 320 resolution, 262K RGB colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins
Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
Controlled Via SPI Bus
Supports Controller Boards Like Raspberry Pi/Arduino/STM32

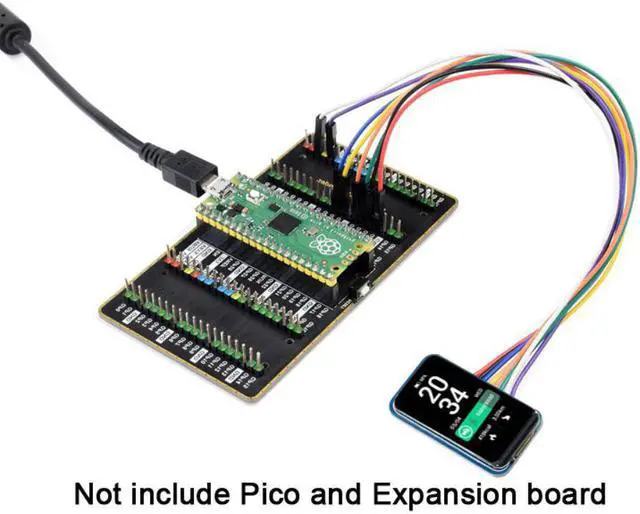

Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino Board
Usage examples
Outline Dimensions
Package Contains
1.47inch LCD Module x1
PH2.0 8PIN cable x1
Origin:CN(Origin)
Certification:CE
Specification
Operating voltage: 3.3V/5V
( Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly )
Controller: ST7789V3
Resolution: 172(H)RGB x 320(V)
Dimension: 17.39 x 32.35 mm
Pixel size: 0.0337Hx 0.1011Vmm
Display color: 262K color
Features
170 × 320 resolution, 262K RGB colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins
Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
Controlled Via SPI Bus
Supports Controller Boards Like Raspberry Pi/Arduino/STM32
Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino Board
Usage examples
Outline Dimensions
Package Contains
1.47inch LCD Module x1
PH2.0 8PIN cable x1
