EK-Loop DDC 4.2 PWM Motor Water cooling special water pump

Certification:NONE
Origin:CN(Origin)

Details

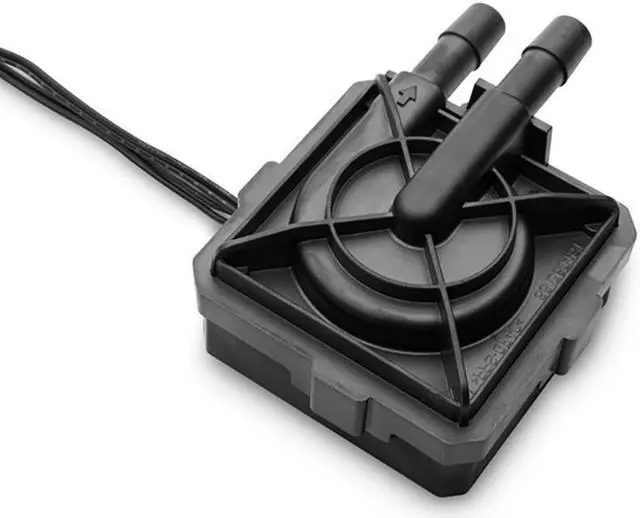

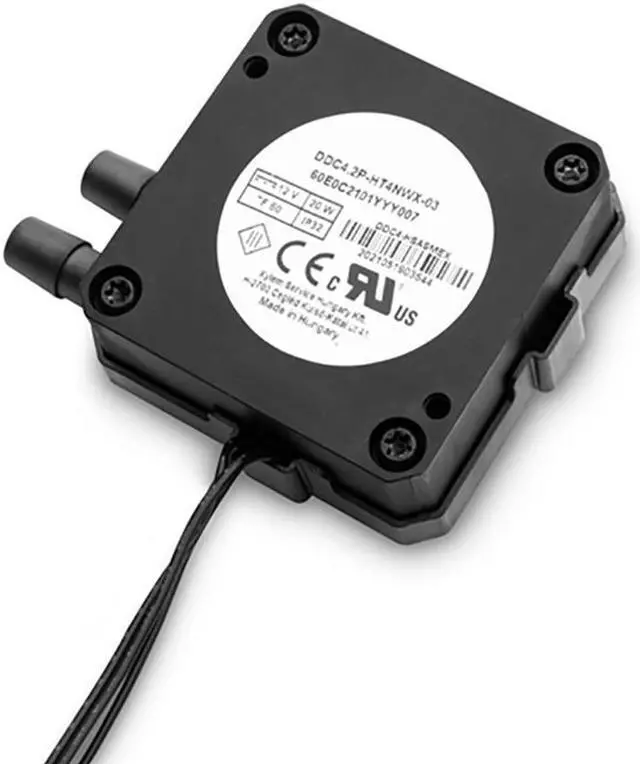

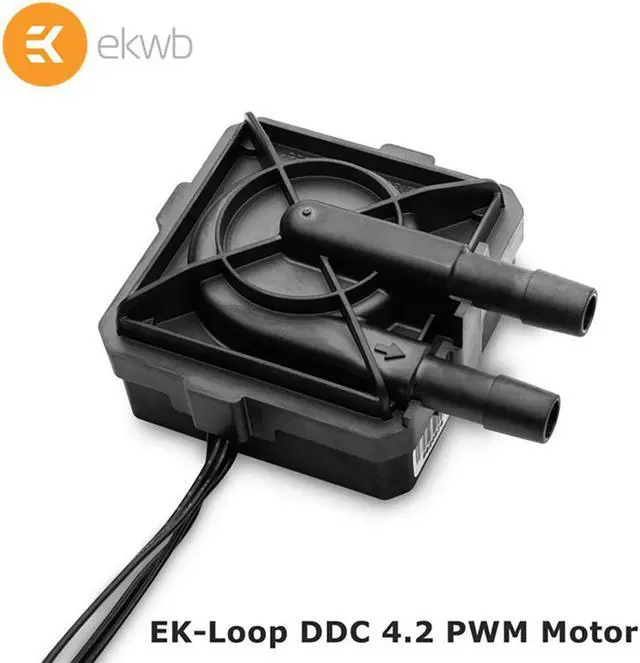

EK-Loop DDC 4.2 PWM Motor is a high-performance water pump with power management control (via PWM - pulse width modulation) of rotation speed through motherboard BIOS or a dedicated fan controller. The main difference to a DDC 3.2 PWM is the black cabling, SATA power connector instead of MOLEX, and 32-bit communication.
This pump features 3/8" (10mm) non-removable plastic barbs to support any
10mm ID tubing
and is compatible with any EK-Quantum Kinetic TBE DDC, and FLT DDC pump-res combo units. EK highly advises using a
Convection heatsink
to even further prolong the lifespan of this pump.
Despite a remarkably small footprint of 2.4" square, EK-Loop DDC 4.2 PWM features an astounding 5,2m of head to provide superior flow rates in today's most complex liquid-cooled systems. This pump is also a high-reliability, high-pressure industrial pump, featuring a 50,000 hour MTBF (5 year lifetime).
Its compact design, quiet and powerful motor make it ideally suited for heavy-duty cooling in environments where space is at a premium.
Technical Specifications:
- Dimensions (W x D x H): 90 x 62 x 38mm
- Motor: Electronically commuted ball bearing motor
- Rated voltage: 12V DC
- Power consumption: 18W
- Maximum head pressure: up to 5.2m
- Maximum flow rate: up to 1000L/h
- Maximum liquid temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector:  SATA power and 4-Pin PWM FAN connector for PWM / RPM readout
Made in the EU.
PLEASE NOTE:
DDC pumps are wet tested before . While they are dried out before packaging, it can occasionally happen that the pump is deliver still slightly wet.
This product should NOT be installed with any aluminum
Fluid Gaming
parts!
If no PWM signal is present, DDC pump runs at 100% RPM.
