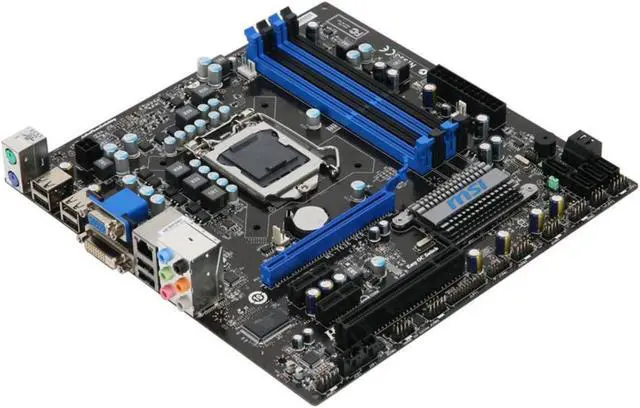

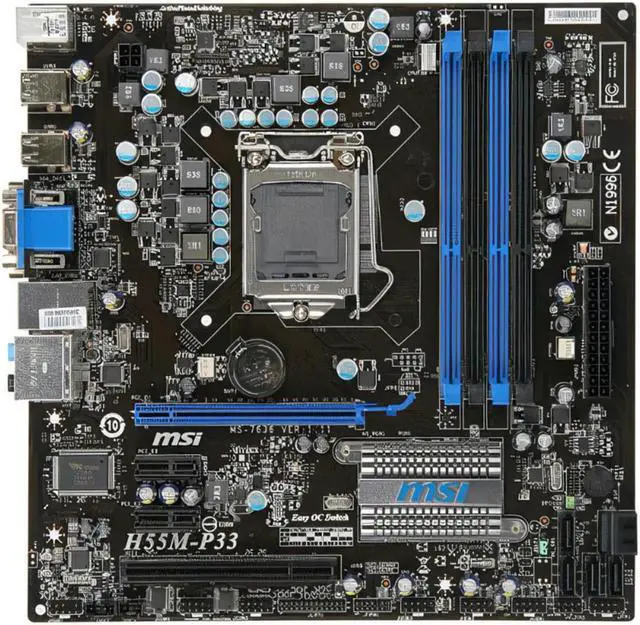

MSI H55M-P33 LGA 1156 Motherboard DDR3 Motherboard Intel H55 16GB SATA II VGA HDMI USB2.0 Micro ATX For Core i5-660 i5-9600K cpu

MSI Model:H55M-P33
Quality Certification:ce
Chipset:Intel Others
Socket Type:LGA 1156
Storage Interface Type:SATA 2
Onboard LAN:1x RJ45
Package:No
Model Number:H55M-P33
Application:Desktop
With CPU:No
Special Function:NONE
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR3
Usage Scenario:Office
Number of PCI:0
PCI - E standards:PCI - E 2.0
Origin:CN(Origin)
Number of PCIe x 8:0
Number of PCIe x 16:1
Number Of Memory Slots:4
Memory channel:Double
Number of SATA Ports:6
Form Factor:CeB
Support USB Type:USB 2.0
Launch Date:2007
Number of PCIe x 4:0
Number of PCIe x 1:1
Number of M.2:0
typ1:LGA 1156 Motherboard
typ2:H55M-P33
typ3:LGA 1156 Motherboard
typ4:DDR3 Motherboard

Motherboard chip
Integrated chip sound card/network card
Main chipset Intel H55
Chipset description Using Intel H55 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC889 8-channel audio chip
Network card chip Onboard Realtek RTL8111DL Gigabit network card
Processor specifications
CPU type Core i7/Core i5/Core i3/Pentium
CPU socket LGA 1156
CPU description Support Intel Socket 1156 interface processor
Memory specifications
Memory type 4×DDR3 DIMM
Maximum memory capacity 16GB
Memory description Support dual-channel DDR3 2133 (overclocking)/2000 (overclocking)/1800 (overclocking)/1600 (overclocking)/1333/1066MHz memory
Storage expansion
PCI-E slot 1×PCI-E X16 graphics slot
2×PCI-E X1 slot
PCI slot 1 × PCI slot
Storage interface 6×SATA II interface
I/O interface
USB interface 12×USB2.0 interface
Video interface 1×VGA port, 1×DVI port, 1×HDMI port
Power connector One 4-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, audio interface, PS/2 mouse, PS/2 keyboard interface
Board type
Motherboard board type Micro ATX board type
