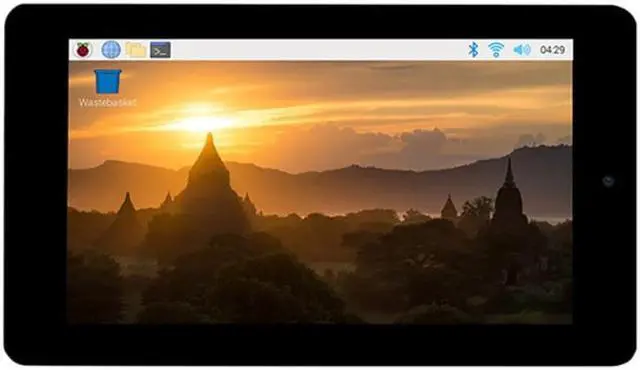

Waveshare 7-Inch DSI LCD Display for Raspberry Pi 800X480 Touch-Screen 500W Front Camera Display Supports 5-Point Touch

Origin:CN(Origin)
Display Size:7"
Compatible Audio & Video Equipment Style:Professional Audio Equipment
Certification:NONE
Product name:7inch DSI LCD display
Photosensitive chip:OV5647
CMOS size:14 inch
Pixel:5 million
Aperture:F2.4
Focal length:3.89mm
Diagonal field of view:72.9°
Distortion:1.5
Picture:Static picture resolution of 25921944 pixels
Video:1920x1080p30, 1280x720p60, 640x480p60, 640x480p90

Waveshare 7-Inch DSI LCD Display for Raspberry Pi 800X480 Touch-Screen 500W Front Camera Display Supports 5-Point Touch

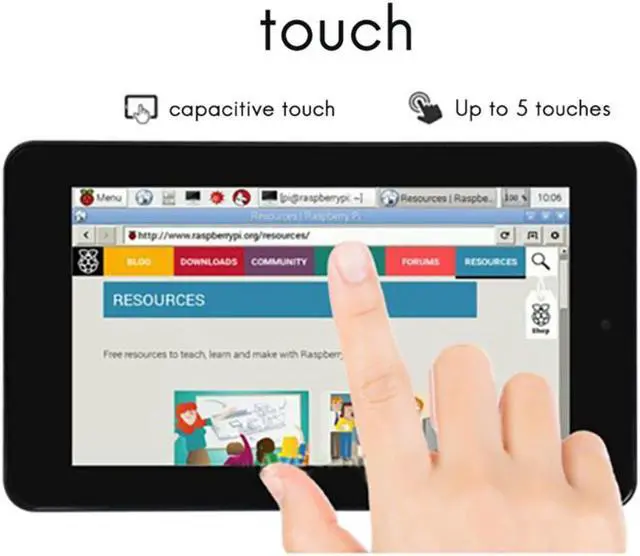

1. 7-inch Touch-Screen + 5 million pixel front camera, equipment and system support: For Raspberry Pi 4
2. Support for Raspbian, 5-points Press, no driver
3. Support for Ubuntu / Kali / WIN10 IoT, single-point Press, no driver
4. Use the ribbon cable connected to the DSI port to connect to the Raspberry Pi board.
5. The adapter board is used to power the display and convert the parallel signal from the display to the serial (DSI) port on the Raspberry Pi.

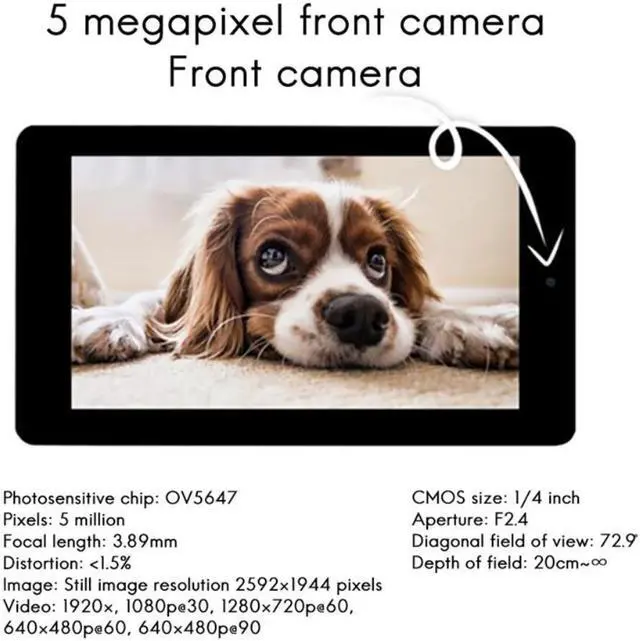

Product name: 7-inch DSI LCD display
Photosensitive chip: OV5647
CMOS size: 1/4 inch
Pixel: 5 million
Aperture: F2.4
Focal length: 3.89mm
Diagonal field of view: 72.9°
Distortion: 1.5%
Picture: Static picture resolution of 2592*1944 pixels
Video: 1920x1080p@30, 1280x720p@60, 640x480p@60, 640x480p@90
size:192.96x110.76mm
Material:plastic
colour:black
Package Contents:
1 * 7 inch LCD display
2 * FPC line 15PIN 1.0 pitch about 50mm (reverse direction)
1 * FPC line 15PIN 1.0 pitch about 120mm (reverse direction)
1 * 2PIN Dupont line
1 * Copper pillar package
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
