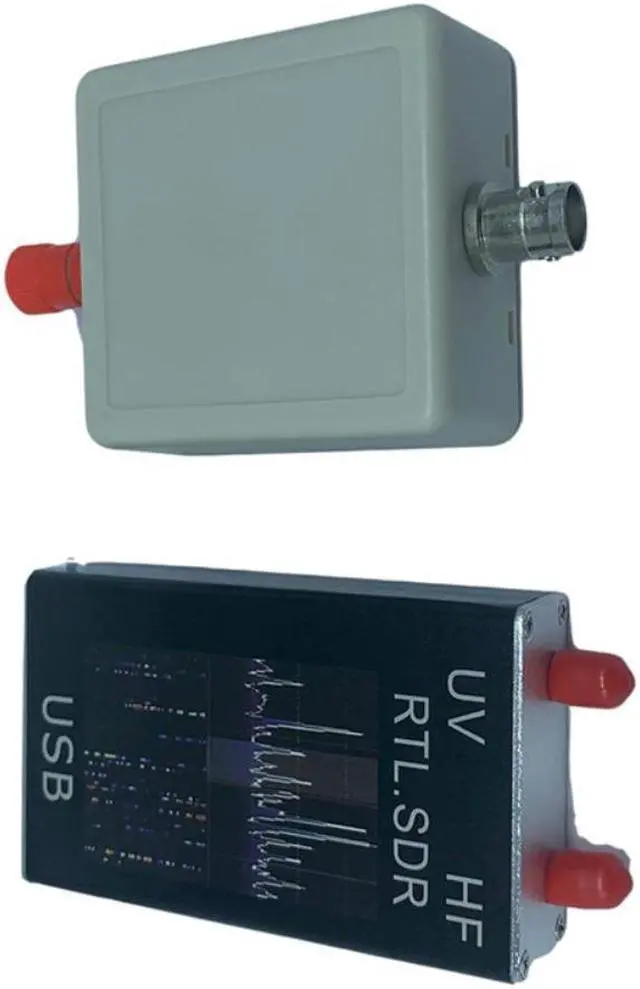

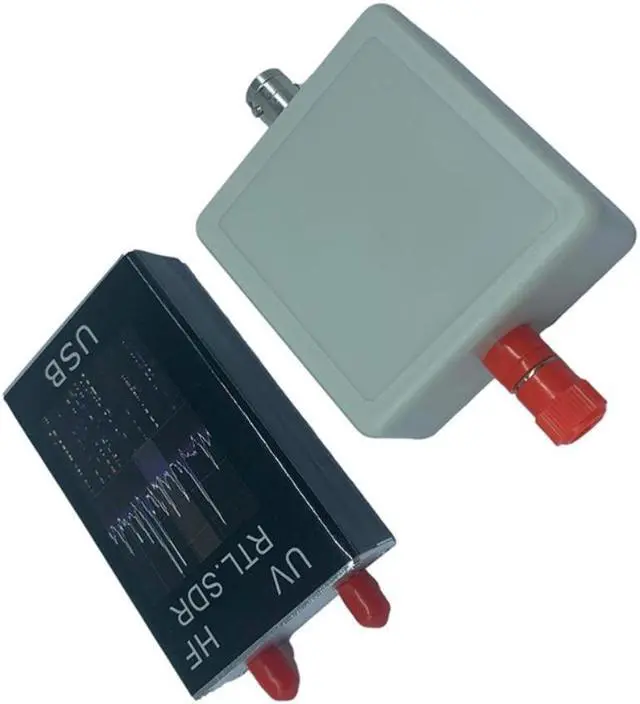

100Khz-1.7Ghz Software Radio Full Band SDR USB RTL-SDR Receiver Aviation Shortwave Broadband

Origin:CN(Origin)
Certification:NONE

100Khz-1.7Ghz Software Radio Full Band SDR USB RTL-SDR Receiver Aviation Shortwave Broadband
1. R820T2 tuner has slightly better sensitivity than R820T, lower noise floor and higher signal-to-noise ratio. It can work more stably at frequencies around 1.5 GHz.
2. You can connect computers, Android phones and other devices to use SDR software to receive 100KHz-1.7GHz electromagnetic waves and support AM, FM (NFM, WFM), CW, DSB, LSB, USB demodulation. Can listen to short-wave single-sideband communications, FM radio, walkie-talkie calls, aviation bands, etc. The analog sub-tone and digital sub-tone can be cracked by software.
3. You can set up automatic search and scan. You can use software to crack the ID of common digital walkie-talkies and demodulate the voice signal.
4. Directly adopt the technical characteristics of RTL.SDR. Provide the whole machine is connected and ready to use. Use RTL2832U+R820T2 chipset
5. The r820t2 tuner has slightly better sensitivity than r820t, lower noise floor and higher signal-to-noise ratio. It can work more stably at frequencies around 1.5 GHz. 100KHz-1766MHz, working frequency range.
Covers all shortwave amateur bands.
VHF and UHF frequency bands cover from 24-1766MHz.
The widest sampling rate is 3.2MHz. (2.8MHz stable).
The receiving modes include NFM, FM, DSB, USB, LSB and CW.
Note: Depends on the SDR software used.
The 8-bit ADC sampling provides up to 50 decibels of dynamic range.
50 ohm input impedance.
Double SMA gold-plated antenna connector.
Aluminum shielding shell, shell blue oxide layer, engraving, fine processing appearance.
Use software
Independent antenna input port HF and UV
USB computer connection (powered via USB)
Very high dynamic range
colour:Black
Material:Metal + plastic
Package Contents:
1 set x receiver
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
