LQSC TDA7850 2.1 Channel Power Amplifier Board 2X80W with Bluetooth Decoder Board

Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Speakers
Certification:NONE
Type:VIDEO

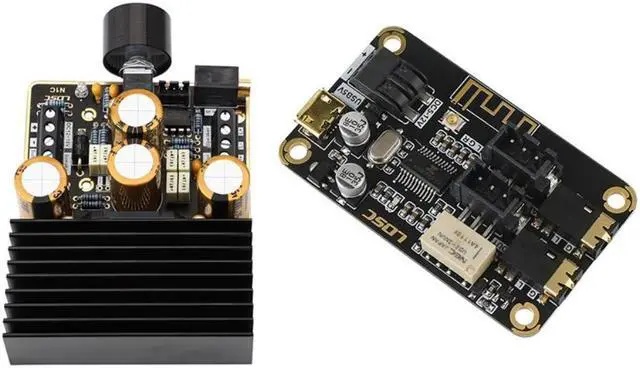

LQSC TDA7850 2.1 Channel Power Amplifier Board 2X80W with Bluetooth Decoder Board
2 Set Electronic Accessories: 1 x mp3 bluetooth decoder board & 1 set x Class AB 2.1 channel power amplifier
BT Bluetooth module Ver: 1.2
Input voltage: DC5V-12V
Bluetooth version: 4.2
Bluetooth name: LQSC_BT
Material:PCB+metal
colour:black

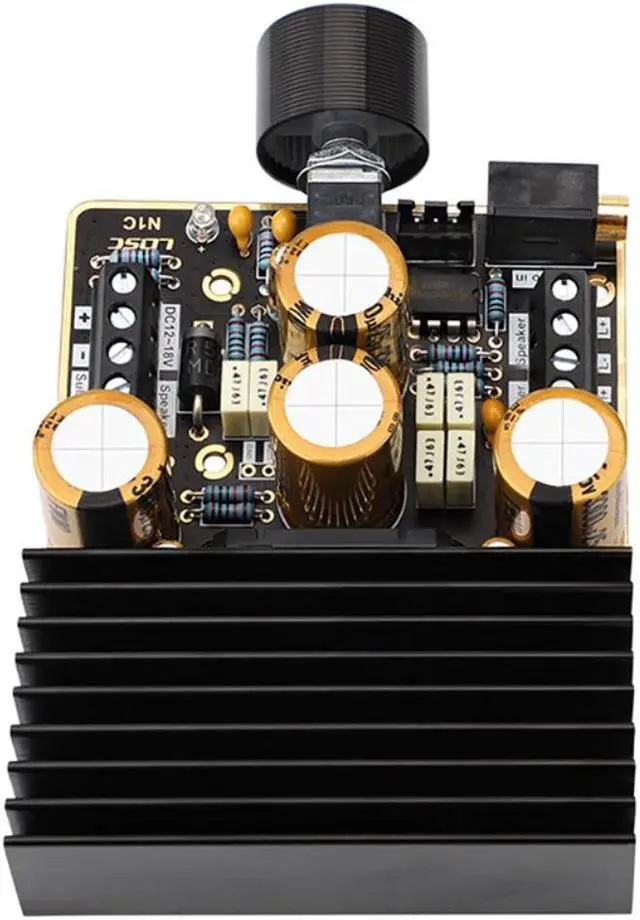

Class AB 2.1 channel power amplifier:
Product name: Class AB 2.1 channel power amplifier
Working voltage: DC9-18V
Output power: maximum 2x80W stereo (18V/4 ohm) and 1X120W pure bass (18V/2 ohm)-can be connected to 2/4/6/8 ohm speakers
Input mode: 3.5mm audio line input or 3P-2.54mm terminal input
Protection function: power input reverse protection, short circuit
protection, overcurrent protection, overheat protection
Overall (including heat sink): 72.36mmx96mx27mm
Potentiometer handle opening: 7mm
Installation hole spacing: 25.4mmx48.26m (compatible with Bluetooth module spacing)
Mounting hole size: M3
size:72.36x66.65mm

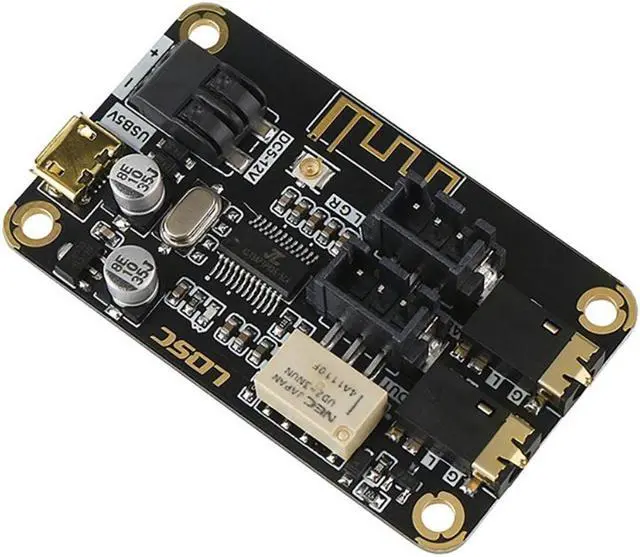

mp3 bluetooth decoder board:
Product name: mp3 bluetooth decoder board
Working temperature: -40Celsius to 85Celsius
Full patch process
Wide range of working voltage
Power reverse protection
Dual AUX input terminals (3.5mm and 2.54mm 3P)
Dual audio output terminals (3.5mm and 2.54mm 3P)
An external antenna (suitable for installation in a metal box)
LED indicator description
Fast flashing: waiting for connection
Slow flashing: audio is playing
Steady on: connected
size:55.12x32.26mm
Package Contents:
1 x mp3 bluetooth decoder board
2 x 2.54mm 3P audio shielded cables
2 x 2.54mm 3P socket terminals
1 x power amplifier board
Only the above package content, other products are not included.
