Switcher 6 In 2 Out Or 2 In 6 Headphone Speaker Switch Out Stereo Sound Source Signal Selection Switch, Interface With 3.5Mm Des

Compatible Audio & Video Equipment Style:Amplifier
Origin:CN(Origin)
Certification:NONE
Package:Yes

Switcher 6 In 2 Out Or 2 In 6 Headphone Speaker Switch Out Stereo Sound Source Signal Selection Switch, Interface With 3.5Mm Des
6 input 2 output or 2 output 6 input stereo audio signal selection switcher, with RCA port design
The produce adopts passive design, with direct insertion, and has lossless switched transmission of input and output signals,
The product is mainly used to select and switch among a variety of stereo signal input and output through a common set or multiple sets of equipment, that is, a variety of stereo signal sources of devices, such as TV audio, MP3 player, CD player, video game, mobile phone, tablet, computer, record player, need to be output on the amplifier or on active speakers,
The 6-channel audio signal selection switcher solves complicated line plug in and plug out, which uniformly connects device input signal sources to the switcher for easily selection.
The product uses standard 3.5mm interface design for input and output, and uses precise 6-level and 2-level manual switch design for the switcher,
Product parameters:
Power supply: passive design, direct insertion
Input and output impedance: 10K ohm - 50K ohm
Frequency response: 20 - 20 kHz
Distortion: Less than 0.002%
Insertion loss: Less than 0.01dB
Signal gain: 0dB
Signal to noise ratio S/N: more than the 98dB

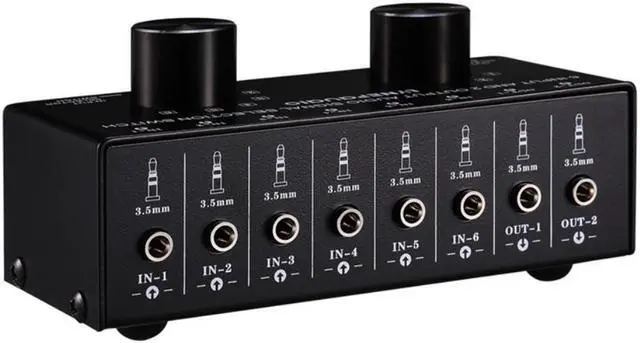

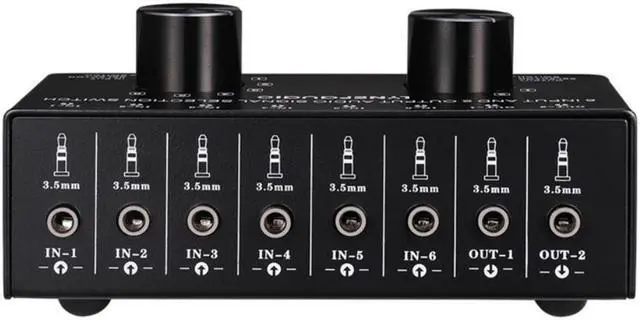

Input port: standard 3.5mm interface
Output port: standard 3.5mm interface
Number of input channels: 6-channel stereo input (reverse 6-channel switched output)
Number of output channels: 2-channel stereo output (reverse 2-channel switched input)
Control switch: 6-level and 2-level precise manual selection switch
Input switching channel: 6 channels
Output switching channel: 2 channels
Colour:black
Material:metal

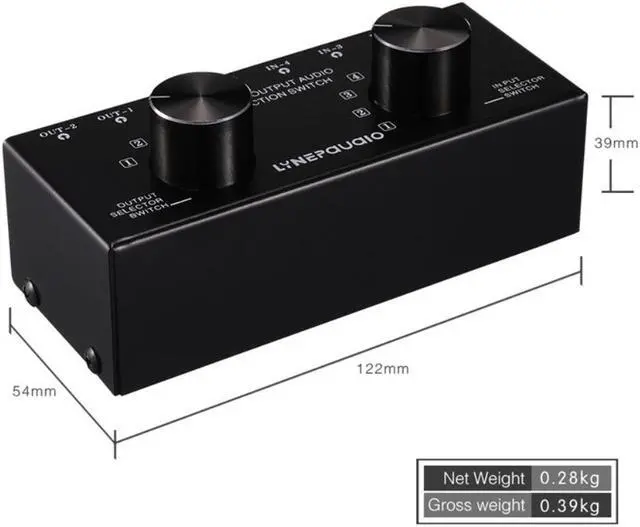

Size:122*54*39mm
Package Contents:
1 * 6 input 2 output or 2 input 6 output stereo audio signal selection switcher
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
