2 Pcs Fiber Optical Fitting: 1 Pcs Fiber Optic Cable Tester Fiber Optic Visual Fault Locator & 1Pcs FTTH SC UPC 1X2 Plc Singlemo

Origin:CN(Origin)
Certification:NONE

2 Pcs Fiber Optical Fitting: 1 Pcs Fiber Optic Cable Tester Fiber Optic Visual Fault Locator & 1Pcs FTTH SC UPC 1X2 Plc Singlemo
2 Pcs Fiber Optical Fitting: 1 Pcs Fiber Optic Cable Tester & 1Pcs FTTH Fiber Optical Splitter
Short wave setting memory function,can remember the wavelength at shutdown,Portable optical power meter and red light pen integrated machine,easy to solve,fiber optic connection,fiber test,light attenuation test
Three backlight designs,constant light mode,smart mode,off mode,You can switch the test unit by yourself,nw+dBm,db+dBm.The result shows the conversion unit:10 log(mw)=(dBm)
Red closed front metal head can replace ceramic core by itself
Wavelength range:800-1700;Connector:FC/SC;Measuring range:Type A-70 to 3,Type B-50 to +20;Uncertain:+/- 5%;Display resolution:linear display 0.1%,logarithm display 0.01dBm;Red light working wavelength:650nm;Red light power:15mW;Working temperature (Celsius):-20 to +70
material:plastic
Fiber Optic Cable Tester:
Power:1.5V AAA *3
Storage temperature (Celsius):-30 to +80;Automatic shutdown time (min):10;continuous working time (h):greater than equal 48;
Color:orange
Size is:190*100*48mm

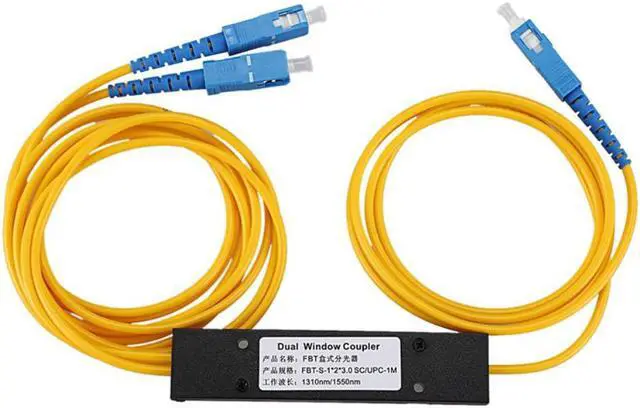

FTTH SC UPC 1X2 Fiber Optical Splitter:
1. Adopt carrier-grade standards and have strong stability
2. Evenly splitting: distribute the fiber network signal evenly to each line.
3. Low insertion loss: Loss is not sensitive to the wavelength of light and can meet the transmission requirements of different wavelengths.
Product model: SC/1-2
Product function: optical signal coupling, branching and distribution
Working wavelength: 1310/1550nm
Working temperature: -40°C ~ 85°C
Number of interfaces: 1+2
Interface model: SC-SC
Line length: 2m
Color: blue + yellow

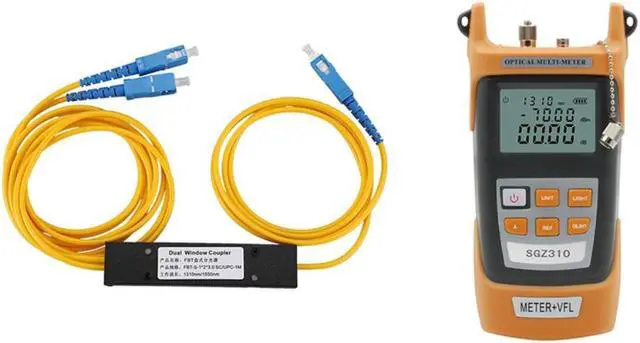

Package Contents:
1 * Fiber Optic Cable Tester
1 * FTTH SC UPC 1X2 Fiber Optical Splitter
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
