PCI-E Serial Port Card PCI-E To 4 Serial Port RS232 9-Pin Industrial Control 4 Port Expansion Card AX99100 with Line

USB Type:Standard
Certification:NONE
Use:MP3 / MP4 Player
Origin:CN(Origin)
Name:sata cable
Model:pec4s0pa01
Interface:pcee 1x (compatible with 1X, 4x, 8x, 16x)
Main control chip:Asix ax99100
Output interface:DB25 to 4 ports DB9 R232
2U small chassis:support, with half height baffle
Working environment:3070
System support:WinXP win7 win8 win10 Linux
Feature 1:sata cables
Feature 2:sata card

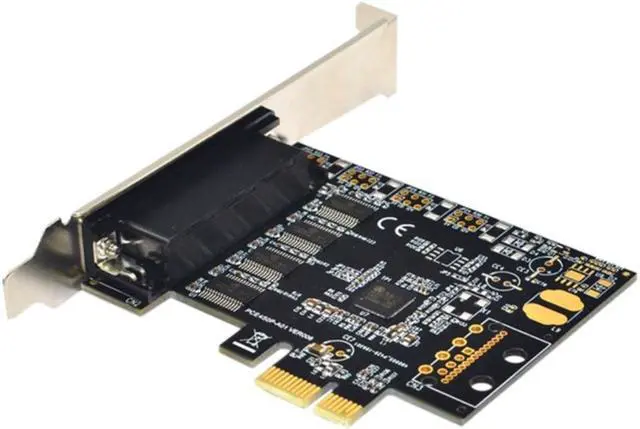

PCI-E Serial Port Card PCI-E To 4 Serial Port RS232 9-Pin Industrial Control 4 Port Expansion Card AX99100 with Line
PCI-E to 4-port R232 expansion card

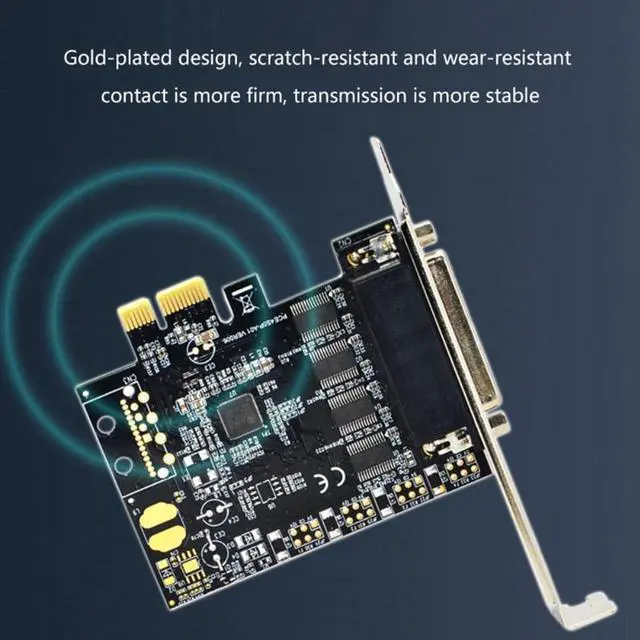

Gold finger thickened gold plating design, scratch and wear resistant, more firm contact and more stable transmission
The powerful chip adopts aszx AsiaInfo master control, with high-speed and stable transmission
Supporting 4-port RS-232 serial port cable, it can connect a variety of serial port devices, such as PC, terminal, modem, printer, scanner, etc. the data rate of each port can reach 115200kbps
Pce4sop-a01 is a universal-purpose PCE serial port card, which is designed for POS, ATM and other applications. It can be used for industrial automation system manufacturing and system integration. Pceasop. - A01 provides four RS232 serial ports, which can connect a variety of serial port devices, such as PC, terminal, modem, printer, scanner, etc.
Model: pec4s0p-a01
Interface: pce-e 1x (compatible with 1X, 4x, 8x, 16x)
Main control chip: Asix ax99100
Output interface: DB25 to 4 ports DB9 R232
2U small chassis: support, with half height baffle
Working environment: - 30-70
System support: WinXP win7 win8 win10 Linux
Single-lane (X1) PCI Express End-point Controller with PHY integrated
Compliant with PCI Express 2.0 Gen 1
Compliant with PCI Express card specifications
Compliant with PCI Power Management 1.2
Supports four PCI Express functions
Supports both legacy and MSI Interrupt
Supports ASPM Power Management
Serial Port Interface
Dual or Quad UARTs
Bi-directional speeds up to 25 Mbps per port
Full Serial Modem Control
Supports Hardware, Software Flow Control
Supports 5, 6, 7, 8 and 9-bit Serial format
Supports Even, Odd, None, Space and Mark parity
Supports Custom baud rate by internal PLL or external clock
Supports On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
Supports remote wakeup and power management features
Serial Port transceiver shutdown support
Supports multi-drop application for 9-bit mode
Supports DMA burst transfer
colour: black
Material: metal
Size: 12.5x10.5x2.5CM
Package Contents:
1 x R232 expansion card
1 x Drive CD
1 x DB25 to 4 DB9 data cables
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
