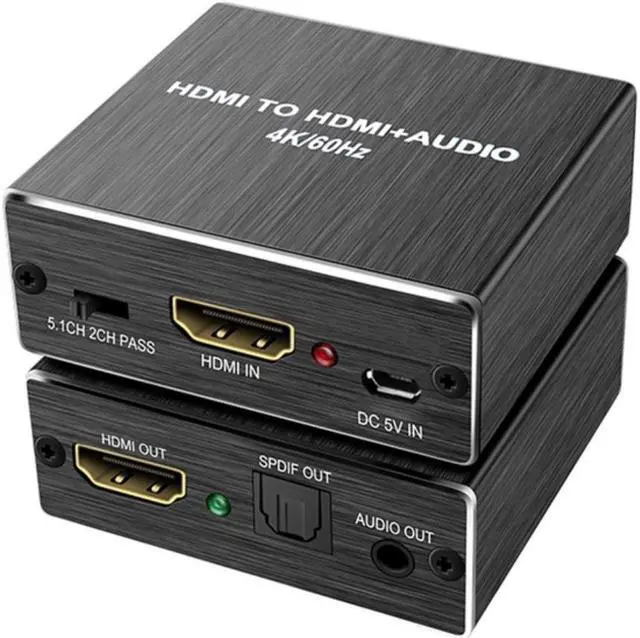

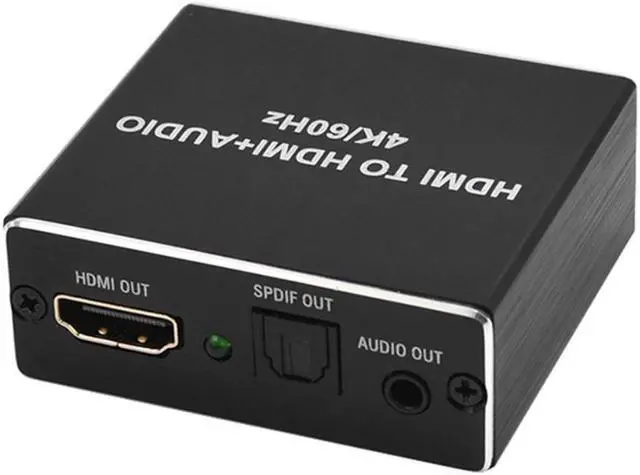

4K 60Fps Audio Extractor HDMI-Compatible Stereo Extractor Converter Optical TOSLINK SPDIF+3.5Mm Audio Splitter Adapter

Certification:NONE
Origin:CN(Origin)
Connector A:Mini Displayport(Mini DP)
External Power Source:No
Connector B:DP/Mini DP
Gender:Male-Female

4K 60Fps Audio Extractor HDMI-Compatible Stereo Extractor Converter Optical TOSLINK SPDIF+3.5Mm Audio Splitter Adapter

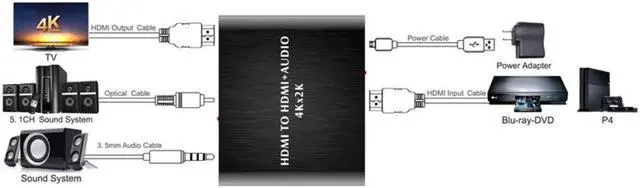

Thisaudio extractorcan beconnected between the source device(DVD player,Blu-ray player,network player,set-topbox, for PS2, PS3, Xbox360, PC, etc.)and thedisplaydevice (TV,HD monitor,projector)
It can synchronously separateoneoptical fiber signaland connect one stereo channel tothesoundsystem to obtainhigh-quality audio signals.Support audioformats suchasAC-3, DTS, LPCM.
Support1 HDMI input port,Support1 HDMI output port,Support1 optical fiberdigital audio output port
Support1 stereo audio outputport, Supportinput resolutionup to4K/60fps.
Support3D, HDR.YUV4:4:4, SupportHDCP2.2, SupportAC3, DTS,LPCM and otherdigital audio formats, Audiooutputsupports 3EDIDselection modes (2CH/5.1CH/ PASS), Losslesssignals
HDCPVersion:HDCP2.2
Input/Output Resolution: 1080p/60fps, 4K/30fps,4K/60fps
Deep color: : 4K/60fps-YUV444-8bit; 4K/60fps-YUV422-12 bit 2160p, 10/12 bits, 50/60Hz
HD MaxBandwidth: 600MHz
HD Max BaudRate: 18Gbps InputOutputTMDSSignal:0.5-1.5Vp-p(TTL)
Input Output DDC Signal:5Vp-p(TTL)
DACsampling frequency: 32-192KHz
DACbit rate: .16-24Bit
RCAanalogoutput (1KHz@0dB):1V RMS
Signal tonoiseratio@0dB(CC1R/ARM): greater than equal 90dB Distortiondegree:. less than equal 0.1%
Frequency response: 20HZ-20KHz HDMI
Input Cable Distance: less than equal 3mAWG26 HDMI Standard Cable
HD Output Cable Distance: less than equal 3mAWG26 HDMI Standard Cable
Max WorkingCurrent: 400mA
PowerAdapterFormat: AC 100V-240V 50/60HZ,DC 5V/1A
OperatingTemperature Range: -10-+55
size:5.8 x 4.97 x 2.2cm
Material:Iron shell
colour:black
Package Contents:
1 x Audio Extractor
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
