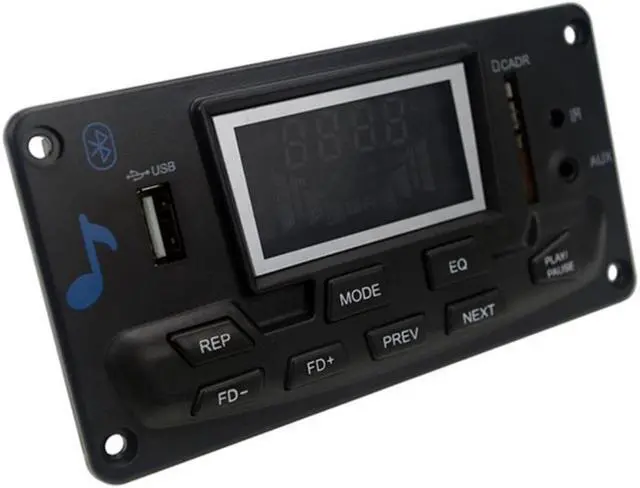

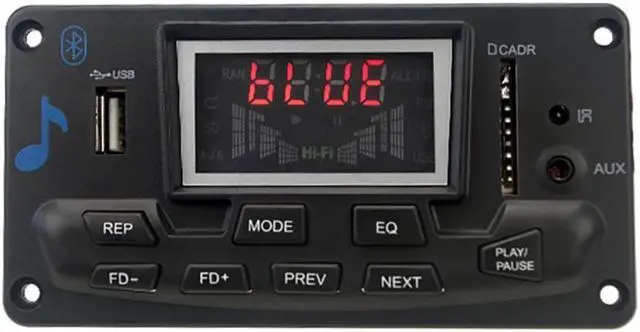

Bluetooth Audio Decode Board,12V Bluetooth APE Decoding MP3 Lossless Audio Module Spectrum Display FM Radio

Type:Desktop
DSD Sampling Frequencies:2.8224 MHz (DSD64)
Certification:NONE
Inputs:USB Type-C
PCM Sampling Frequencies:44.1 kHz
Material:Metal
Origin:CN(Origin)
Outputs:Balanced Out
PCM Word Length:24-bit
Power type:DC912V power supply (current more than 1A)
Output amplitude:greater than 800MV
Rated power consumption:USB playback current is less than 120MA, other states are less than 80
Operating temperature:20 Celsius 60 Celsius

Bluetooth Audio Decode Board,12V Bluetooth APE Decoding MP3 Lossless Audio Module Spectrum Display FM Radio
1. Support stereo Bluetooth speaker function, mobile phone and other devices can send music to speakers (A2DP) via Bluetooth. Support the speaker terminal to switch the up and down songs through the Bluetooth control mobile phone and other devices, adjust the volume. Bluetooth is based on CLASS2 power level, adopts Bluetooth 4.2 specification, compatible with Bluetooth 3.0 and below, and the transmission speed can reach 3Mbit/s.
2. Supports playing music on SD/MMC Card and U disk. The music formats are: MP3, WMA, APE, FLAC, WAV (excluding license). Support FM, the frequency band is: 87MHZ-108MHZ. Support AUX input, ie external audio source can access the speaker through AUX and adjust the volume on the speaker. Support speaker status broadcast.
3. Support function switching hotkey (one button in Card, u disk, AUXIN, FM, Bluetooth playback) (MODE button on the remote control is the function switch button). Support firmware encryption. Support USB/SD upgrade. FAT16, FAT32, ExFAT/Fat64 file system support. Support directory level: 8 level subdirectories
4. Number of supported files: the number of files is not limited to a single directory, and the total number of music files is less than 9999. Support SD/MMC/SDHC. Support USB2.0, fully compatible with USB1.1. 32 level volume. Support background Bluetooth, play card/U disk music and FM in case of Bluetooth connection

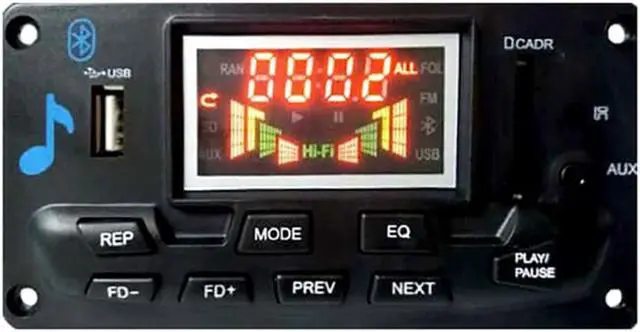

5. Support Spp remote control, that is, the phone can support the remote control function of the speaker after installing the APK or APP. DC input for 9V to 12V power supply. Higher security: anti-power reverse design, even if the power is reversed, it will not burn the product. Support Bluetooth call function. LED digital tube indicates working status and playing time, any state is clear according to the size of the music.
Power type:DC9-12V power supply (current more than 1A)
Output amplitude: greater than 800MV
Rated power consumption: USB playback current is less than 120MA, other states are less than 80MA
Operating temperature: -20 Celsius -60 Celsius
colour:Black
Material:ABS
size:120 x 63MM
Package Contents:
1 x Decoder
1 x Remote Control
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
