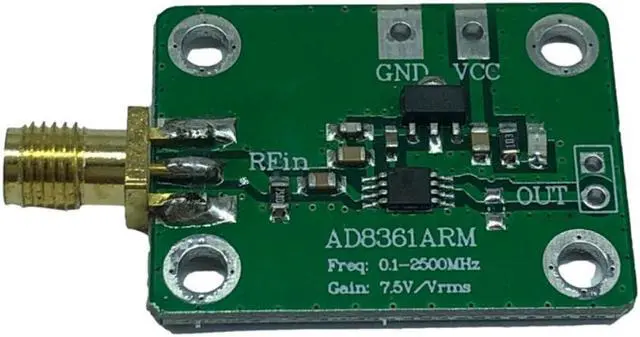

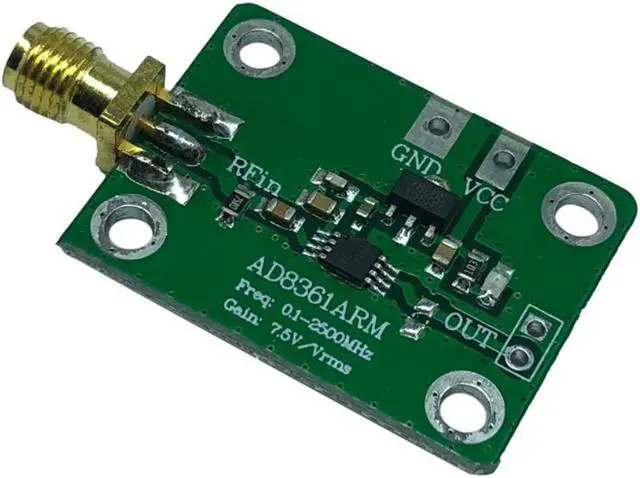

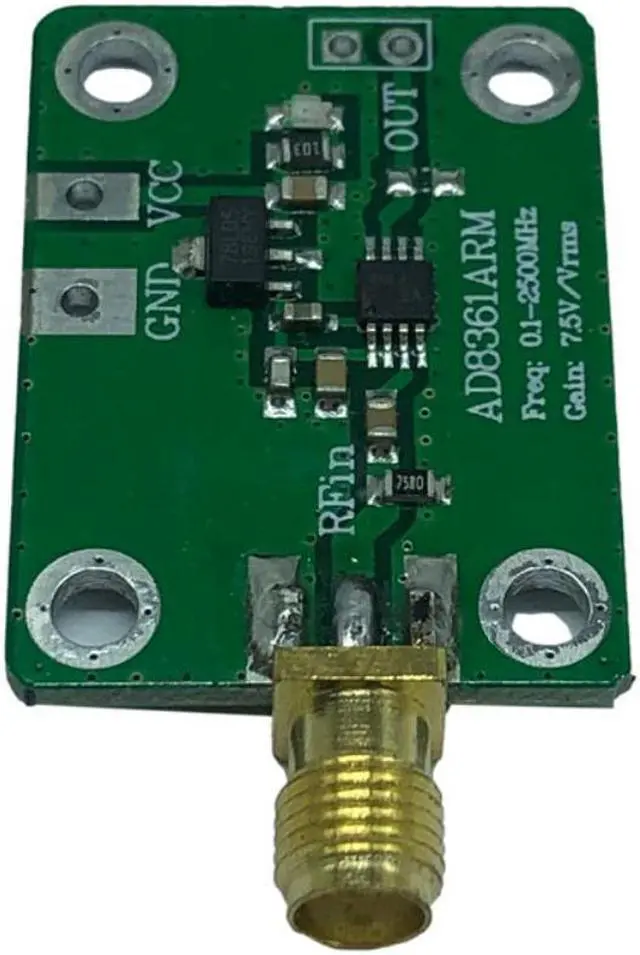

AD8361 AM Microwave Detector 0.1-2.5GHz Detector Amplitude

Certification:NONE
Origin:CN(Origin)
Maximum Power Per Channel:6W
Condition:
Type:Logic Ics

AD8361 AM Microwave Detector 0.1-2.5GHz Detector Amplitude
AD8361 is mainly used for real power measurement of simple and complex waveforms, especially for peak factor (peak-to-root mean square ratio) signals, such as CDMA and W-CDMA. AD8361 has three operating modes, which support multiple ADC requirements:
1. Grounding mode of reference voltage source with zero source.
2. Internal reference voltage source mode can offset the output to 350 mV above the ground level.
3. Providing a reference voltage source mode, the output can be biased to VS/7.5.
Technical Indicators
1. Calibrated RMS Response
2. Excellent temperature stability
3. Input range up to 30 dB (2.5 GHz)
4. Maximum input: 700 mV rms, 10 dBm (50 resistance)
5. +0.25 dB linear response (2.5 GHz)
6. Single power supply: 2.7 V to 5.5 V
7. Low power consumption: 3.3 mW (3 V)
8. Fast shutdown mode: less than 1 mu A
size:55x45x20mm
Material:PCB
colour:green
Package Contents:
1 * Microwave Detector
Only the above package content, other products are not included.
