Full-Band MW FM SW Radio Receiver Module Digital Clock LED Display 87-108MHz Frequency Modulation Station Auto Storage

Certification:NONE
Origin:CN(Origin)
Application:DIY radio, Outdoor travel, Amateur leisure
Colour:As shown
Material:PCMetal

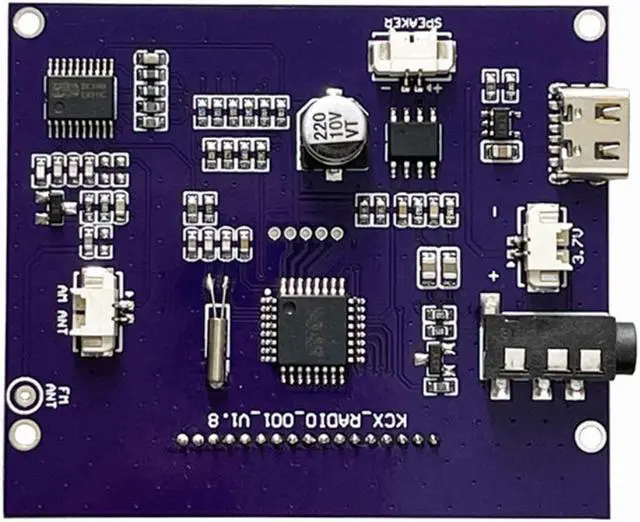

Full-Band MW FM SW Radio Receiver Module Digital Clock LED Display 87-108MHz Frequency Modulation Station Auto Storage
Dual channel stereo
FM/MW/SW Frequency range
2W*2 Amplifier

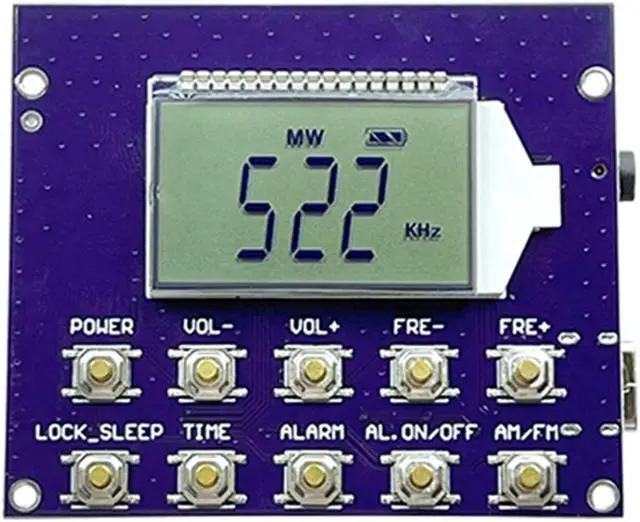

LCD professional display screen
Radio storage
Product name:FM MW SW Wireless Radio Receiver Module
Work Voltage:DC 3.7V
Display Backlight:Amber
FM Frequency Range:87MHz-108MHz
MW Frequency Range:522KHz-1620KHz
SW Frequency Range:4.75MHz-21.85MHz
Output power(Speaker):8ohm 2W*2
Output power(Headset):100mW*2
Work Temperature:-20Celsius~85Celsius
Work Humidity:0%~95%RH
Module Size:52x39x10mm
FM/MW/SW Features:
FM: Frequency Modulation Broadcast.
MW:Medium Wave.
SW:Shortwave.
Function and Operate:
Power Switch(POWER)
Adjust Volume(VOL+/VOL-)
Adjust Frequency(TUNING_UP/TUNING_DOWN)
Sleep Switch: Automatic Shutdown(LOCK_SLEEP)

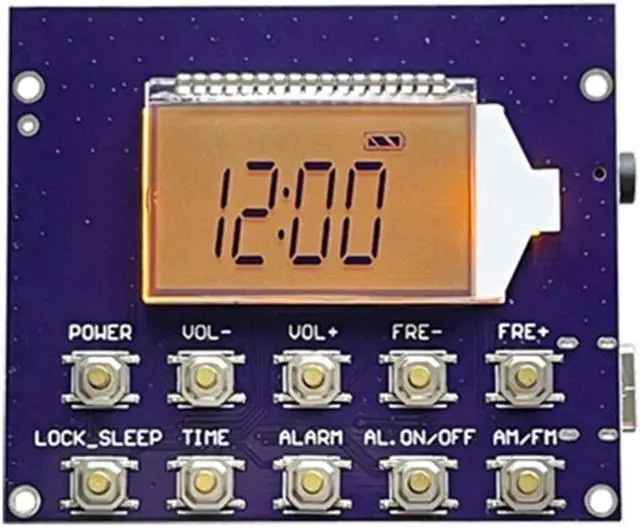

Set Time(TIME)
Set Timing Startup Time(ALARM)
ON/OFF Timing Startup Time(AL_ON/OFF)
Select Band(AM/FM)
Scan Storage Stations
Playing Storage Stations
Application:DIY radio, Outdoor travel, Amateur leisure
Colour:As shown
Material:PC+Metal
Package Contents:
1 x FM MW SW Wireless Radio Receiver Module
1 x Magnetic Rod Antenna
3 x 10cm 2Pin/1.25mm Wire
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
