2X Hands-MP3 Player Decoder Board 2 x 3W Amplifier DC 5V MP3 WMA Wireless Bluetooth 5.0 Decoder Board Audio Module

Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Digital-to-Analog Converter (DAC)
Certification:NONE
Type:AUDIO
External Memory:Yes
Audio Format Support:MP3, WAV, APE, FLAC, WMA
Balanced Out:Yes
Function:Voice Recorder,FM Radio,Bluetooth
Style:Car MP3
Operation Mode:Contact Tone
Signal Noise Ratio:3dB
Dimensions (WxHxD):85 32 MM
Bluetooth:Yes
Have Speakers or not:No

2X Hands-MP3 Player Decoder Board 2 x 3W Amplifier DC 5V MP3 WMA Wireless Bluetooth 5.0 Decoder Board Audio Module

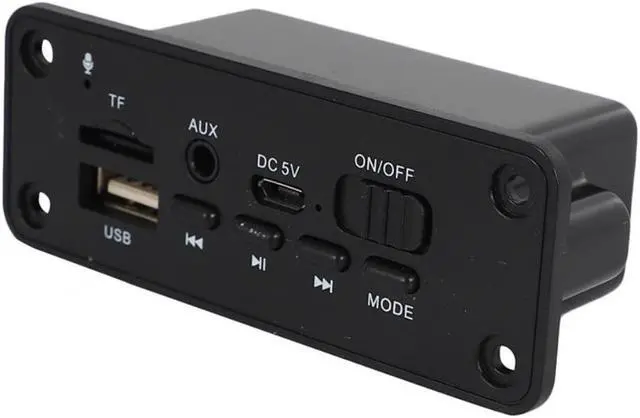

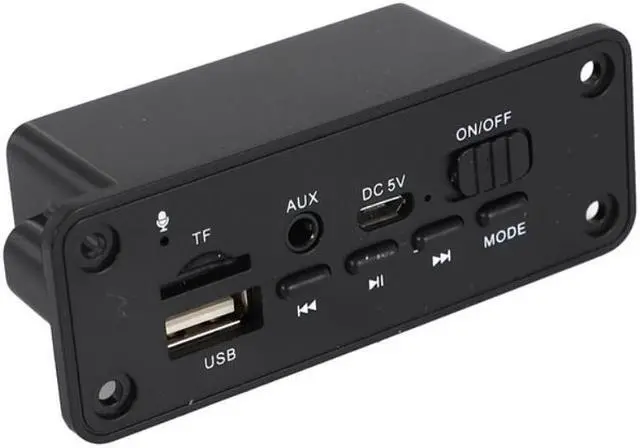

USB: Connect to U disk (maximum support 32GB)
TF: Connect to TF memory card (maximum support 32GB)
AUX: Audio Input Interface
VOL-: Short press is the last song; Long press is the volume reduction.
PLAY/PAUSE: Short press is the switch between pause and playback; Long press is the radio FM automatic station.
VOL+: Short press is to choose the next song; Long press is to increase the volume.
MODE: Switchover of USB/TF/FM/LINE IN/BLUETOOTH Voice
Main control IC: AC5322B
Bluetooth IC: AC5322B Bluetooth version is version 5.0
Music format: MP3/WMA/WAV/FLAC/APE lossless format music
Power: 2 * 3W, connected to two 3W speakers
Radio FM Frequency: 87.5-107.5 MHZ
Introduction of Support Functions: Support MP3/USB/TF/LINE IN/FM/BLUETOOTH/Remote Control/DC 5V
About structure: panel size: 107 * 25 MM, panel corner and screw hole position, then cover surface, the depth of the board is 32 MM
Description of recording function
1. Press the MODE button for a long time to start recording, and then press the MODE button for a long time to cancel recording function.
2. Press the PLAY/PAUSE key to play the recording file.
3. When recording, it is more necessary to connect a storage device, such as a U disk or a TF card.
Colour: Black
material: plastic
Package Contents:

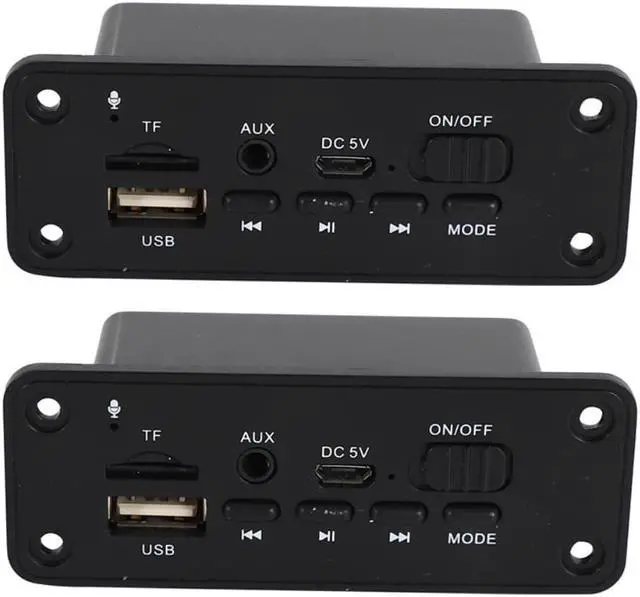

2 * Bluetooth 5.0 DC 5V Amplifier Decoder Board
8 * Cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
