1Pcs 6.0V-12V To 5V AMS1117-5.0V Power Supply Module Voltage Regulator 2.5X1.1 Cm & 10 Pcs TTP223 Capacitive Press Switch Button

Origin:CN(Origin)
Certification:NONE

1Pcs 6.0V-12V To 5V AMS1117-5.0V Power Supply Module Voltage Regulator 2.5X1.1 Cm & 10 Pcs TTP223 Capacitive Press Switch Button

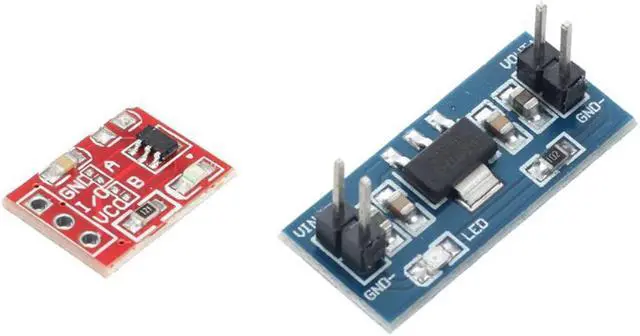

set2: 10 x TTP223 Capacitive Press Switch Button Self-Lock Module for Arduino + 1 x AMS1117-5.0V power supply module
2P single row pin input and output for easy connection
Dual-panel design, the layout is nice
Specially designed two rows of needle fixing holes can be fixed directly in the tunnel for the board to extend the experiment
Size:11.5*8mm
Power:2.5-5.5V
Trigger setting mode:(1- Greater than Short;0- Greater than No Short)
COLOR:RED/blue
Material: CCL

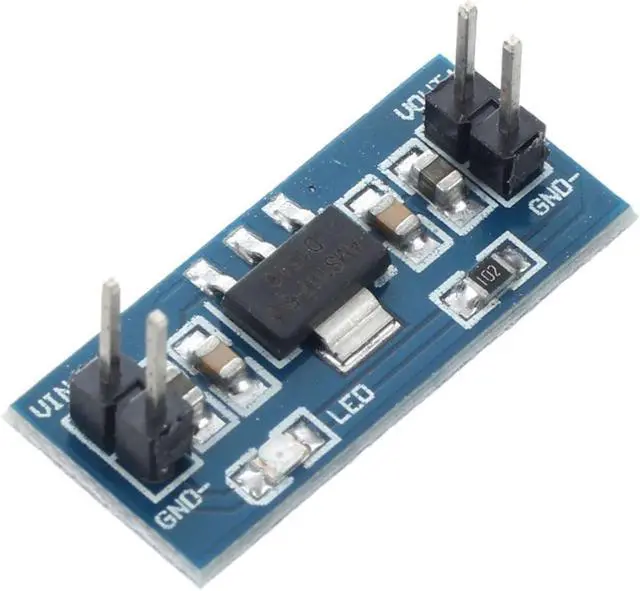

Input: DC 6V - 12V (input voltage to output voltage must be greater than 1V or more)
Output: 5.0V (+-0.05v error), 800mA (load current must not exceed 800ma)
PCB board size: 2.5 cm x 1.1 cm
AB=00:No-lock High TTL level ouput;
AB=01:Self-lock High TTL level ouput;
AB=10:No-lock Low TTL level ouput;
AB=11:Self-lock Low TTL level ouput;

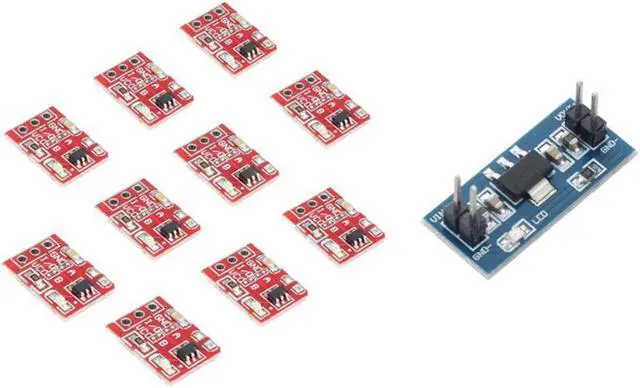

Package including:
10 x TTP223 Capacitive Press Switch Button Self-Lock Module for Arduino
1 x AMS1117-5.0V power supply module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
