PCI-Express to 16 Port Serial RS232 Expansion Card Two DB62 to DB9 Fan-out Cable

Interface Type:PCI Express
Package:Yes
Model Number:IO-PCE358-16S

PCI-Express to 16 Port Serial RS232 Expansion Card Two DB62 to DB9 Fan-out Cable
About Description:
100% And .
Part Number:
IO-PCE358-16S
Specifications
PCIe 2.0 Gen 1 compliant
x1 Link, dual simplex, 2.5Gbps in each direction
Expansion bus interface
Up to 25 Mbps serial data rate
16 multi-purpose inputs/outputs (MPIOs)
16-bit general purpose timer/counter
Sleep mode with wake-up Indicator
Operating temperature range:-40° to 85°
16x Serial (16S) Model
Supports 16 independent 9-pin RS232 Serial ports
256-byte TX and RX FIFOs
Programmable TX and RX Trigger Levels
TX/RX FIFO Level Counters
Fractional baud rate generator
Automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis
Automatic Xon/Xoff software flow control
Multi-drop with Auto Address Detection
Infrared (IrDA 1.1) data encoder/decoder

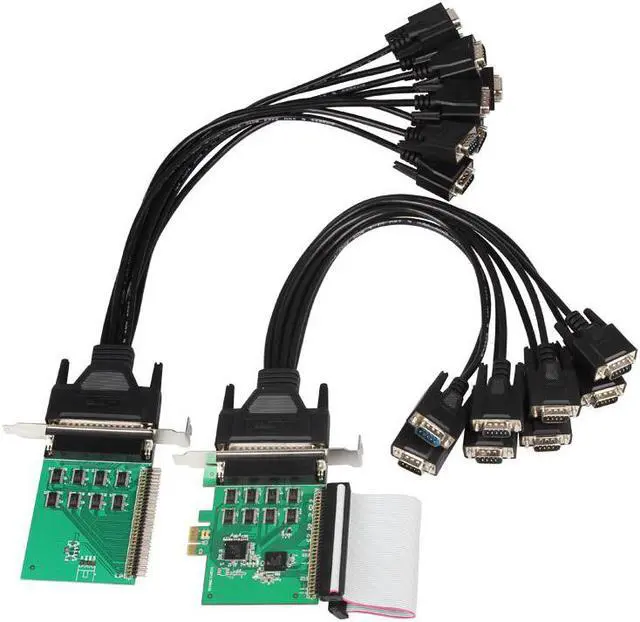

Bundle with two 8-port (DB9) fan-out cable
System requirements:
DOS, Windows 8.1, Windows 7 / Vista / XP / 2000 / Server 2003-2008 32/64-bit,
Linux & Mac OS/X 10.5

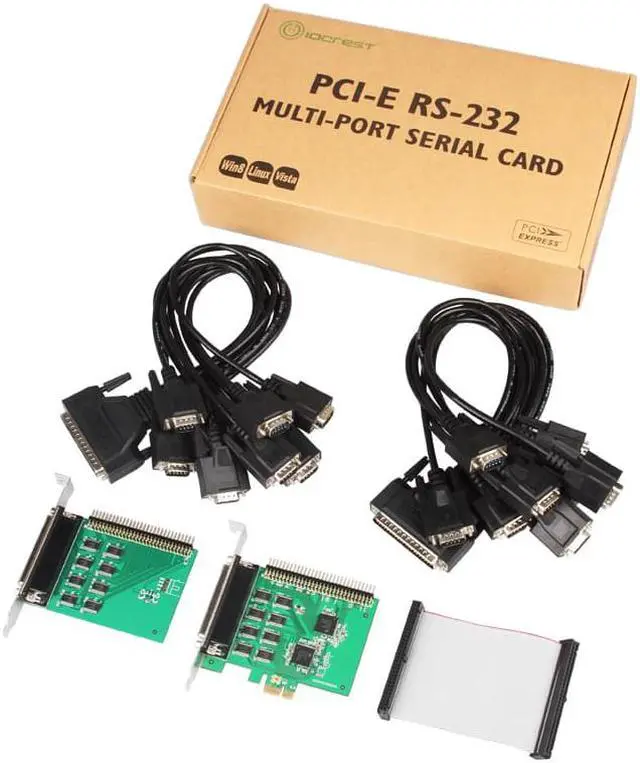

You'll receive:

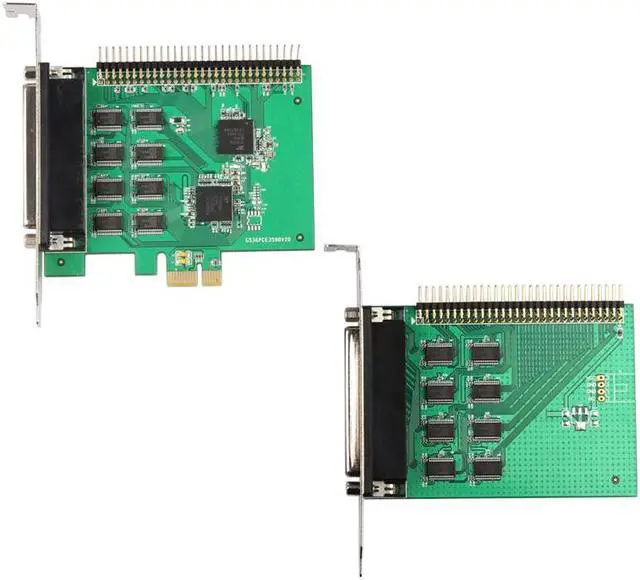

1 x 16-port PCI-e Controller Card
2 x DB62 to DB9 Fan-out Cable
1 x 30-pin IDE Cable
1 x User Manual
1 x CD Driver
Please check pictures for more details.
