PCIE SATA Card 24 Ports SATA 3.0 6Gb PCIE To SATA Controller Expansion Card PCI Express X4 GEN3 SATA3 Riser Card for Chia Mining

Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:AC5047
Type:Add On Cards
Interface Type:PCI Express
Feature 1:pci express sata 3 card
Feature 2:pcie to 24-port sata 3.0 card
Feature 3:24 port sata card
Feature 4:pcie sata card
Feature 5:pci e sata
Feature 6:pci-e sata card
Feature 7:pci express x4 sata card
Feature 8:for computer pc hard disk mining
Feature 9:sata 3 controller
Feature 10:pcie to sata card

PCIE SATA Card 24 Ports SATA 3.0 6Gb PCIE To SATA Controller Expansion Card PCI Express X4 GEN3 SATA3 Riser Card for Chia Mining
About Description:
Feature:
1. Supports up to two lane of PCI Express.
2. Complies with PCI Express Base Specification Revision 3.1a.
3. Compliant with Serial ATA Port Multiplier Spec. Revision 1.2
4. Compliant with Serial ATA Port Selector Spec. Revision 1.0
5. Compliant with Serial ATA PHY Electrical Spec. Revision 1.0
6. Complies with SATA Specification Revision 3.2
7. Supports PCIe link layer power saving mode.
8. Supports 24-port 6Gb/s SATA III interface.
9. Supports Port Multiplier
10. Supports command-based and FIS-based for Port Multiplier.
11. Supports AHCI mode and IDE programming interface.
12. Supports Native Command Queue (NCQ).
13. Supports SATA link power saving mode (partial and slumber)
14. Supports SATA plug-in detection capable.
15. Supports drive power control and staggered spin-up.
16. Supports SATA Partial / Slumber power management state.
17. Supports Windows OS, Linux-base OS
Note: Dont support system boot disk
You'll receive:

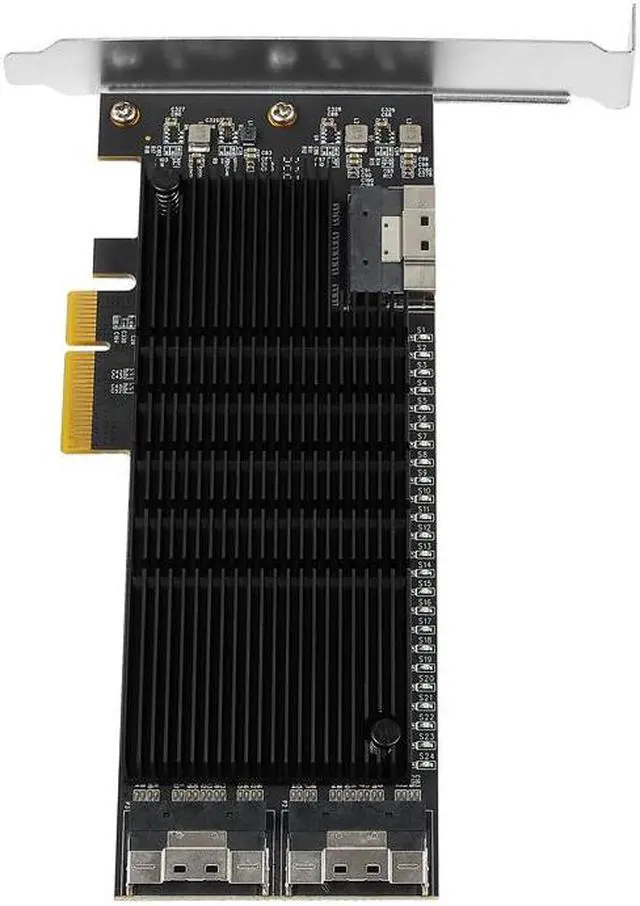

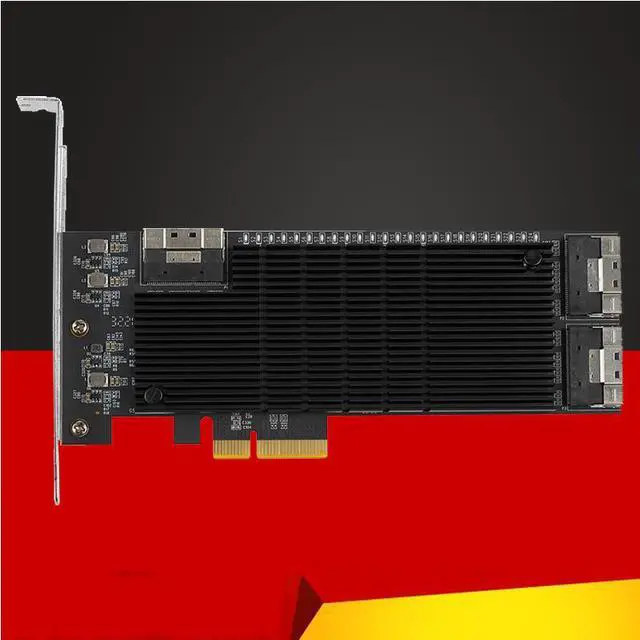

1 x PCIe Gen3 X4 to 24-Port SATA 6Gb/s Card

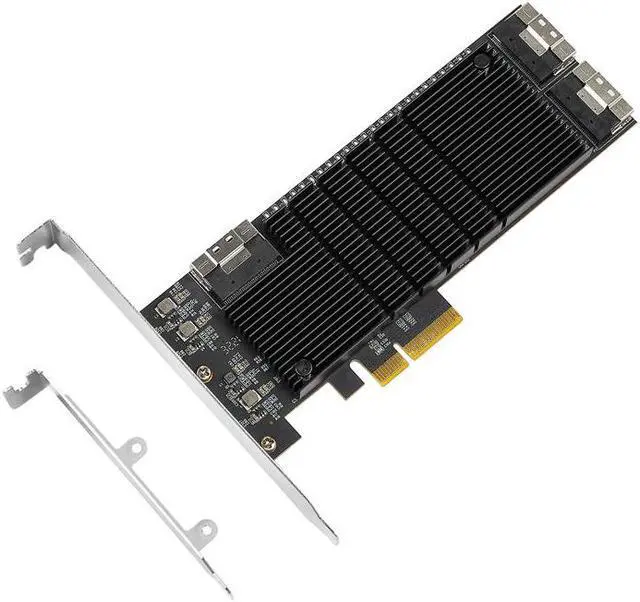

1 x Low Profile Bracket
1 x User Manual
3 x Slim SAS SFF-8654 8i 74P to 8*SATA Cable
Please check pictures for more details.
