Good Quality 4 Ports High Speed Serial RS422 RS485 PCI Express PCIe Card Chipset For XR17V354 Best Price

Interface Type:PCI Express
Package:Yes
Model Number:IO-PCE354-PR4S

4 Ports High Speed Serial RS422 RS485 PCI Express PCIe Card Chipset For XR17V354
About Description:
100% And .

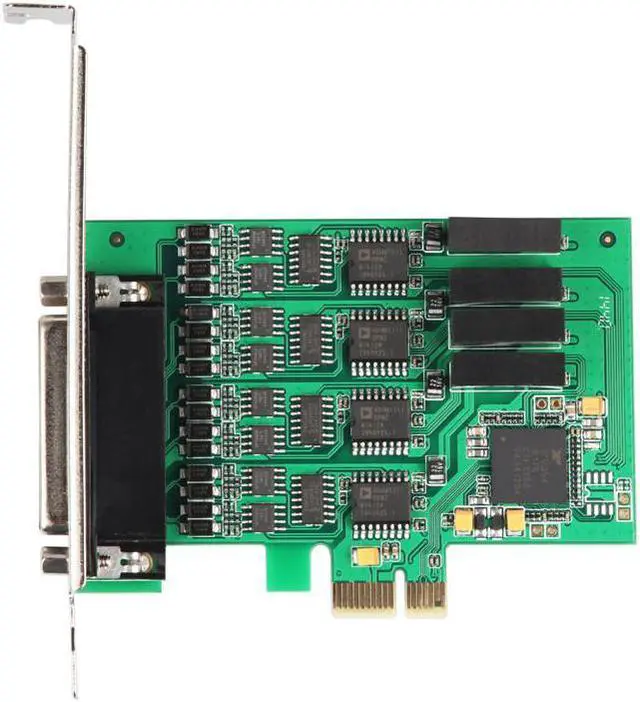

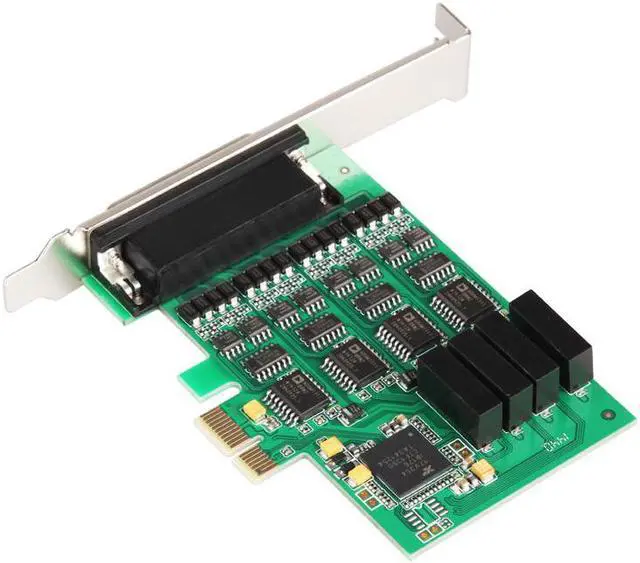

XR17V354 Chipset (IO-PCE354-PR4S)
Specifications
PCIe 2
.
0 Gen 1 compliant
x1 Link, dual simplex
,
2.5Gbps in each direction
Supports x1
,
x2
,
x4, x8, x16 (lane) PCI Express Bus connector keys
.
RS485 signals: DATA+
(
B), DATA- (A), GND
RS422 signal: T/R+, T/R-, RXD+, RXD-, GND
600W surge protection, 15 KV ESD protection for all serial ports
Working mode: asynchronous working
,
point-to-point or point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
Transmission distance: RS-485/422 port:1.2km (300bps-921600bps)
Sleep mode with wake-up Indicator
Transmission media: twisted-pair cable or shielded cable
Direction control: Adopt the technology which automatically controls the data-flow direction
,
automatically distinguish and control the data-transmission direction;
UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
Flow control none,hardware and xon/xoff
Load capability; Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment
Extended operating temperature range;  -40 to 85
Degree
APPLICATIONS
Next generation Point-of-Sale Systems
Remote Access Servers
Storage Network Management
Factory Automation and Process Control
System Requirements
Windows Server 2003, 2008, 2012
Windows XP, Vista, 7, 8
Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and er
PCI Express-enabled system with an available PCI Express slot
You'll receive:

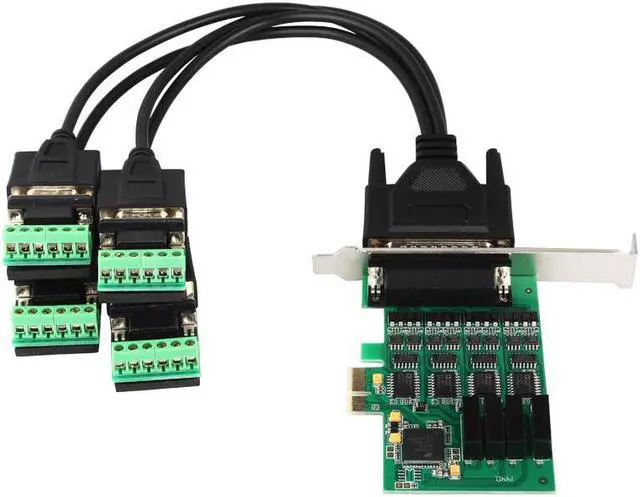

1 x PCI-Express Serial Card (
1 to 4 Port Cable Included
)
1 x CD Driver
1 x User Manual
1 x Low Profile Bracket
Please check pictures for more details.
