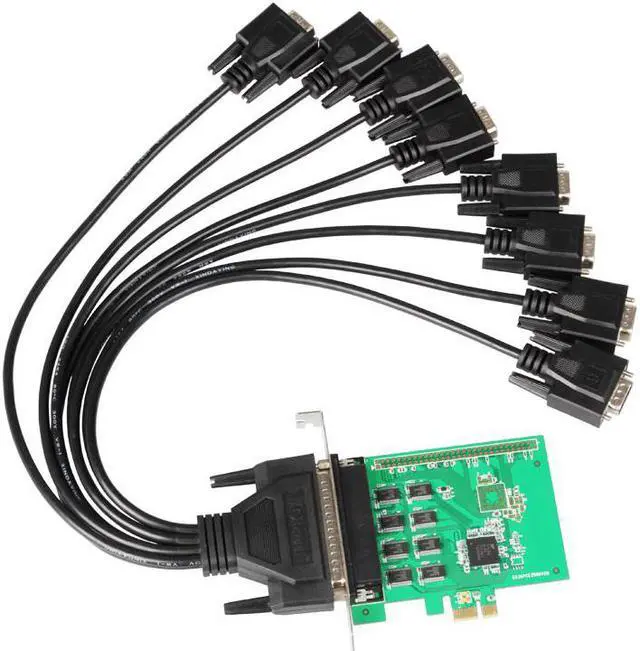

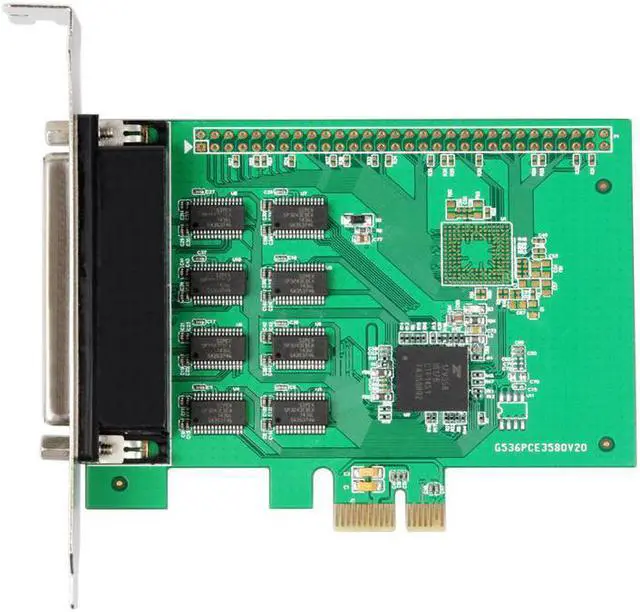

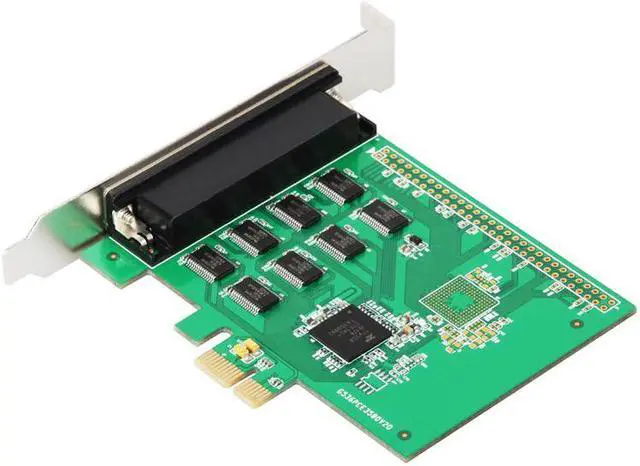

PCI-Express to 8 Ports RS232 DB9 Serial Card with Fan out Cable XR17V358 Chipset
- PCI-Express to 8 Ports RS232 DB9 Serial Card with Fan out Cable XR17V358 Chipset
+
+
Overview
Specs
Reviews
Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:IO-PCE358-8S
Type:Add On Cards
Interface Type:PCI Express
PCI-Express to 8 Ports RS232 DB9 Serial Card with Fan out Cable XR17V358 Chipset
About Description:
100% And .
Part Number:
IO-PCE358-8S
Specifications
Supports up to 8 RS232 Serial ports
On chip 256 byte FIFOs in transmit and receive path of each serial port
Available WHQL software drivers for Windows operating systems
Operating temperature range:-40° to 85°
Compliant with PCI-Experss Specification 2.0 and backward compatible with PCI-Express 1.1
Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
Supports Re-map function for legacy ports
Dimensions: 100mm (L) x 120.0mm (W) x 21.5mm (T) (approx.)
Support system:
DOS, Windows 8.1, Windows 7 / Vista / XP / 2000 / Server 2003-2008 32/64-bit, Linux & Mac OS/X 10.5
You'll receive:
1 x PCI-Express I/O Controller Card
1 x RS232 8-ports Serial Fan-out Cable
1 x User Manual
1 x Driver CD
Please check pictures for more details.
Origin:CN(Origin)
Package:Yes
Model Number:IO-PCE358-8S
Type:Add On Cards
Interface Type:PCI Express
PCI-Express to 8 Ports RS232 DB9 Serial Card with Fan out Cable XR17V358 Chipset
About Description:
100% And .
Part Number:
IO-PCE358-8S
Specifications
Supports up to 8 RS232 Serial ports
On chip 256 byte FIFOs in transmit and receive path of each serial port
Available WHQL software drivers for Windows operating systems
Operating temperature range:-40° to 85°
Compliant with PCI-Experss Specification 2.0 and backward compatible with PCI-Express 1.1
Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
Supports Re-map function for legacy ports
Dimensions: 100mm (L) x 120.0mm (W) x 21.5mm (T) (approx.)
Support system:
DOS, Windows 8.1, Windows 7 / Vista / XP / 2000 / Server 2003-2008 32/64-bit, Linux & Mac OS/X 10.5
You'll receive:
1 x PCI-Express I/O Controller Card
1 x RS232 8-ports Serial Fan-out Cable
1 x User Manual
1 x Driver CD
Please check pictures for more details.
