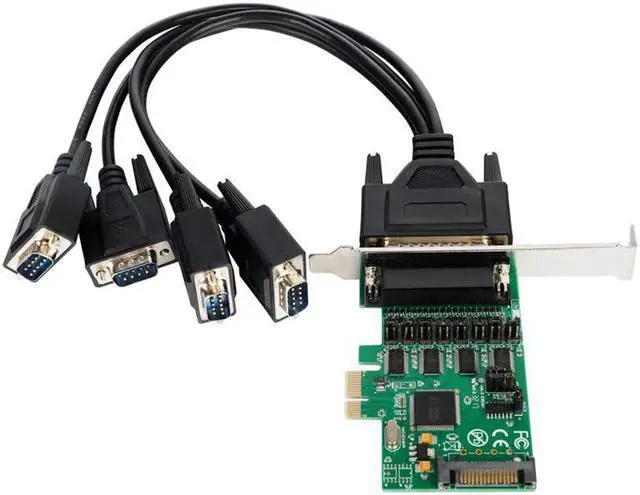

PCI-E PCI Express to 4 Port RS232 Multi Serail Card WCH384L Chipset DB9 pin COM Adapter PCIE Controller with Fan out Cable

Interface Type:PCI Express
Package:Yes
Model Number:IO-PCE384T-PR4S
Port:4 ports Serial port
Interface:PCI-e
Chipset:WCH384L Chipset
Product Status:Stock
Features:with TTL level

PCI-E PCI Express to 4 Port RS232 Serial Card RS-232 Signal COM Card 1pin or 9 feet Power Supply Serial Port DB9 PCIe Controller
About Description:
100% And .
WCH384L Chipset
(IO-PCE384T-PR4S
)
Specifications
Feature:
Compliant with PCI Express Base Specification 1.1.
Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
Support 4 x UART serial ports
Built-in 16C950 compatible UART
128-bype deep transmit/receive FIFOs
Data transfer rate up to 230400bps
Optional RS-232 signal or power output to serial device
Provides 5VDC or 12VDC power output via pin 1
Provides 5VDC or 12VDC power output via pin 9
TTL UART for Dedicated Serial Port Selectable TTL voltage level UART for TTL Keyboard etc
Plug-n-Play, I/O address and IRQ assigned by BIOS.
System Requirements:
Windows98/98e/ME
Windows 32bit 2000/XP/2003 Server/Vista/7 & Windows 64bit XP/2003 Server/Vista/7/8
Linux Kernel 2.4 & 2.6
One available PCI Express slot.
You'll receive:

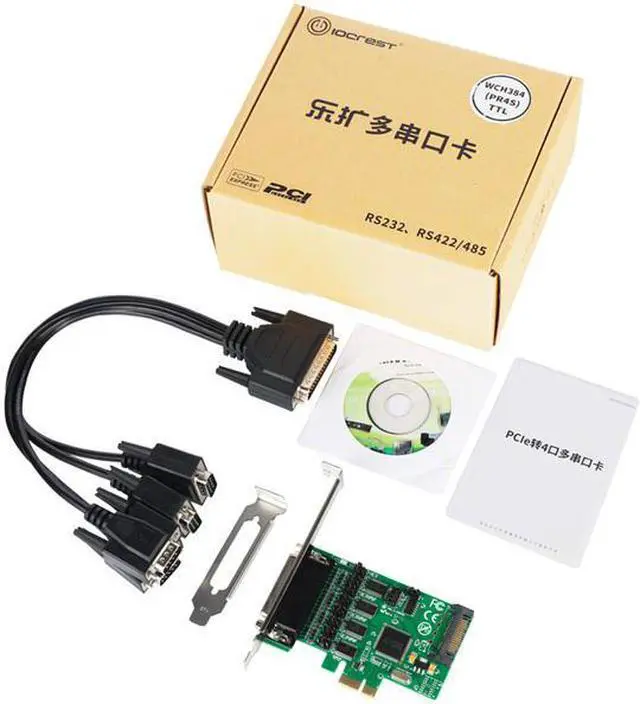

1 x Powered RS-232 4-Port PCIe Card
1 x Driver CD
1 x User Manual
1 x Low Profile Bracket
Please check pictures for more details.
