10PCS 2 Port SATA 6G mini PCI Express Expansion Card mini PCI-e to SATA III 3.0 converter half-size to full-size bracket SATA3.0

Type:SATA Cables
Products Status:STOCK
Package:No
Model Number:AC3354

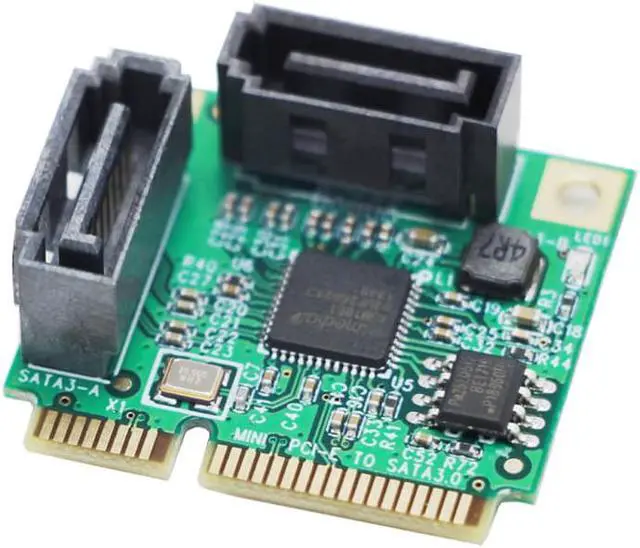

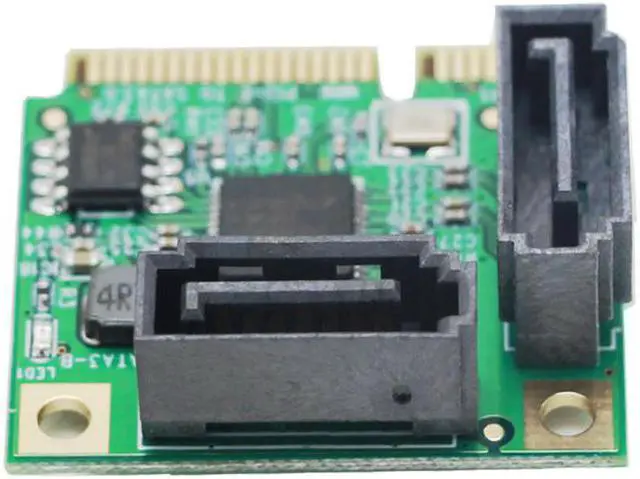

Product name:Mini PCI Express to 2-port SATA Expansion Card
Chipset:ASM1061
Bus type:mini pci-e
SATA Interface:sata 3.0
Speed:6Gbps
Feature 1:mini pcie adapter
Feature 2:mini pci pcie express adapter
Feature 3:for sata ssd hdd hard disk
Feature 4:mini pcie sata adapter
Feature 5:mini pci express

10PCS 2 Port SATA 6G mini PCI Express Expansion Card mini PCI-e to SATA III 3.0 converter half-size to full-size bracket SATA3.0
About Description:
PCI-E single-chip design
Supports two SATA 6Gbps ports
Compliant with PCI-Express Basic Specification Rev 2.0, backward compatible with Rev 1.0
Single-line (x1) PCI-E throughput of up to 5.0 / 2.5 gbps
Compliant with PCI-E Mini Card Electrical Specifications Revision 1.2
Serial ATA (SATA) interface
Compatible with Serial ATA AHCI (Specification Advanced Host Controller Interface) Specifications Rev 1.2
Compatible with the bus master IDE ATA controller programming interface Rev1.0
Supports SATA 3.0 transfer rates up to 6 gbps
Backwards compatible with SATA-II (3 gbps) and SATA-I (1.5 gbps) specifications
Supports Gen1m and Gen2m SATA PHY
Supports native command queue (NCQ) and port multiplication
Supports hot-swapping on SATA ports
System Requirements:
Suitable for computer systems with Mini PCI-E slots
Windows 10/8/7 (32/64 bit) / Vista / Server 2003 / XP / 2000 Linux
You'll receive:

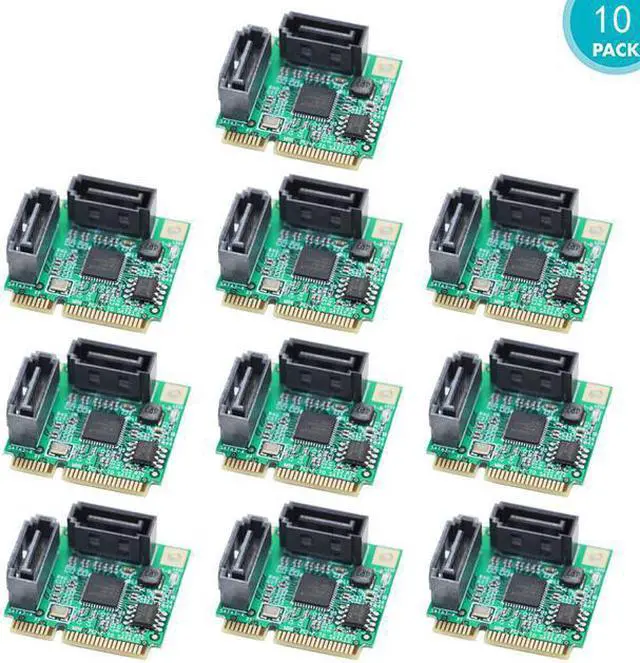

10pcs x MINI PCIE to 2-port SATA Expansion Card(come with full-size Iron bracket)
40pcs x Screws
Please check pictures for more details.
