MINI PCI-E to RS232 RS422 RS485 Serial Card Minipcie (USB protocol) Surge Electrostatic Protection Multi Function Expansion Card

Interface Type:Other
Package:Yes
Model Number:IO-mPCE234285

MINI PCI-E to RS232 RS422 RS485 Serial Card Minipcie (USB protocol) Surge Electrostatic Protection Multi Function Expansion Card
About Description:
100% And .
Part Number: IO-MPCE352A-2S
Specifications
USB 2.0 High Speed (480 Mbits/sec.) and Full Speed (12 Mbits/sec.) compatible
Standards: conforming to USB1.0, 1.1 and 2.0
USB 2.0 Compliant, Full-Speed (12 Mbps)
Full size Mini PCIe module type combo
MiniPCIe via USB & USB pin header
RS232 Data Rates: 300bps to 1 Mbps
RS422/RS485 Data Rates: 300bps to 10 Mbps
FIFO Buffer: 4K byte transfer, 4K byte receiver
UART interface support for 7 or 8 data bits,1 or 2 stop bits and
even/odd/mark/space/none,Flow
control none,hardware and xon/xoff
1.Isolation voltage: 2500V,High common-mode transient immunity: >25 kV/s
2.500W surge protection and ±23KV ESD protection
3.Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive
(RXD)
4.Operating Temperature:-40°C to +85°C
The model is ready the USB signal on both MiniPCIe side (Pin 36, 38, 2, 4) and
Pin Header (J2).
While using, please kindly select only one of the two.
Applications:
POS Printer Terminal
Networking System
Industrial and Power Meter
System Requirements:
Windows XP,Vista,7,8,10 32,64-bit;
Windows Server 2K3,2K8,2K12 32,64-bit
Windows XP Embedded
Windows CE 4.2, 5.0 and 6.0
Mac OS-X
Linux 3.2 and greater
Android
You'll receive:
1 x High Speed Serial Module Board
1 x DB-9 pin Serial Adatper
1 x USB to IDE 4pin Cable
1 x Low Profile Bracket
1 x User Manual
1 x CD Driver
2 x Screws

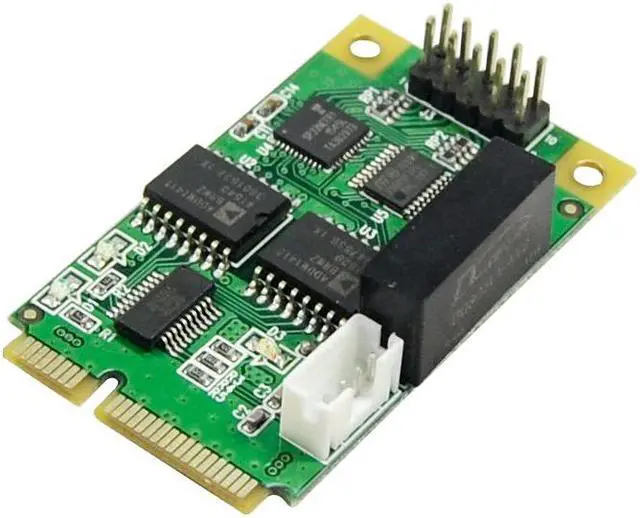

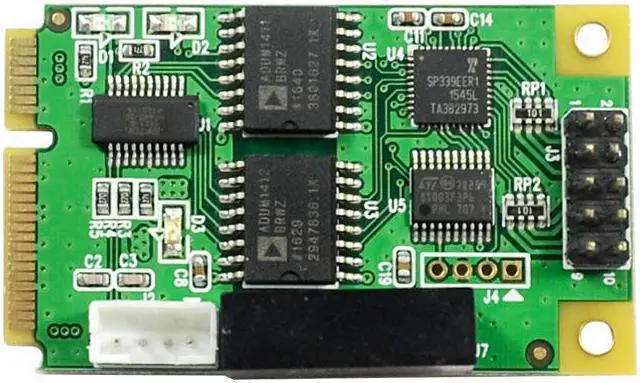

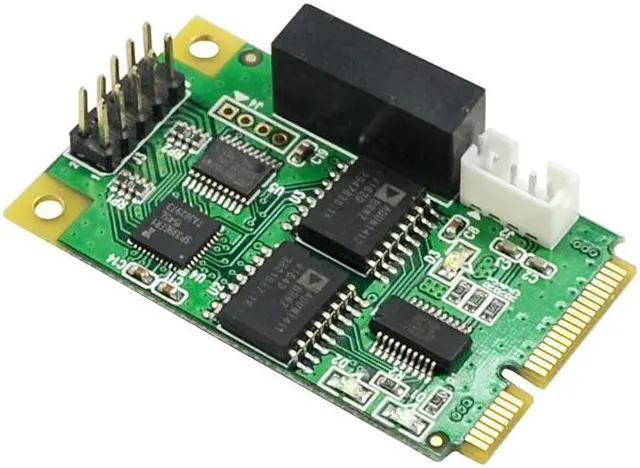

Please check pictures for more details.
