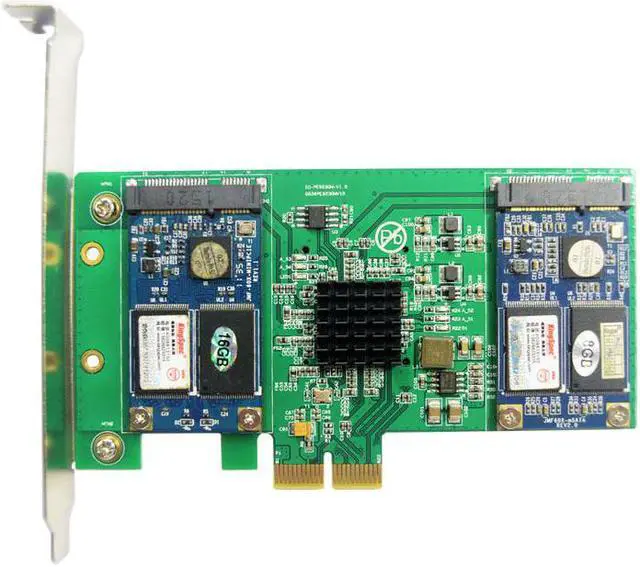

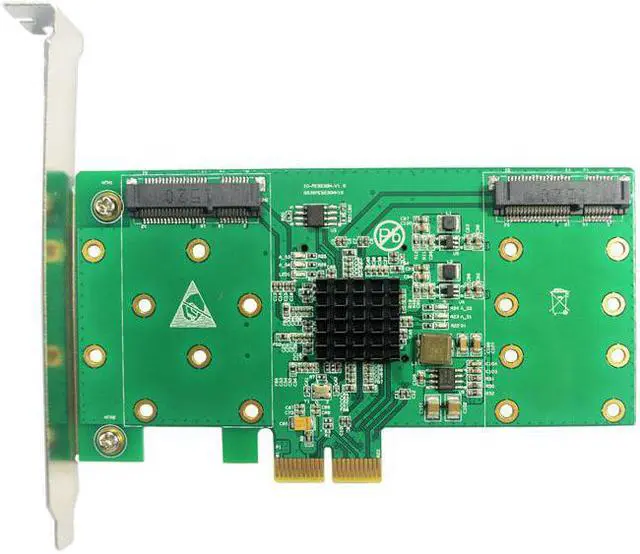

4 Port mSATA Raid Card Converter SSD Adapter PCI-Express X2 Controller 6Gb/s RAID0 1 10

Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:IO-PCE9230-4MR
Type:Add On Cards
Interface Type:PCI Express

4 Port mSATA Raid Card Converter SSD Adapter PCI-Express X2 Controller 6Gb/s RAID0 1 10
About Description:
100% And .
9230 Chipset (IO-PCE9230-4MR)
Specifications
Supports PCIe 1.0 and PCIe 2.0 motherboard
Compliant with 10Gbps PCI Express 2.0
Fully compliant with Serial ATA specifications 3.0
Supports SATA III transfer rate of 6.0Gbps
Supports SATA III & SATA II & SATA I mSATA SSD
Supports Native Command Queuing (NCQ)
Supports ATA and ATAPI commands
Supports Hardware RAID 0, RAID 1, RAID 10 modes to mSATA SSD
mSATA SSD LED indication
Require an empty PCIe x2 or x4 or x8 or x16 slot in computer
Compatible with SATA 6G, 3G and 1.5G Hard Drives
System requirements:
Windows 2000/XP/2003/2008/Vista/7/8/8.1/10
Linux, MAC OS

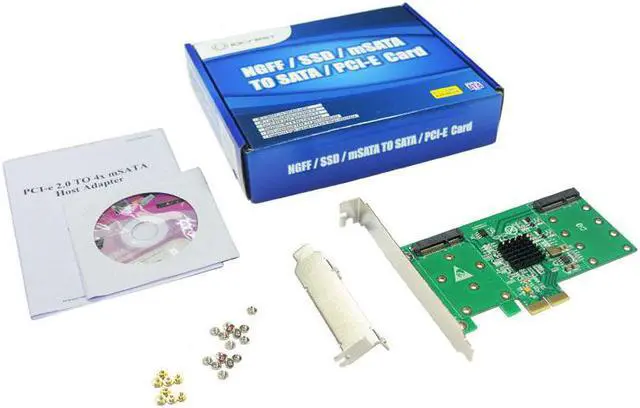

You'll receive:
1 x PCI-e 2.0 TO 4x mSATA Host Adapter
1 x User Manual
1 x Driver CD
16 x Screws(mSATA)
1 x Low Bracket
Please check pictures for more details.
