Marvell 88SE9230 SATA PCI Express 4 Ports Expansion Card SATA Controller PCI-E Raid Card PCI E to SATA3.0 Adapter Converter Card

Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:AC3911
Type:Add On Cards
Interface Type:PCI Express
Feature 1:controller sata 3
Feature 2:sata controller
Feature 3:raid controller sata
Feature 4:pci-e sata raid card
Feature 5:pci e sata raid
Feature 6:sata pci-e card
Feature 7:raid sata
Feature 8:pcie sata
Feature 9:pcie sata3
Feature 10:with low profile bracket

Marvell 88SE9230 SATA PCI Express 4 Ports Expansion Card SATA Controller PCI-E Raid Card PCI E to SATA3.0 Adapter Converter Card
About Description:
Specification:
PCIE to SATA RAID Card, 4 Port SATA 3.0 6Gbps Support RAID 0, RAID 1, RAID 10
SATA III 4-port PCI-e Version 2, Bus type PCI-E x4 Slot Controller Card, HyperDuo, Software RAID
Ports: 4 Internal SATA 6Gb/s Ports
Compliant with PCI-Express Specification v2.0 and Backward Compatible with PCI-Express v1.0
Compliant with Serial ATA Specification 3.0
PCI-Express x4 Interface (for Selected Models)is Compatible with PCI-Express x4, x8 and x16 slots
Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Hot Plug and Hot Swap
Supports Native Command Queue (NCQ)
Supports Port Multiplier FIS Based Switching or Command Based Switching
Compatible with SATA 6G, 3G and 1.5G Hard Drives
RAID Function:
RAID 0-Striping (Stripe Size: 32K, 64K)
RAID 1-Disk Mirroring
RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K)
HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)
Note: Not Supported RAID on PM
Software R
equirement:
Windows XP/Vista/7/8/10, Windows Server 2003, 2008, 2008 R2, Linux 2.6.x and Above (AHCI devices driver is a built-in feature)
You'll receive:
1 x PCI-E SATA Raid Card
1 x Low Profile Bracket
1 x Driver CD

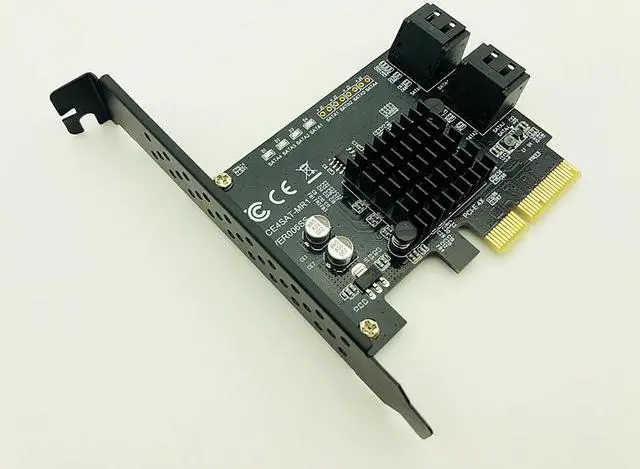

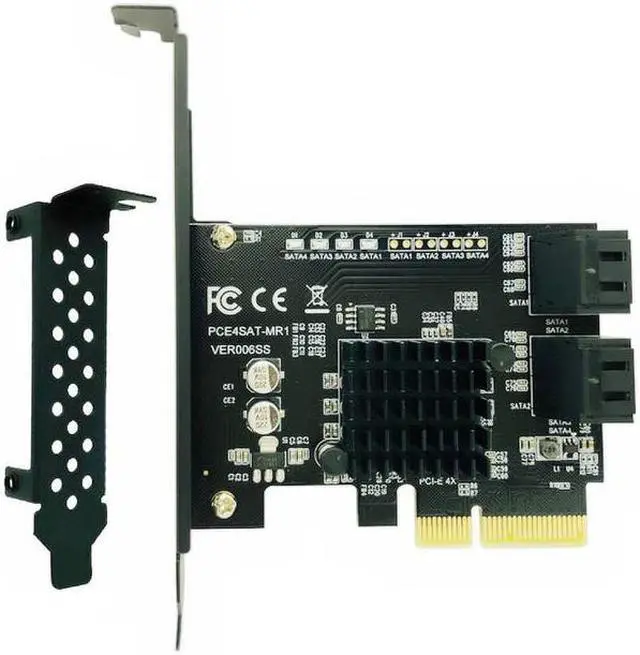

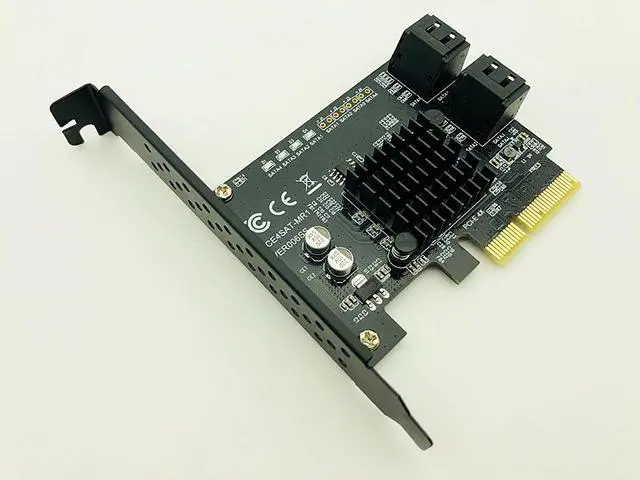

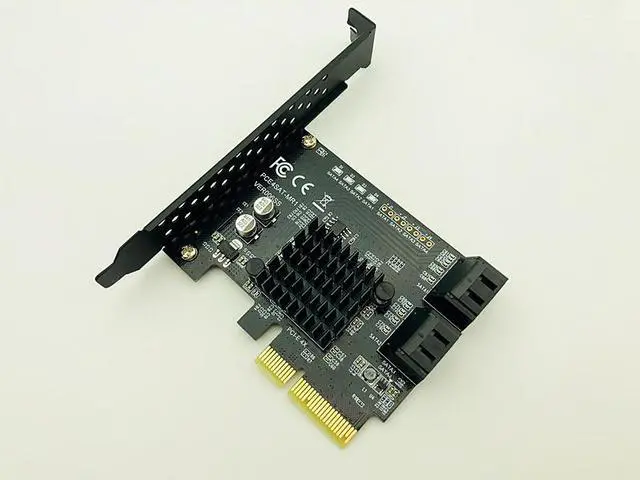

Please check pictures for more details.
