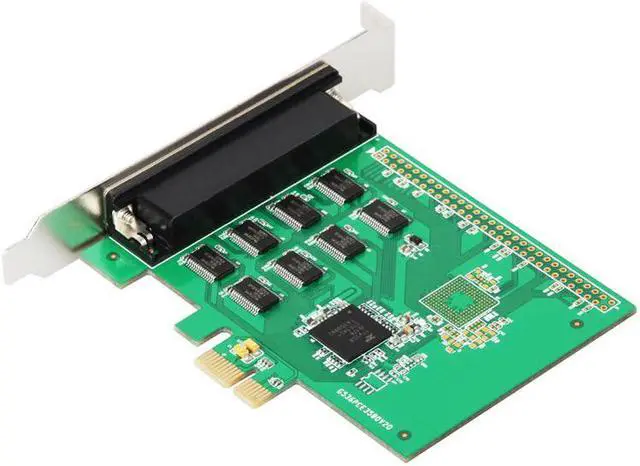

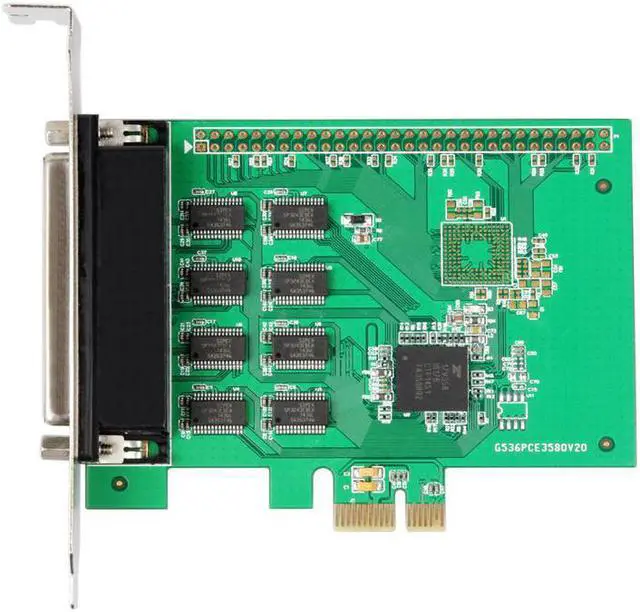

QINDIAN Add On Cards PCI Express to RS 232 XR17V358 Chips PCIE 8 Port Serial Card PCI-Express Controller Card with Fan Out Cable

Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:AC4104
Type:Add On Cards
Interface Type:PCI Express
Feature 1:usb rs232 adapter
Feature 2:usb to rs232
Feature 3:rs 232
Feature 4:rs232 cable
Feature 5:rs232 8 port rs232
Port:8 port rs232
Chipset:XR17V358
Interface:PCI-e
Color:Green
is_customized:Yes

QINDIAN Add On Cards PCI Express to RS 232 XR17V358 Chips PCIE 8 Port Serial Card PCI-Express Controller Card with Fan Out Cable
About Description:
Features
Supports up to 8 RS232 Serial ports
On chip 256 byte FIFOs in transmit and receive path of each serial port
Available WHQL software drivers for Windows operating systems
Operating temperature range:
(-40 °C to +85 °C)
Specification
General
Compliant with PCI-Experss Specification 2.0 and backward compatible with PCI-Express 1.1
Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
Supports Re-map function for legacy ports
Dimensions: 100mm (L) x 120.0mm (W) x 21.5mm (T) (approx.)
Supports DOS, Windows 8.1, Windows 7 / Vista / XP / 2000 / Server 2003-2008 32/64-bit, Linux & Mac OS/X 10.5 operating system
You'll receive:
1 x PCI-Express I/O Card

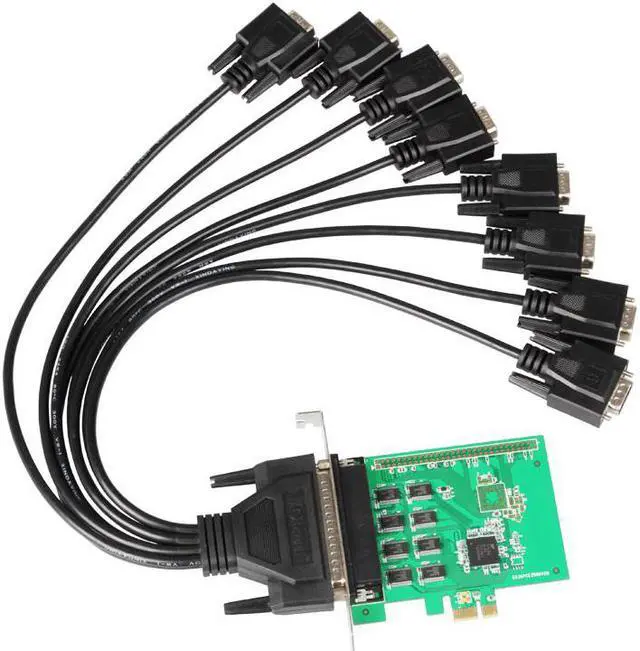

1 x RS232 8-ports Serial Fan-out Cable
1 x User Manual
1 x Software Driver CD
Please check pictures for more details.
