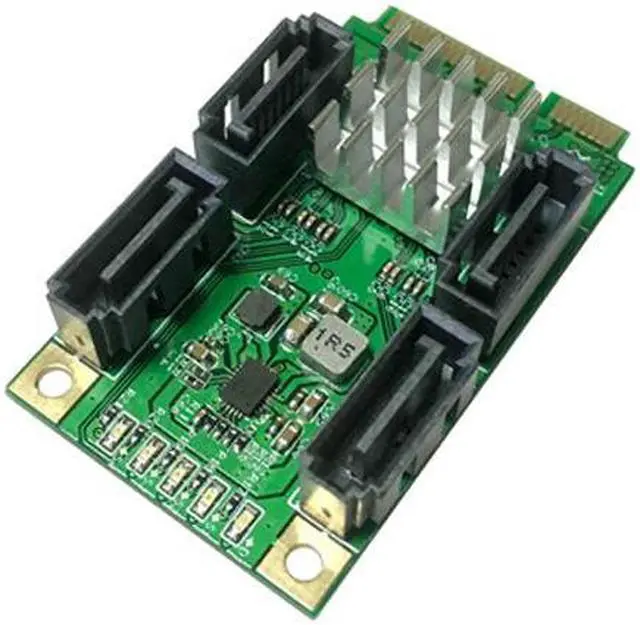

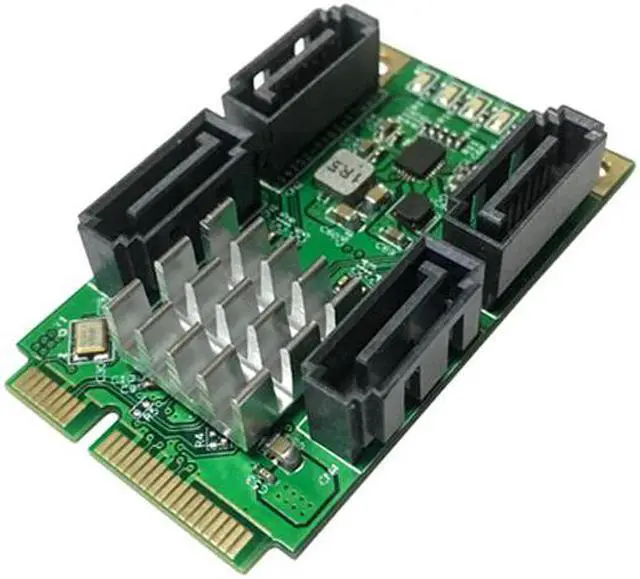

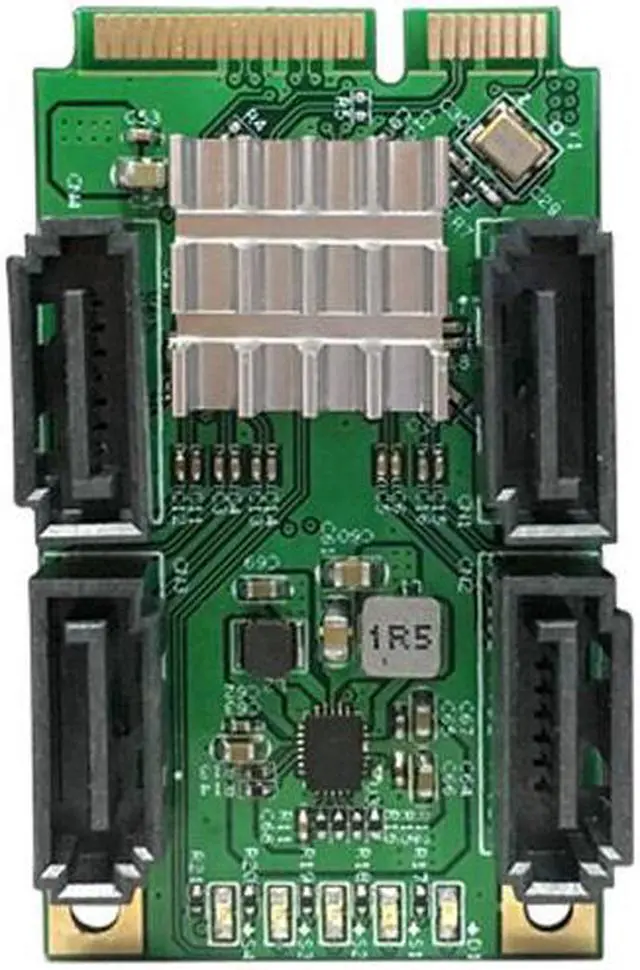

SATA Card Mini PCI-Express to 4-port SATA3.0 6Gb/s Controller Card SATA Adapter

Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:IO-mPCE9215-4I
Type:Add On Cards
Interface Type:Other
SATA Port:4 Port
SATA Standard:SATA 3.0
Rate:Max up to 6Gbps
Support:NCQ
Model:4-port SATA3.0 Expansion Card

SATA Card Mini PCI-Express to 4-port SATA3.0 6Gb/s Controller Card SATA Adapter
About Description:
100% And .
Part Number: IO-mPCE9215-4I
Specifications
Compliant with Serial ATA Specification 3.1
Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Hot plug and Hot Swap.
Supports Native Command Queue (NCQ)
Supports AHCI 1.0 programming interface registers for the SATA controller
Supports aggressive power management
Supports error reporting ,recovery and correction
Supports Message Signaled Interrupt (MSI)
Supports Programmable transmitter signal levels
Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
Supports Port Multiplier FIS based switching or command based switching.
Supports 4 SATA devices
Supports Partial and Slumber Power Management states
Supports Staggered Spin-up
Compatible with SATA 6G, 3G and 1.5G Hard Drives.
Note: Not Supported RAID on PM
System Requirements
Supports Windows XP/Vista/7/8/8.1/10 Server 2003/2008 R2, Linux 2.6.x and above
You'll receive:
1 x SATA III (6Gbps) miniPCI-Express Controller Card
1 x User Manual
1 x Mini SAS to SATA Cable
1 x Driver CD
Please check pictures for more details.
