PCI-Express Multi-Serial Card PCI-E 4 Port RS232 Serial Card PCIe Controller with TTL level 1-pin or 9-pin Power Supply for Bank

Interface Type:PCI Express
Package:Yes
Model Number:IO-PCE384T-4S
Port:4 ports Serial port
Interface:PCI-e
Chipset:WCH384 Chipset
Product Status:Stock
Features:with TTL level

PCI-E PCI Express to 4 Port RS232 Serial Card RS-232 Signal COM Card 1pin or 9 feet Power Supply Serial Port DB9 PCIe Controller
About Description:
100% And .
WCH384 Chipset
(IO-PCE384T-4S
)
Specifications
Feature:
Compliant with PCI Express Base Specification 1.1.
Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys.
Support 4 x UART serial ports
Built-in 16C950 compatible UART
128-bype deep transmit/receive FIFOs
Data transfer rate up to 230400bps
Optional RS-232 signal or power output to serial device
Provides 5VDC or 12VDC power output via pin 1
Provides 5VDC or 12VDC power output via pin 9
TTL UART for Dedicated Serial Port Selectable TTL voltage level UART for TTL Keyboard etc
Plug-n-Play, I/O address and IRQ assigned by BIOS.
System Requirements:
Windows98/98e/ME
Windows 32bit 2000/XP/2003 Server/Vista/7 & Windows 64bit XP/2003 Server/Vista/7/8
Linux Kernel 2.4 & 2.6
One available PCI Express slot
Application:
This board offer independent serial ports for connecting terminals,modems, printers, scanners,
cash registers,bar code readers, keypads,numeric displays, electrical scales, data acquisition
equipment, and other serial devices for the PC and compatible systems.

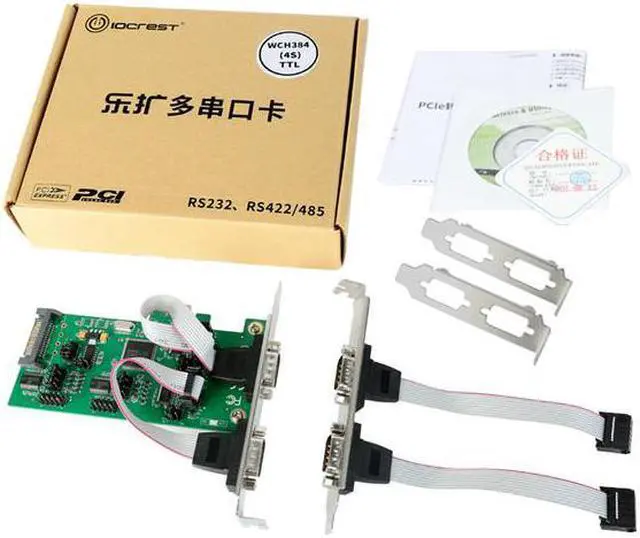

You'll receive:
1 x Powered RS-232 4-Port PCIe Card
1 x Driver CD
1 x User Manual
2 x Low Profile Bracket
Please check pictures for more details.
