Mini PCI-E USB 2.0 to RS 232 RS422 RS485 Expansion Card Serial DB9 RS232 RS422 RS485 Mini PCI Express Adapter FT231 Chipset

Interface Type:Mini PCI Express
Package:Yes
Model Number:AC4345
Product name:Mini PCI-E to RS232/422/485 Serial Card
Color:Green
Port:1 port
Host Interface:usb to mini pcie
Transmission distance:12 Mbits/sec
Applicable:mini PCI Express slot
Chipset:FTDI231X
Type:Mini pcie serial card
Feature 1:mini pci-e rs 232
Feature 2:rs232 usb

Mini PCI-E USB 2.0 to RS 232 RS422 RS485 Expansion Card Serial DB9 RS232 RS422 RS485 Mini PCI Express Adapter FT231 Chipset
About Description:
Features
PCIe 2.0 Gen 1 compliant
15 KV ESD protection for all serial ports
Sleep mode with wake-up Indicator
Transmission media: twisted-pair cable or shielded cable
Direction control: Adopt the technology which automatically controls the data-flow direction.automatically distinguish and control the data-transmission direction;
UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
Flow control none,hardware and xon/xoff
Extended operating temperature range;
-40 to 85C
Applications
Next generation Point-of-Sale Systems
Remote Access Servers
Storage Network Management
Factory Automation and Process Control
System Requirements
Windows® Server 2003, 2008, 2012
Windows® XP, Vista, 7, 8,8.1,10
Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and er
A available mini PCI Express slot
You'll receive:

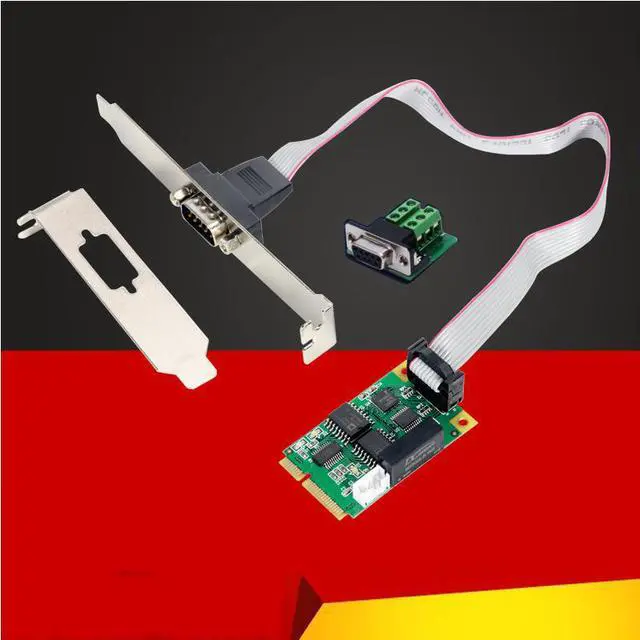

1 x Mini PCI-E to RS232/422/485 Serial Controller Card
1 x Low Profile Bracket
1 x USB Cable
1 x CD Drive
1 x User Manual
Please check pictures for more details.
