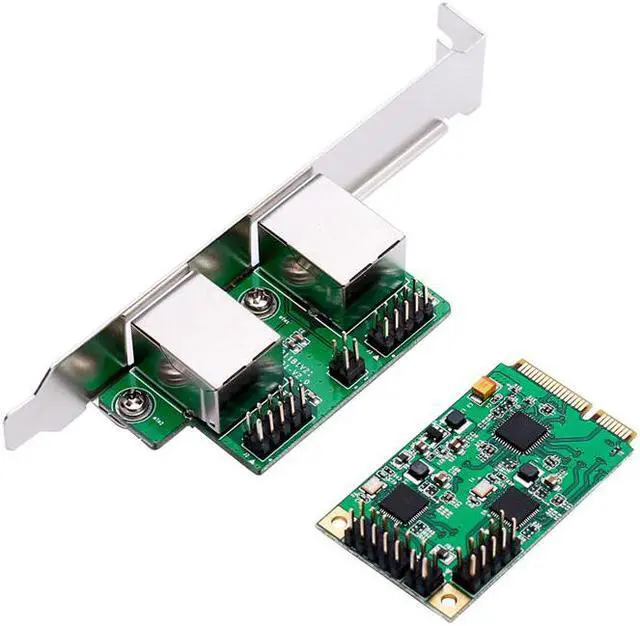

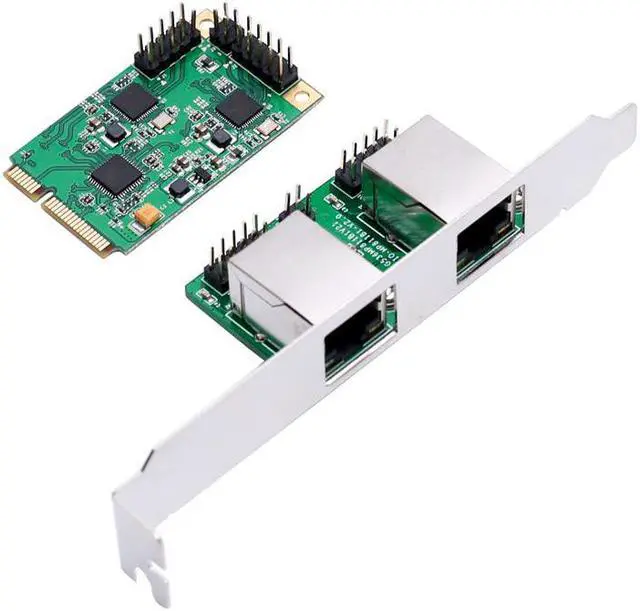

Mini PCI-e 2 Port Gigabit Ethernet Card Network Adapter 10/100/1000Mb For Server

Type:Cable Adapter
Products Status:STOCK
Package:Yes
Model Number:IO-mPCE8111-2GLAN

Mini PCI-Express Dual Port RJ45 Gigabit Ethernet Controller Card 10/100/1000Mbps
About Description:
100% And .
Part Number:
IO-mPCE8111-2GLAN
Specifications
Introduction:
This Mini PCI-Express Dual Gigabit Ethernet Adapter is a high performance 10/100/1000 BASE-T
Ethernet LAN controller. Supports compliant with the IEEE 802.3u specification for
10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet. It also
supports an auxiliary power auto-detect function, and will auto-configure related bits of
the PCI power management registers in PCI configuration space.
Features:
Support existing CAT-5 UTP cabling with automatic crossover detection
Fully compliant with PCI-Express Base Specification Revision 1.1
Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
Compatible with PCI-E Mini Card Electromechanical specification revision 1.2
Compatible with Half size Mini card type form factor
Fully Plug and Play compatible
A high performance 1000BASE-T Ethernet controller card
Backwards compatible to 10/100BASE-T networking
10/100/1000Mbps data rate auto negotiation operation
Compatible to existing CAT-5 UTP cabling
Fully compliant with IEEE 802.3, 802.3u, 802.3ab
Supports full duplex flow control (IEEE 802.3x)
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Supports jumbo frame to 9K bytes
Crossover Detection and Auto Correction operation
Support system:
Windows ME,98SE, 2000, XP, Vista, 7, 8 and 10 32-/64-bit
Windows Server 2003, 2008 and 2012 32 -/64-bit
Linux, DOS MAC OS X 10.4.X or above

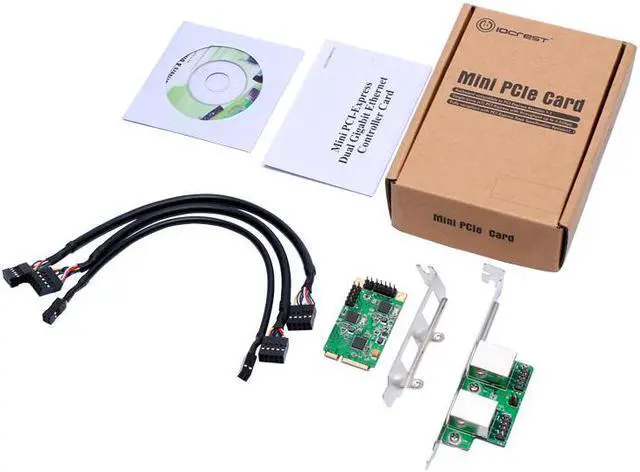

You'll receive:
1 x Gigabit Ethernet Mini PCI-Express Card - Main card
1 x Gigabit Ethernet Mini PCI-Express Card - Daughter card
1 x User manual
1 x Driver CD
2 x 10-pin network cable
2 x 4-pin LED cabl
1 x Low-profile bracket
Please check pictures for more details.
