Add On Cards Riser PCI Express X4 3.0 to Type-c 20G Data Transfer PCIE USB Expansion Card 20W Quick Charge USB-C Controller Card

Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:AC4906
Type:Add On Cards
Interface Type:PCI Express
Feature 1:PCI-e To USB3.2 Riser Card
Feature 2:PCI-e To Type-C Riser Card
Feature 3:20Gbps Rate
Feature 4:USB-C
Feature 5:20W Quick Charge
Feature 6:PCIE USB Expansion Card
Feature 7:usb 3.2 pci-e
Feature 8:pci express usb 3.2
Feature 9:pci-e usb 3.2
Feature 10:raiser

Add On Cards Riser PCI Express X4 3.0 to Type-c 20G Data Transfer PCIE USB Expansion Card 20W Quick Charge USB-C Controller Card
About Description:
Features
Support PCI Express3.0 x4X8X16
Support PCI Express Base 3.1a Specification
Compliant with PCI Express Card Electromechanical 2.0 specification
Compliant with PCI Bus power Management interface specification Revision 1.2
Compliant with PCI Local Bus specification Revision 3.0
Not Support lane reversal
Compliant with Universal Serial Bus 3.1 specification Revision 1.0
Compliant with Universal Serial Bus specification Revision 2.0
Compliant with USB Attached SCSI Protocol Revision 1.0
Support Multiple INs function
Support one ports of USB3.2
Support USB3.2 and USB2.0 Link Power Management
Support USB3.2Gen2 x2
Up to 20Gbps
Support PPS/PD3.0/PD2.0/QC4+/QC4/QC3.0/QC2.0/AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
Support DFP/Source
Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1
5V/3000mA power output for Type C port
A type c female, an external USB3.2 interface and internal SATA power
Power Input: 15-pin SATA CD-ROM Type Power Connector
Support device remote wakeup function from USB keyboard or mouse
Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
Operation Temperature 0 to 60°C (32 to 140°F)
Storage Temperature-20 to 70°C (-4 to 158°F)
Operation Humidity5 to 95% RH
System Requirements
Windows OS
Linux 2.6.31 or later (Linux OS already implemented USB3.2 driver)
You'll receive:

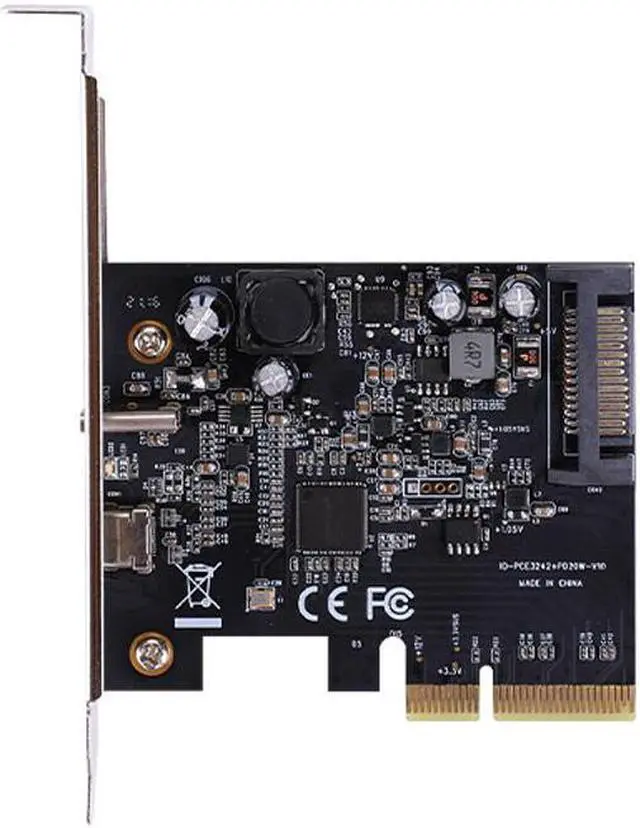

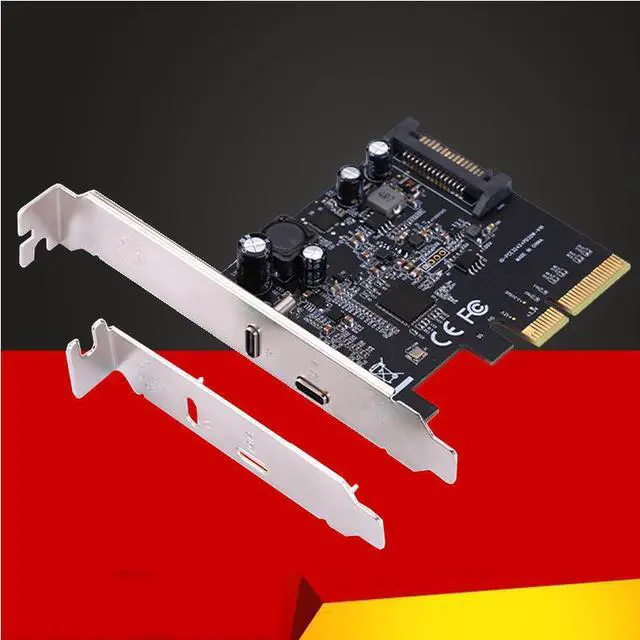

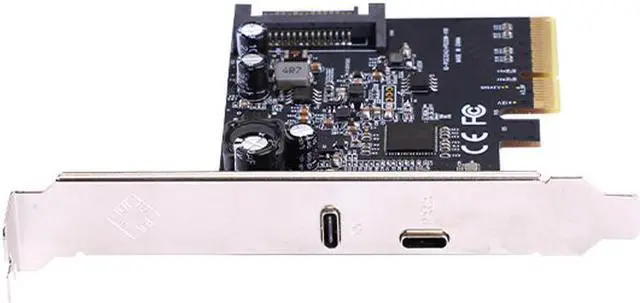

1 x PCIe to USB3.2 Type-C + Type-C PD Controller Card
1 x User Manual
1 x Low Profile Bracket
Please check pictures for more details.
