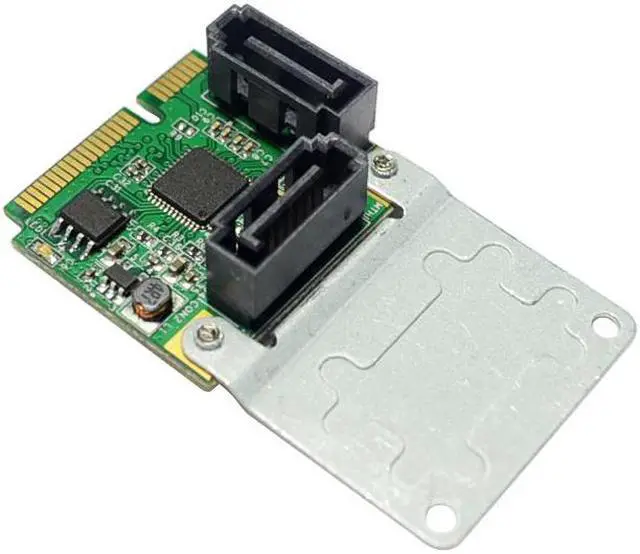

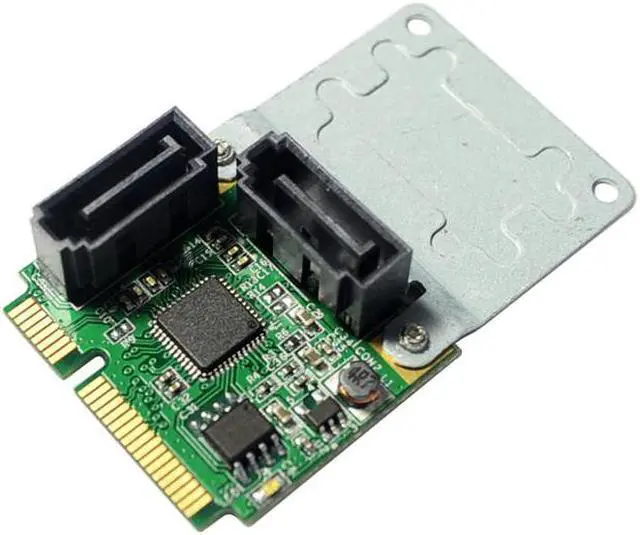

Mini PCI-Express to SATA 3.0 Support 6Gb/s 2x Internal Port RAID Controller Card

Type:Add On Cards
Interface Type:PCI Express
Package:Yes
Model Number:IO-MPCE1061R-2IR

Mini PCI-Express to SATA 3.0 Support 6Gb/s 2x Internal Port RAID Controller Card
Note: We are professional supplier of Host
Controller Card
accessories. I
f you need to buy a lot of this item, please send message to us, we will give you the best price and e
xpress service.
About Description:
100% And .
Chipset (IO-MPCE1061R-2IR)
Specifications
Industry Specifications Compliance:
Compatible with PCI-E Mini Card Electromechanical specification revision 1.2
Serial ATA AHCI Spec. Rev.1.3
Serial ATA Revision 3.2
Serial ATA Features
Supports 2 ports Serial ATA PHY
1.5Gbps, 3.0Gbps and 6.0Gbps speed negotiation
SATA PHY 1i/1m/2i/2m/3i
Supports AHCI and IDE programming interface
Supports Native Command Queue (NCQ)
Supports Port Multiplier command based switching
Embedded hardware RAID engine
Supports RAID0, RAID1, SPAN
RAID mode changeable, controlled via the setting by two GPIOs or GUI utility
RAID0 high performance for the data transmission
Supports S.M.A.R.T feature
Supports automatic rebuild
Supports high performance off-line rebuild
Supports background rebuild
System requirements:
Windows® 10,8.1,7 (32 / 64 bit) / Vista / Server 2012 / 2008,Linux

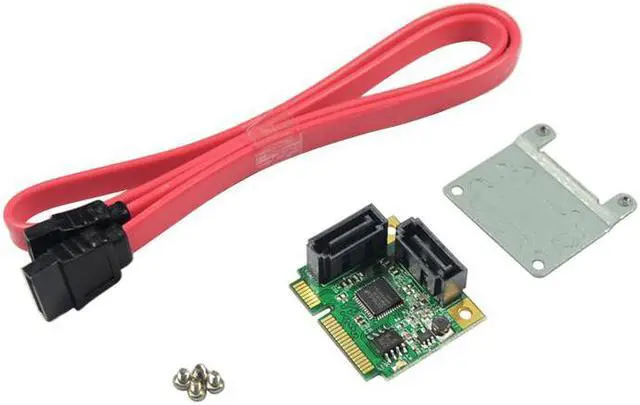

You'll receive:
1 x
SATA III (6Gbps) 2-port Mini PCI-Express Controller RAID Card
(
Included the small white Iron Bracket
)
1 x User Manual
1 x SATA Cable
Please check pictures for more details.
