USB 2.0 to RS422 RS485 Converter Adapter Serial Cable FTDI Chipset with Magnetic Ring Serial Communication Cables 180cm

Interface Type:USB
Package:Yes
Model Number:IO-USB4285-02

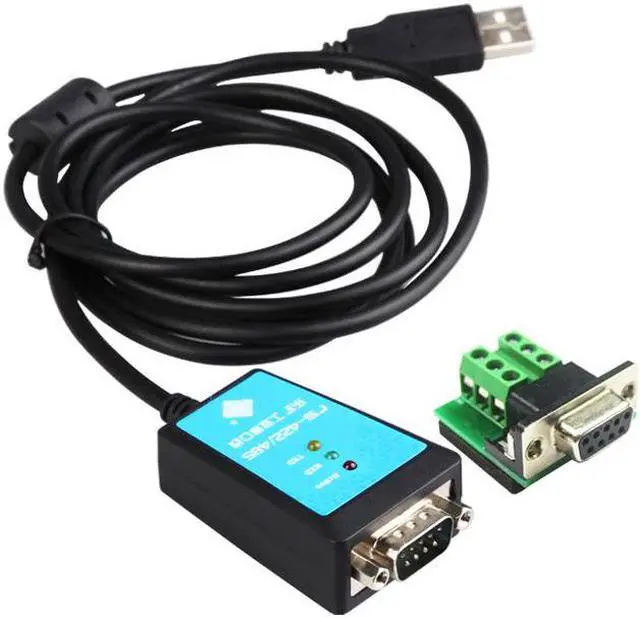

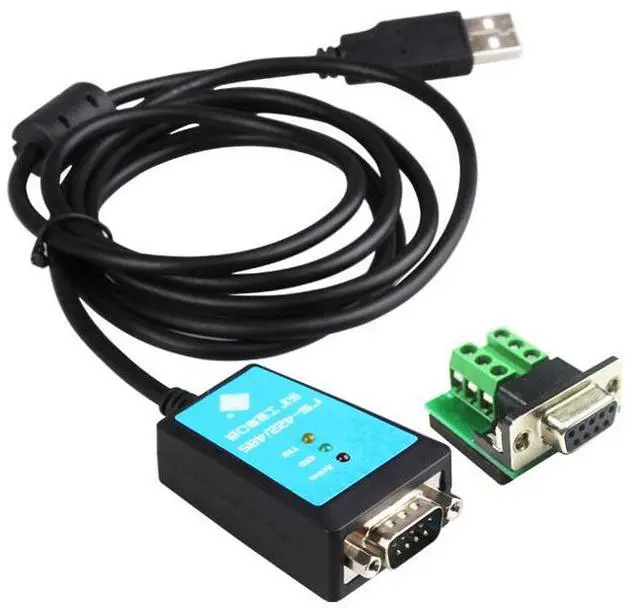

USB 2.0 to RS422 RS485 Converter Adapter Serial Cable FTDI Chipset with Magnetic Ring Serial Communication Cables 180cm
A USB 2.0 to RS422/485 Converter. USB2.0 to COM port, 9Pin serial Cable.
FTDI Chipset, Line length:1.8M, Magnetic Ring, with LED.
SKU: IO-USB4285-02
Specifications:
1.Standards:
conforming to USBV1.0, 1.1 and 2.0
2.RS-485
,
RS-422 TIA/EIA Standard
3.USB signals: VCC, DATA+, DATA-, GND and FG
4.RS-422 Signal: T/R+,T/R-,RXT+,RXD-,GND; RS-485 signals:
T/R+,T/R-.GND
5.Working mode: asynchronous working
,
point-to-point or point-to-multipoint 2 wires (half duplex) 4 wires (full duplex)
6.Single chip USB to asynchronous serial data transfer interface
7.Direction control: Adopt the technology which automatically controls the data-flow direction
,
automatically distinguish and control the data-transmission direction
;
8.Support Bits per second Data transfer rates from 300 baud to 921600baud
;
9.UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
10.Flow control none,hardware and xon/xoff
11.Synchronous and asynchronous bit bang interface options with RD
#
and WR
#
strobes
12.Transmission distance
:
RS-485/422 port:1.2km
(
300bps-921600bps).USB port
:
No more han 5 meters
13.Interface protection: surge protection and ±15KV ESD protection
14.Load capability
;
Support point-to-multipoint transmission. Each converter can connect 32 RS-422 or RS-485 interface equipment

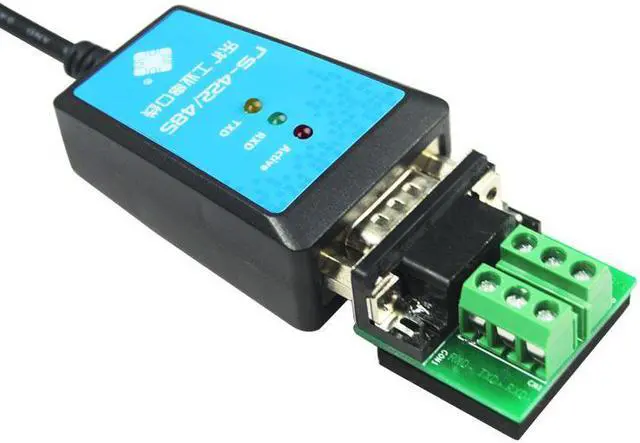

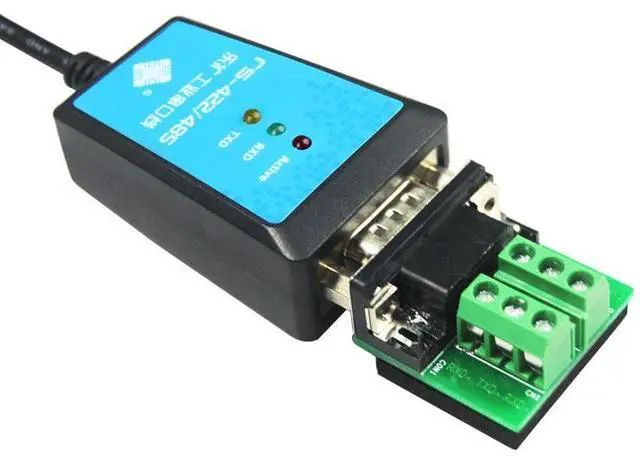

15.Signal indication
:
indicator lights for Power (PWR)
,
Send (TXD) and Receive (RXD)
16.Transmission media: twisted-pair cable or shielded cable
;
17.Extended operating temperature range
;
-40 to 85
Degree
Applications:
USB to UART Cable
POS Printer Terminal
Networking System
Industrial and Power Meter
USB Bar Code Reader
USB Digital Camera Interface
USB Wireless/Wired Modem
Support System
:
Windows XP
,
Vista,7,8 32,64-bit
;
Windows Server 2K3,2K8,2K12 32,64-bit
Windows XP Embedded
Windows CE 4.2
,
5.0 and 6.0
Mac OS-X
Linux 3.2 and greater
Android

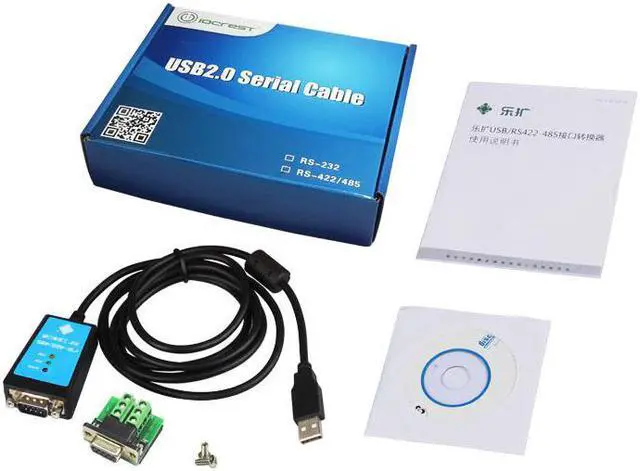

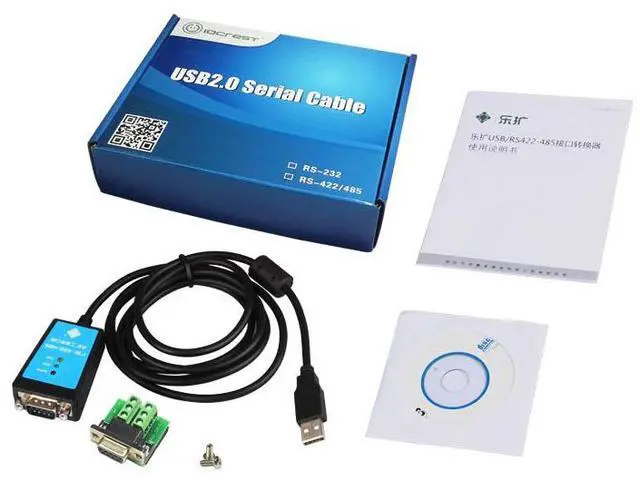

You'll receive:
1 x USB 2.0 to Serial Converter
(
Only Support 10M High Speed
)
1 x User Manual
1 x CD Driver
1 x Adapter
Please check pictures for more details.
