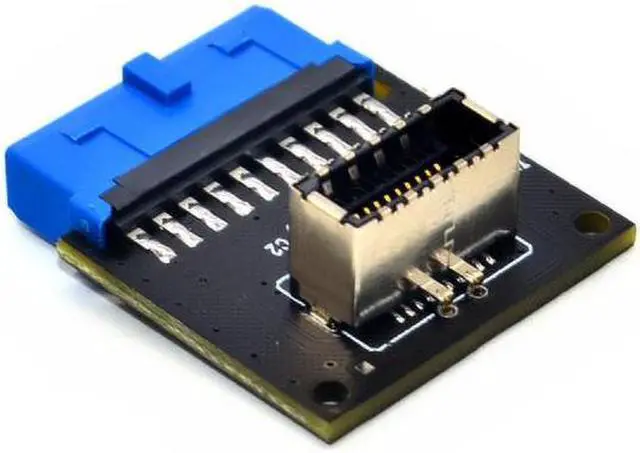

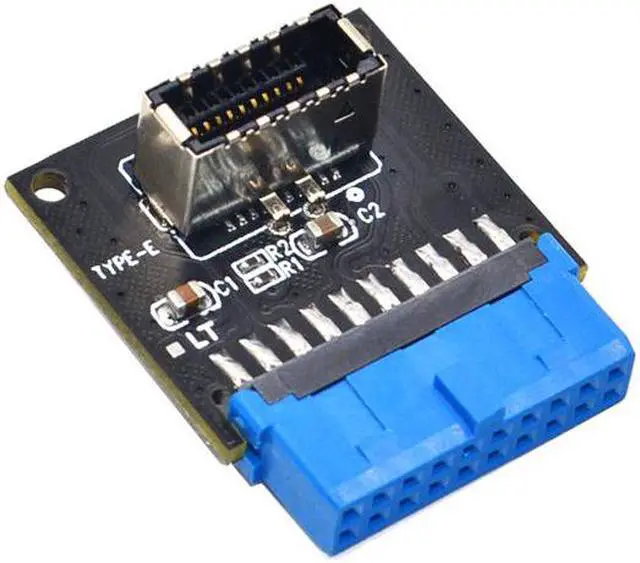

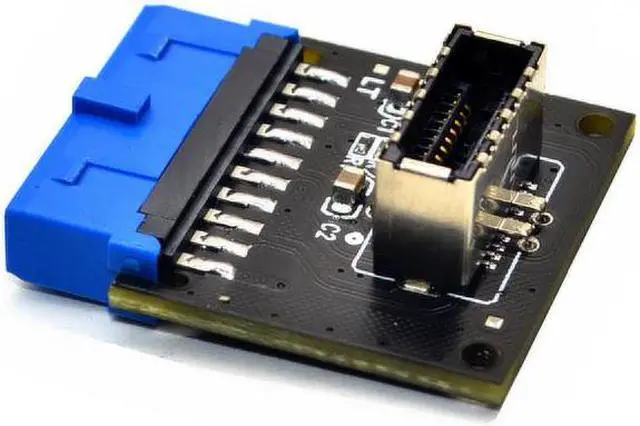

USB 3.1 Front Panel Socket to USB 3.0 20Pin Header Male Extension Cable Adapter for Motherboard Card 20P USB to TYPE-E Connector

Package:Yes
Model Number:AC4552
Interface Type:USB
Connector1:USB 3.0 Front Panel Socket
Connector2:USB 3.1 TYPE-E Front Panel Header
usb1:riser
usb2:front panel pc
usb3:usb adapter
usb4:pc front panel usb
usb5:usb 20pin
usb6:usb 3.0
usb7:usb 3.1 type-e connector
usb8:20pin to type-e expansion card

USB 3.1 Front Panel Socket to USB 3.0 20Pin Header Male Extension Cable Adapter for Motherboard Card 20P USB to TYPE-E Connector
About Description:
USB 3.1 Front Panel Socket to USB 3.0 20Pin Header Male Extension cable card Adapter for Motherboard
Even the most up-to-date motherboards with AMD AM4 or Intel 2066 sockets are not always equipped with a USB 3.1 header.
The adapter is the perfect solution to use the USB 3.1 connectors with Type-C or Type-A.
The small converter is plugged into a USB 3.0 header that provides two USB 3.0 lanes.
Thus, two data lines with 5 Gbps each are available, which are bundled into a USB 3.1 header with 10 Gbit / s.
The converter thus provides a full-fledged USB 3.1 port.
Connector1: USB 3.0 Front Panel Socket
Connector2: USB 3.1 Front Panel Header
The adapter is a converter to convert the available USB 3.0 header of a motherboard into a USB 3.1 header.
Thus the USB 3.1 port of a housing can also be supplied with USB 3.1 without a suitable mainboard.
The compact adapter can be inserted directly and requires no additional attachments.
Converter plug-in for the mainboard
Fits into any USB 3.0 header
Bundling in USB 3.1 with up to 10 GBit / s
Compact shape factor
Convenient accessory for case with USB 3.1 connector
You'll receive:
1 x USB3.0 20Pin to USB3.1 TYPE-E Connector
Please check pictures for more details.
