PCI-E X4 to M.2 NVME SSD NGFF Convert Card B+M Key Converter Adapter Support SATA 3.0 6Gbps

Interface Type:PCI Express
Package:Yes
Model Number:IO-PCE4X-NS

PCI-E X4 to M.2 NVME SSD NGFF Convert Card B+M Key Converter Adapter Support SATA 3.0 6Gbps
About Description:
100% And .
Part Number: IO-PCE4X-NS
Specifications
Supports PCIe x4 or x8 or x16 slot
Compliant with PCI Express M.2 specification 1.0
Compliant with SATA III specification
Serial ATA Spec. Reversion 3.2
Supports data transfer up to 6.0Gb/s
Connects SATA motherboard to NGFF B Key SSD
Connects PCIE motherboard to NGFF M Key SSD
Supports SATA-based NGFF SSD
Supports 2230, 2242, 2260, 2280 and 22110 size NGFF SSD
One NGFF M.2 B Key socket and one NGFF M.2 M Key socket available
5 screw holes 2230/2242/2260/2280/22110 available to fix NGFF SSD card
5 screw holes available to fix PCB board
Easy installation & no driver required
System Requirement:
Supports any OS, like Windows, Win CE and Linux etc.

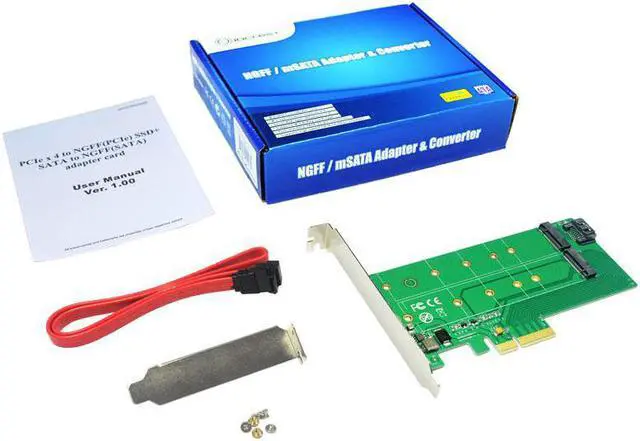

You'll receive:
1 x PCIE X4 to NGFF(PCIe) SSD+SATA to NGFF(SATA) Adapter Card
1 x SATA Cable
1 x User Manual
2 x Screw Drive
4 x NGFF M.2 SSD Mounting Screws
Please check pictures for more details.
