ASM3142 chip 10Gbps USB3.1 Gen 2 Type-E 20 Pin Expansion Card USB 2.0 PCI Express 3.0 X2 Adapter for Desktop PC Computer Raiser

Origin:CN(Origin)
Model Number:AC4630
Interface Type:PCI Express
Package:Yes
Certification:NONE
Type:Add On Cards
Item type:TYPE-E USB3.1 Expansion Card
Speed:10Gbps
Color:Black
Support OS:Windows XP/Vista/7/8/10,Linux OS
Chipset Model:ASMedia ASM3142
Bus Type:PCI-E 3.0 2X
Compatible:PCI-Express 2x/4x/8x/16x
Use:for Desktop
Feature 1:adapter
Feature 2:card
Feature 3:pci express
Feature 4:raiser
Feature 5:pci-e
Feature 6:computer accessories desktop
Feature 7:pci e
Feature 8:pcie usb adapter
Feature 9:pc components
Feature 10:pcie
Feature 11:usb 3.1 pci-e
Feature 12:pcie adapter
Feature 13:pci-e usb
Feature 14:pcie card
Feature 15:pcie usb
Feature 16:pci express 3.0

ASM3142 chip 10Gbps USB3.1 Gen 2 Type-E 20 Pin Expansion Card USB 2.0 PCI Express 3.0 X2 Adapter for Desktop PC Computer Raiser
About Description:
Features:
1. USB3.1 high-speed transmission, real reading in seconds for playing games and watching movies, so that you don't have to wait for open all kinds of large files, instantly open, from the worry of waiting.
2. The size is only 125*85*18.5mm, which is powered by the chassis power (15Pin interface), equipped with installation screw and drive CD, which is easy to install and use.
3. Support PCI-E 3.0 specification, and downward compatible with PCI-E 2.0 specification. Applicable interfaces: PCI-E 2X, PCI-E 4X, PCI-E 8X, PCI-E 16X. The master controller pass the USB-IF certification, which conforms to the USB3.1 specification revision 1.1 formulated by Intel.
4. All-solid capacitor integrated, equipped with high performance, electrical components, all metal baffle, increase anti-interference ability, improve the stability of data transmission.
Specifications:
Compatible with WinXP/7/8/10, LINUX
Interface: USB3.1 Type-E(20pin) + USB2.0
Bus Type: PCI-E 3.0 X2
Main Control: ASMedia ASM3142 10Gbps
Size: 125 X 85 X 18.5mm/4.92 X 3.35 X 0.73"
You'll receive:
1 x Expansion Card
1 x Low Profile Bracket
1 x Drive CD

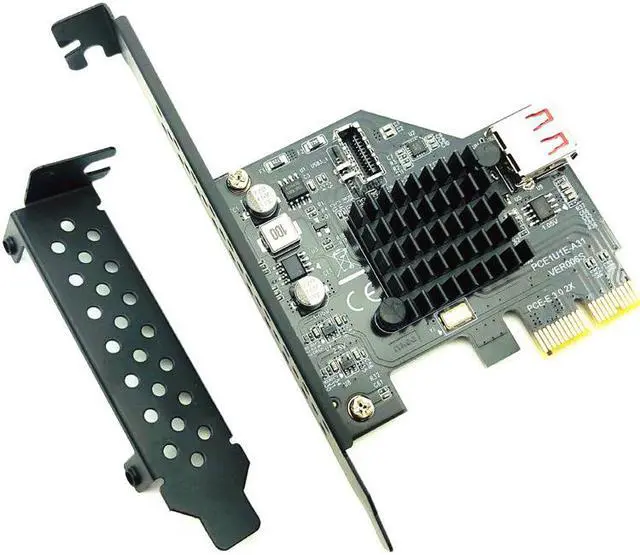

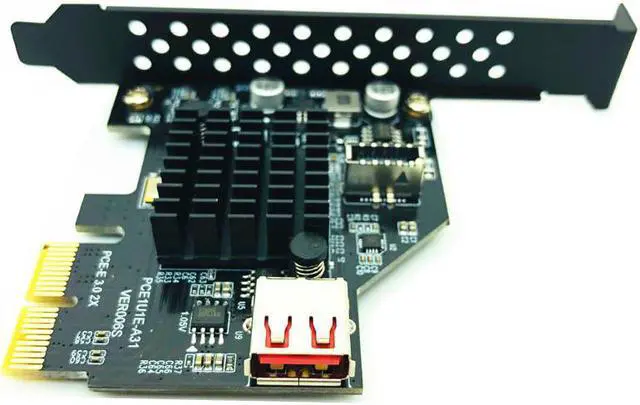

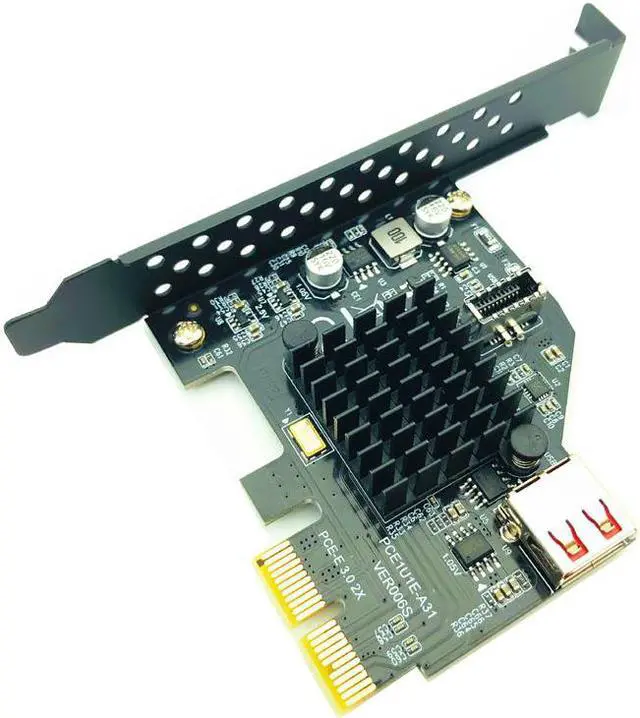

Please check pictures for more details.
