Mini PCI-E to PCI Express PCI-E 1x Board USB 2.0 Half Full Mini PCIE Adapter Card 4Pin Power Supply Computer Components for PC

Interface Type:USB
Package:Yes
Model Number:AC3741

Mini PCI-E to PCI Express PCI-E 1x Board USB 2.0 Half Full Mini PCIE Adapter Card 4Pin Power Supply Computer Components for PC
About Description:
Description
1.The PCI-E 1x to half Mini PCI-E Card is a adapter for PCI-E interface card.
2.This adapter allows you to use your existing PCI-Express Add-in-Card in both half and full size Mini PCI-E slot.
3.It's especially designed to save valuable labor and time in the production environment.
4.As a powerful tool for engineers, the PCI-E 1x to half / full Mini PCI-E Card is constructed of components for years of trouble service.
Features and Specification:
1. Dimesion: 50x30mm(LxW)

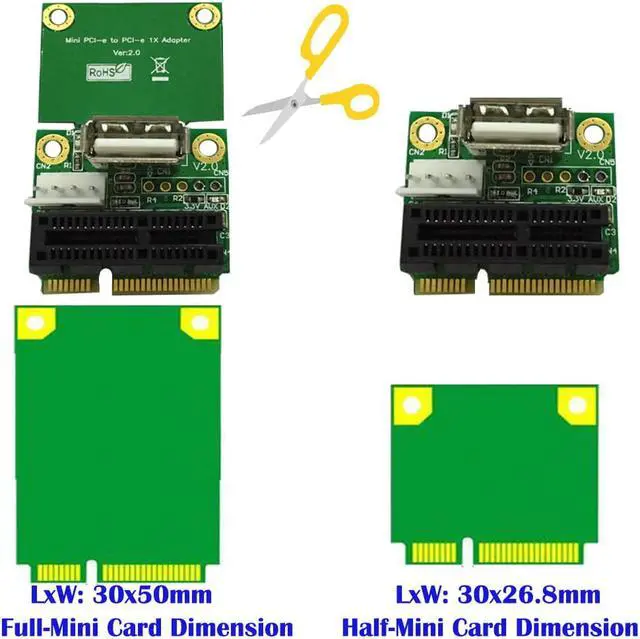

2. Supports both Full-size(30*50mm) and half-size(30*26.8mm) Mini PCI-E slot.

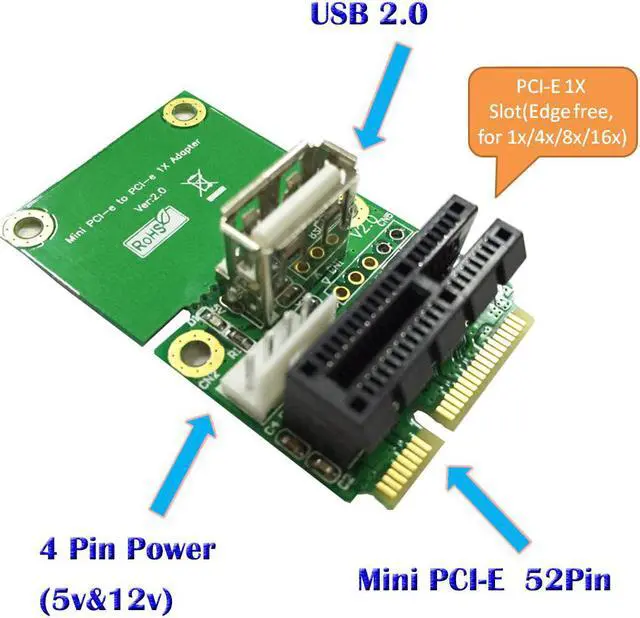

3. As PCI Express x1 connector design is edge-,  So supports PCI-Express 1x, x4, x8 and x16 PCIe Card
4. Designed to meet PCI Express Mini Card Electromechanical  Specification Revision 1.0 and PCI Express base specification vision 1.1
5. Compliant with multi-system of PC, Supports any OS, like WindowsXP/7/8/10, WinCE & Linux etc
6. connectors for long service life and reliability
7. Use external 5V/12V power supply for USB and PCIe device.

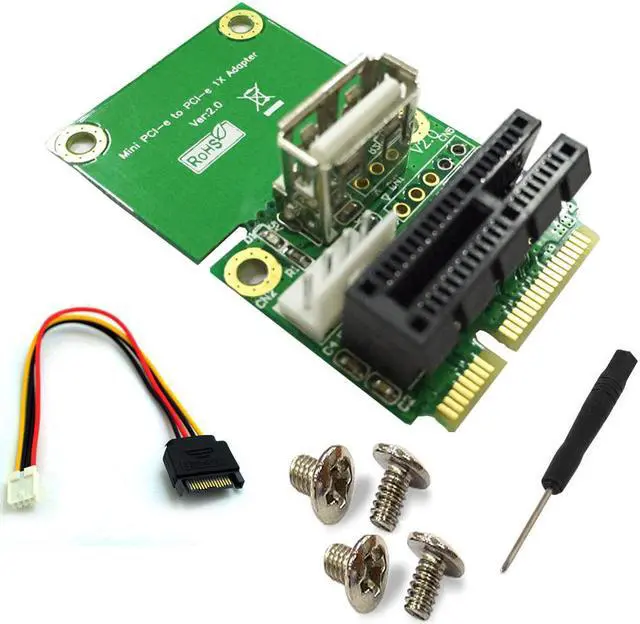

You'll receive:
1 x PCI-E 1X to Half/Full Mini PCI-E Adapter
1 x 4 Pin to SATA Power Cable
1 x Screw Driver
4 x M2 Screw
Please check pictures for more details.
