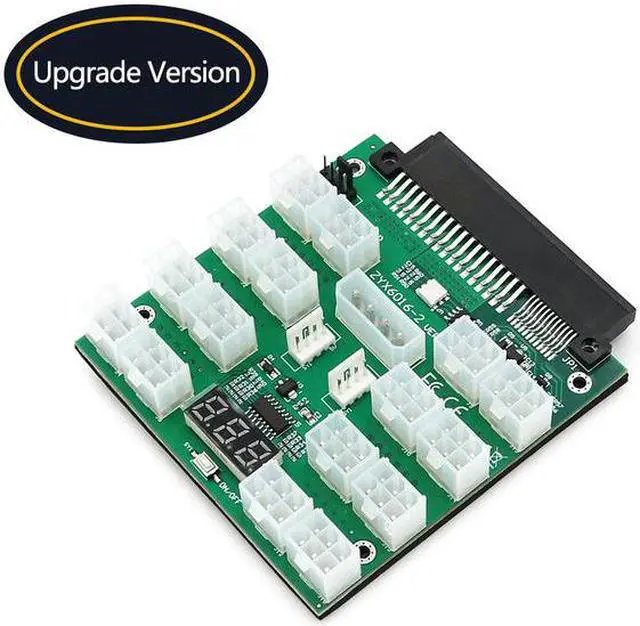

Mining Breakout Board ATX 16 Ports 6Pin Power Supply Module for Dell 750W 1100W 2000W PSU Server GPU Graphics Card Bitcoin Miner

Origin:CN(Origin)
Type:Cable Adapter
Certification:NONE
Package:Yes
Products Status:STOCK
Direction:Same Side
Model Number:AC5122
Product Name:Power Adapter Convert Card for Mining
Product Color:Green
Power Supply:MAX 2400W
Product type:Power Board Adapter
Connector:ATX 16 PCIe 6Pin Connector
Function:Dedicated for bitcoin mining
Feature 1:Breakout Adapter
Feature 2:power supply module
Feature 3:breakout board
Feature 4:power adapter
Feature 5:Power Supply Breakout Board
Feature 6:power supply
Feature 7:mining power supply
Feature 8:atx power supply

Mining Breakout Board ATX 16 Ports 6Pin Power Supply Module for Dell 750W 1100W 2000W PSU Server GPU Graphics Card Bitcoin Miner
About Description:
Specification
Product Name: Power Supply Breakout Board Adapter for ETH/BTC Mining
this board is only suitable for Dell brand PSU and the following model listed.
Output Power: 12V
PCB Color: Green
Applicatioin: for mining graphics card power

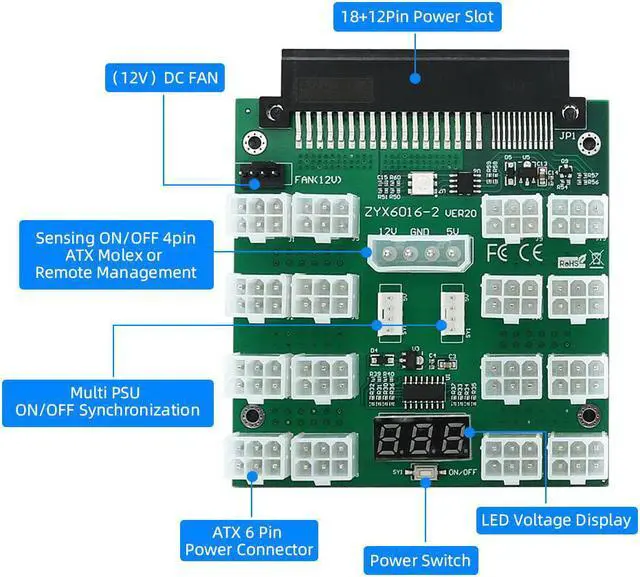

Features:
1. Maximum Support up to 12Amp / 2400Watts
2. Electronic on/off switch. Retains its state.
3. Breakout boards is done by connecting the interconnect cable from PSU 1 to PSU2, PSU 2 to PSU 3, and so on.
4. 16PCIe ports, for 6pin connectors
5. On-board LED voltage meter display
6. Confirmed Power Supply Compatibility List:
750 Watt Platinum Rated 94% Efficiency 110-240v:D750E-S1, DPS-750AB-2 A, 05NF18
D750E-S6, DPS-750AB-15B, 05RHVV
E750E-S1, 700-013536-0100, 00XW8W
F750E-S0, S-0750ADU00-101, 06W2PW
L750E-S0, PS-2751-13D-LF, 0W8R3C
750w Watt Titanium Rated 96% Efficiency 200-240v:D750E-S7, DPS-750AB-17 A, 0KNHJV
1100 Watt Platinum Rated 94% Efficiency 110-240V:D110E-S0, DPS-1100BB B, 0PR21C
E1100E-S0, AA26510L, 0YT39Y
L1100E-S0, PS-2112-4D2-LF, 038GYJ
L1100E-S1 , PS-2112-8D2, 09TMRF
1050w @ 100-120V input
1100w @ 200-240V input
2000 Watt Platinum Rated 94% Efficiency 110-240V:D200E-S2, DPS-2000EB-2 A, 0960VR
1000w @ 100-120V input
1750w @ 200-205V
You'll receive:
1 x Board Adapter
1 x 4Pin Cable
1 x SATA to Molex 4Pin Cable
1 x Quick Installation Guide

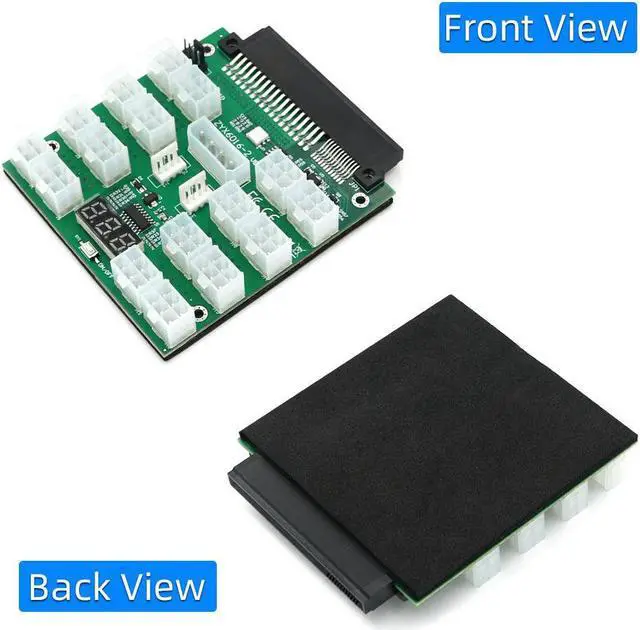

Please check pictures for more details.
