mSATA to M.2 Adapter 6.0Gbps mSATA Mini PCI-E 3.0 SSD to NGFF M.2 B Key SATA Interface Adapter Card Support Full size Half Size

Type:Cable Adapter
Products Status:STOCK
Package:Yes
Model Number:AC3939
Feature 1:msata m.2 adapter
Feature 2:ssd msata adapter
Feature 3:msata enclosure
Feature 4:msata ssd to m.2 ngff converter
Feature 5:Support Full-size and Half-size
Feature 6:msata case
Feature 7:msata m2
Feature 8:msata to m2
Feature 9:msata to m2 ngff
Feature 10:for msata ssd disk

mSATA to M.2 Adapter 6.0Gbps mSATA Mini PCI-E 3.0 SSD to NGFF M.2 B Key SATA Interface Adapter Card Support Full size Half Size
About Description:
Specification:
1. 100% and
2. Connects mSATA SSD to NGFF B+M Key motherboard.
3. Compliant with PCI Express M.2 specification 1.0.
4. Compliant with SATA III specification.
5. Supports data transfer up to 6.0Gb/s.
6. Supports 27mm half-height & 50mm full-height mSATA SSD.
7. Supports socket 2 (B Key) & socket 3 (M Key).

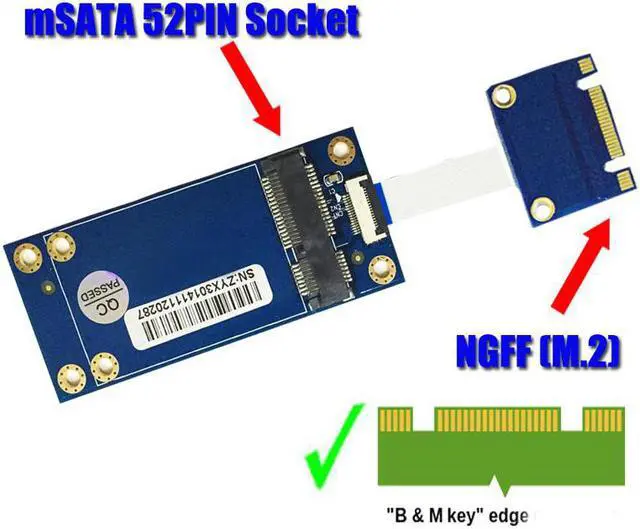

8. One mSATA Mini PCI-E socket and one NGFF M.2 B+M Key male connector available.
9. With screw holes to fix PCB board and mSATA SSD.
10. Easy installation & no driver required.
11. No additional power required.
12. Supports boot function.
13. Supports any OS, like Windows, WinCE & Linux etc.
About Mini PCIe SSD interface standard:
1. Mini PCIe interface defined there are six,A: mSATA Solid State Drive,using SATA protocol;B: SATA MINI PCIE Solid State Drive,its nature is SATA interface,but the pin definition is different compared with mSATA solid State Drive; C: PATA MINI PCIE Solid State Drive, its nature is IDE interface;D: Raid mSATA;E:3G or WIFI module;F:Inter Turbo Memory.Six types of interface definition looks exactly the same,so please be sure to distinguish your solid state drive's interface definition.
2. Mini PCIE interface solid hard except has interface definition of the difference, also has length of distinction: A: half high, length 2.7 cm; B: full high, length 5 cm; C: length 7 cm, Please make sure your machine is compatible!
About M.2 NGFF SSD interface standard:
1. Socket 2(B key):there are SATA(such as THNSNH128G8NT/ THNSNH128GDNT/MZNTD256HAGM models of SSD) and PCI-E x2(such as PX-AG128M6E/PX-AG256M6E/PX-AG512M6E/SD6PP4M models of SSD) two different transfer mode.
2. Socket 3(M key):PCI-E x4(such as MZHPU128HCGM MZHPU256HCGL and MZHPU512HCGL models of SSD) transfer mode.
Note:
Please note that it supports mSATA Mini PCI-E SATA SSD only. It does NOT supports Mini PCI-E (PATA), 1.8" Micro SATA & Airbook SSD.
Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

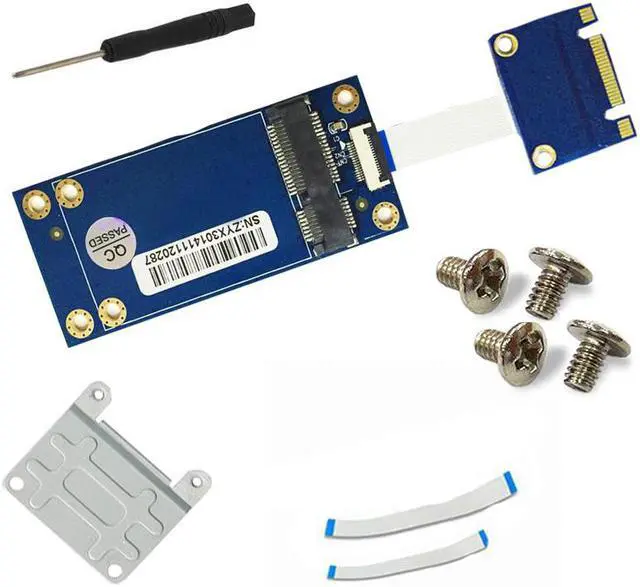

You'll receive:
1 x mSATA to NGFF M.2 B+M Key Adapter Card
3 x FPC Cable(5/10/15cm)
1 x Metal Extender Bracket
1 x Screw Driver
4 x Screw
Please check pictures for more details.
