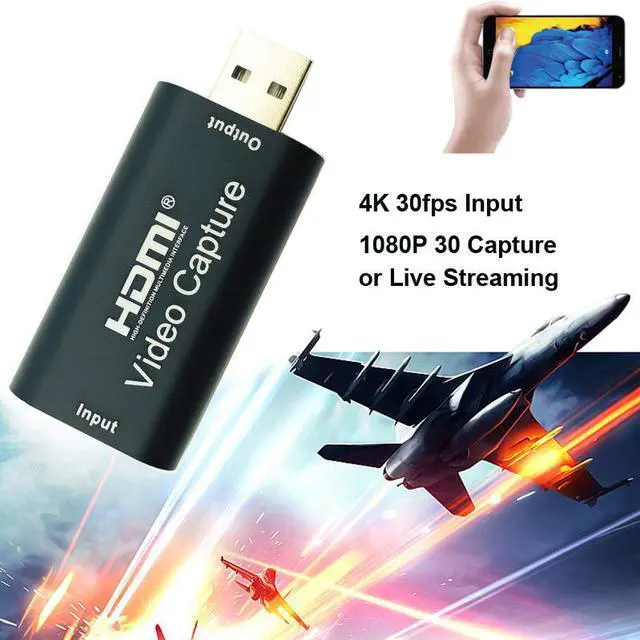

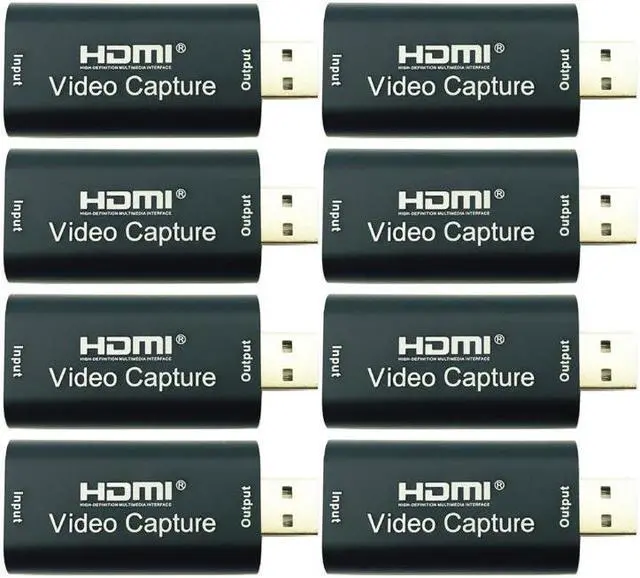

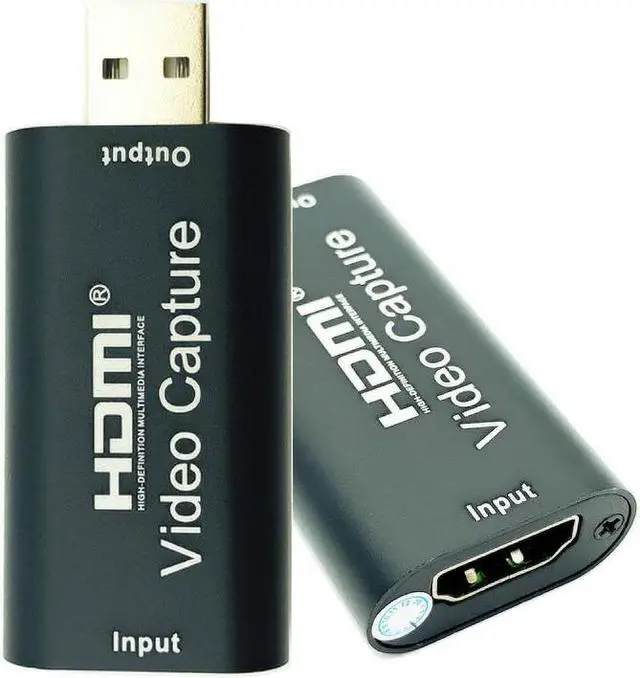

Video Capture Card HDMI Capture Device USB 2.0 Game Capture Live Streaming Grabber Record Box for PC PS4 HD Camera Capture Card

Model Number:AC4688-2
Package:Yes
Interface Type:USB
Product name:USB 2.0 Mini Video Capture Card
Type:Video & TV Tuner Cards
Feature 1:video card
Feature 2:video cards
Feature 3:capture card
Feature 4:hdmi capture
Feature 5:streaming
Feature 6:VHS
Feature 7:hdmi video capture
Feature 8:video capture
Feature 9:board capture
Feature 10:video capture card
MAX Input Resolution:4K
MAX Output Resolution:1080P
Support System:Windows 7/8/8.1/10, Mac OS
Color:Black
Function 1:video capture usb
Function 2:hdmi capture usb
Function 3:hdmi to usb capture
Function 4:hdmi to usb video capture
Function 5:capture hdmi
Function 6:hdmi capture card
Function 7:usb video capture card hdmi
Function 8:video capture box
Function 9:game capture
Function 10:usb video capture hdmi
Function 11:capture hdmi usb
Function 12:game capture card
Function 13:hdmi video capture card
Function 14:video grabber usb

Video Capture Card HDMI Capture Device USB 2.0 Game Capture Live Streaming Grabber Record Box for PC PS4 HD Camera Capture Card
About Description:
Product introduction:
This USB 2.0 capture card can capture HDMI video and HDMI audio at the same time. It can transmit audio and video signals to a computer and smart phone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.
Features:
* Support maximum input resolution up to 4K;
* Support maximum output resolution up to 1080P;
* Support 8/10/12 bit color depth;
* When using standard AWG26 cable, input transmission distance up to 15 meters (1080P and below resolution);
* Support most acquisition software, such as VLC, OBS, Amcap, etc .;
* Support Windows, Android and MacOS;
* Comply with USB video UVC specifications;
* Complies with USB audio UAC specifications;
* No external power supply, compact size and easy to carry.
Product Specifications:
specification:
HDMI resolution: the highest input can support 4K
Video input format: 8/10 / 12-bit color depth
Video output mode: YUV, JPEG
Video output resolution: Maximum output resolution 1080P
Support audio format: L-PCM
Input cable length: 15 meters, AWG26 HDMI standard cable
Maximum working current: 0.4A / 5VDC
Operating temperature range: (-10 to + 55 )
Size: 64x28x13 (mm)
Weight: 21.4g
Connection operation:
1: Connect the UHD signal source and the HDMI input port of the USB capture card through 1 HDMI cable
2: Plug the USB header of the USB capture card into the USB port of the computer
3: Acquisition operation steps (OBS): Open the software add a source select video capture device set the screen size
Select Studio Mode (dual window) click Start Recording, see the example below
1. Add a source and select Video Capture Device 2. Set the screen size
3. Select Studio Mode (dual window) and the above settings are completed.
Note:
Computer-side hardware configuration requirements
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
You'll receive:
1 x HDMI Video Capture Card
1 x User Manual
Please check pictures for more details.
