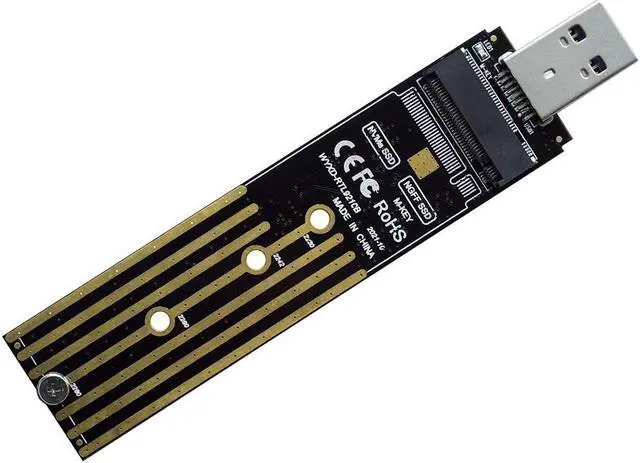

M.2 to USB Adapter Dual Protocol SSD Board M.2 NVME PCIe NGFF SATA M2 Card Support 2230 2242 2260 2280 NVME/SATA M2 SSD RTL9210B

Origin:CN(Origin)
Type:Cable Adapter
Package:Yes
Certification:NONE
Products Status:STOCK
Direction:Same Side
Model Number:AC5040
Product name:M.2 NVMe NGFF SATA SSD USB 3.1 adapter board
Note:This is just a case, not include any ssd drive
Support M.2:Type 2280: 80mm(L) x 22mm(W)

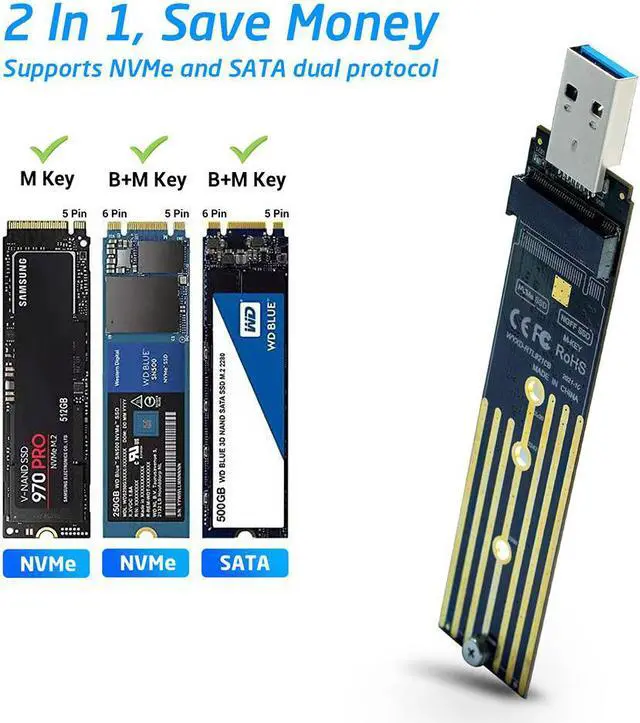

Support M.2 Interface 1:M key/B+M Key NVMe M.2
Support M.2 Interface 2:B+M Key NGFF M.2

M.2 to USB Adapter Dual Protocol SSD Board M.2 NVME PCIe NGFF SATA M2 Card Support 2230 2242 2260 2280 NVME/SATA M2 SSD RTL9210B
About Description:
Features:
M.2 NVME SSD to USB adapter, which is not cable needed. Use as a portable SSD.
High performance 10Gbps USB3.1 Gen 2 bridge chip, high-speed retrieve and backup data.
Hot swap, plug and play, no driver need. Fit for Samsung 970 series / 960 series / WD Black / Intel / Crucial NVME SSD.
Without enclosure cover, can realizes SSD's full potential of its high performance
With RTL9210B chip, The chip uses low-power technology, if there is no read or write operation within 10 minutes, the SSD power will automatically turn off
Specification:

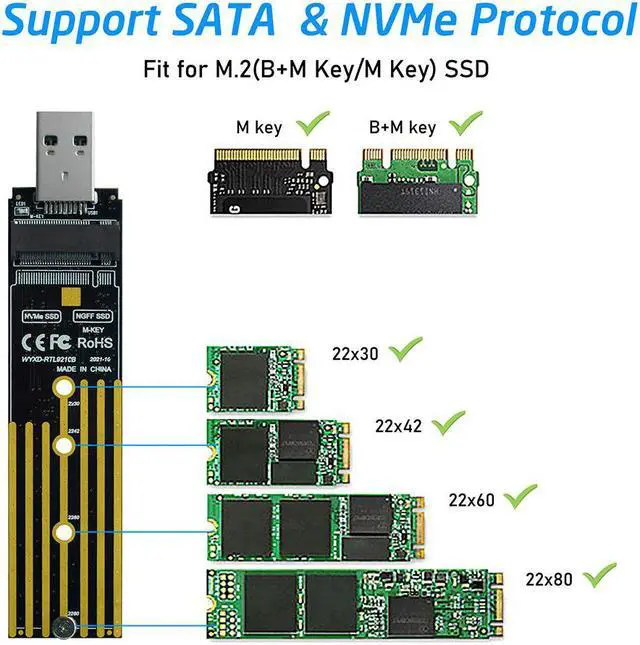

Applicable: for NVMe M.2 interface 2242/2260/2280 SSD/ or for SATA protocol m.2 SSD)
Interface: USB 3.1 Gen 2 Type-A to M Key M.2 SSD
Interface speed: 10Gbps for USB 3.1 Gen 2 Type A
Chip: RTL9210B
Working environment: - 20 ~ + 70 ° C
System support: WinXP / win7 / win8 / win10 / Linux / for MAC
Product size: 110*23*5mm/4.33*0.918*0.20"
Warm Tips:
1. Only hard disk boxes, SSD hard disks are not included.
2. Only NVMe PCI-E M.2 M-Key SSD is supported/B-Key M.2 SSD based on SATA NOT For PCI-E AHCI M.2 SSD
You'll receive:
1 x M.2 SSD to USB 3.1 Adapter
1 x Screwdriver
Please check pictures for more details.
