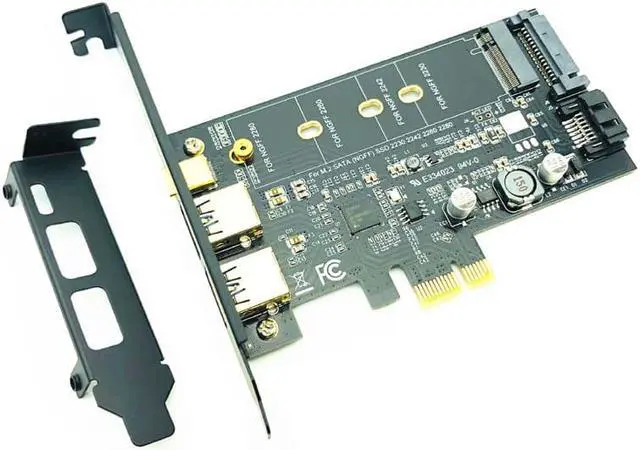

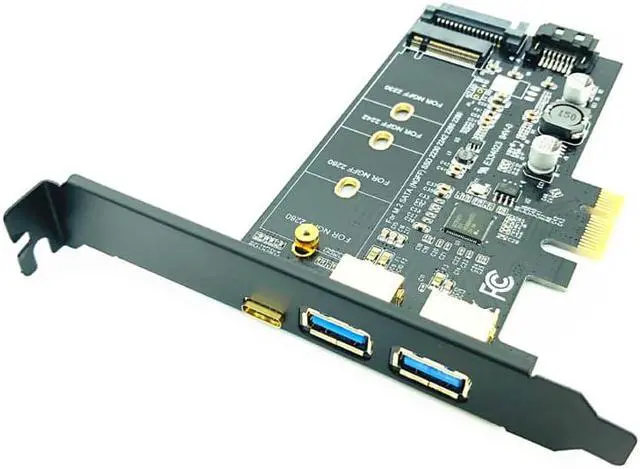

USB 3.0 PCI Express Riser Card Dual Port USB3.0 + 1 Port USB 3.1 Type-C + M.2 NGFF Adapter M2 SATA SSD B Key to PCI-E Controller

Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:AC4635
Type:Add On Cards
Interface Type:PCI Express
Feature 1:pcie to m2 adapter
Feature 2:usb 3.0 pci-e card
Feature 3:m2 to sata
Feature 4:pci-e usb 3.0 card
Feature 5:pcie riser
Feature 6:m.2 adapter
Feature 7:usb hub 3.0
Feature 8:m.2 ssd pcie adapter
Feature 9:usb 3.0 controller
Feature 10:pcie usb 3.0

USB 3.0 PCI Express Riser Card Dual Port USB3.0 + 1 Port USB 3.1 Type-C + M.2 NGFF Adapter M2 SATA SSD B Key to PCI-E Controller
About Description:
Features:

1. Comply with PCI Express dual channel (X2) basic specification Revised Edition 2.0.
2. Conforming to universal serial bus 3.1 specification Gen2.
3. Conforming to the USB connection SCSI protocol revision 1.0.
4. Compatible xHCI (extensible host controller interface) Specification Revision 1.1.
5. Support simultaneous operation of multiple USB3.0, USB 2.0 and USB 1.1 devices.
6. Support 5G / 480M/12M / 1.5M bpsUSB data transfer rate.
7. Built-in current protection for each USB port.
8. Inputting interface: using the latest USB3.1 Type-C interface
9. The data transmission rate can reach USB 3.1 GEN 1 5Gbps.
Specifications:
Color: Black
Main control chip:  D720201
Support
Out put interface 1: USB3.1 TYPE-C
Out put Interface 2:    2*TYPE-A interface
Interface 3: sata 3.0 input
Interface 4: 1*M.2 NGFF SATA (2230 2242 2260 2280)
Support system: WinXP/Win7/Win8 32 bit /64 bit WiN 10,
Not support Mac OS


Instructions:
1. Insert the M.2 (SATA protocol) hard disk of B key or B+M key into the M2 interface on the riser card. Note: you cannot use NVMe M.2 PCIE SSD.
2.Connect the motherboard hard disk interface and riser card with SATA cable.
3. Plug the SATA power port of the power supply into the SATA 15PIN on the riser card.
4. Cconnect PCIE 1X to motherboard
Note: Please dont use SATA ports to connect in 2.5inch HDD/SSD, it use for M.2 SSD data transfer

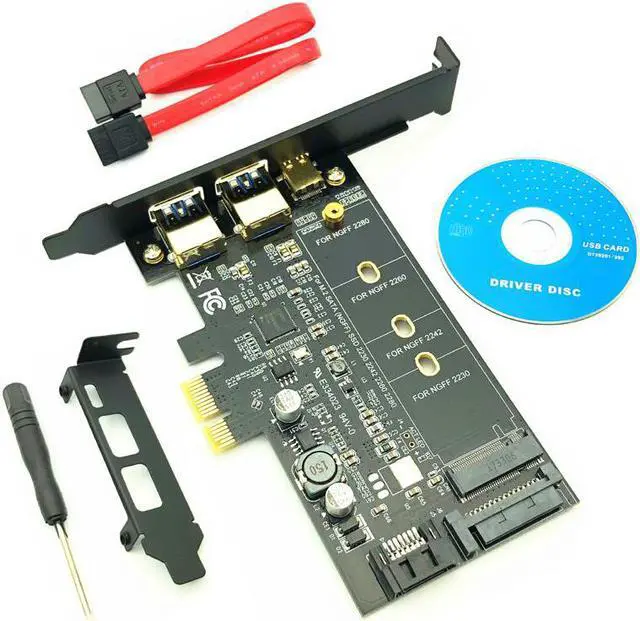

You'll receive:
1 x USB3.1 Type-C Expansion Card
1 x SATA Cable
1 x Low Profile Bracket
1 x CD Driver
Please check pictures for more details.
