Computer Cables & Connectors USB RS232 Adapter USB 2.0 to RS-232 Male (9-pin) DB9 Serial Cable with FTDI Chipset Supports Win10

Type:Cable Adapter
Products Status:STOCK
Package:Yes
Model Number:AC4095
Feature 1:usb rs232 adapter
Feature 2:usb to rs232
Feature 3:rs 232
Feature 4:rs232 cable
Port:1 port rs232
Chipset:FTDI
LED:YES
Support:USBV1.0, 1.1 and 2.0
USB signals:VCC, DATA+, DATA-, GND and FG
RS-232 signals:CD RXD TXD DTR GND DSR RTS CTS RI

Computer Cables & Connectors USB RS232 Adapter USB 2.0 to RS-232 Male (9-pin) DB9 Serial Cable with FTDI Chipset Supports Win10
About Description:
This USB to Serial Port Adapter provides a simple and easy way to make a bi-directional bridge between USB bus and serial port peripheral device. Ideal for PDAs, digital cameras, GPS units, barcode scanners, and other equipment offer only serial connections, and PC's don't have a serial port. USB to UART Bridge Controller is a USB-IF certified, fixed function device that requires no programming from the user.
IOCrest USB to RS232 DB9 Serial Adapter is designed for connecting to serial devices such as DB9 equipped serial modems, barcode scanners, etc. through USB port with 1Mbps data transfer rate
CONNECTORS: With standard USB Type A Male to standard 9-pin DB9 RS-232 serial connector;
CHIPSET & SUPPORTED OS: FTDI-FT232RL Chipset for widest possible stability and compatibility with Windows (10/8.1/8/7XP), Mac, Linux, etc. Support almost all serial COM port
Single chip fully integrated solution: integrated Clock, EEPROM, USB termination Resistors, Voltage Regulator
Data format: 8 data bits, 1 stop Bit, No Parity
Features
1.Standards: conforming to USBV1.0, 1.1 and 2.0
2.USB signals: VCC, DATA+, DATA-, GND and FG
3.RS-232 signals: CD RXD TXD DTR GND DSR RTS CTS RI
4.Single chip USB to asynchronous serial data transfer interface
5.Support Bits per second Data transfer rates from 300 baud to 921600baud (RS232 ) at TTL levels
6.UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
7.Flow control none,hardware and xon/xoff
8.Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
9.UART signal inversion option
10.USB 2.0 Full Speed capable
11.Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD)
12.Extended operating temperature range; -40 to 85C
Applications
USB to UART Cable
POS Printer Terminal
Networking System
Industrial and Power Meter
USB Bar Code Reader
USB Digital Camera Interface
USB Wireless/Wired Modem
You'll receive:
1 x USB 2.0 to Serial Converter
1 x User Manual
1 x CD Driver

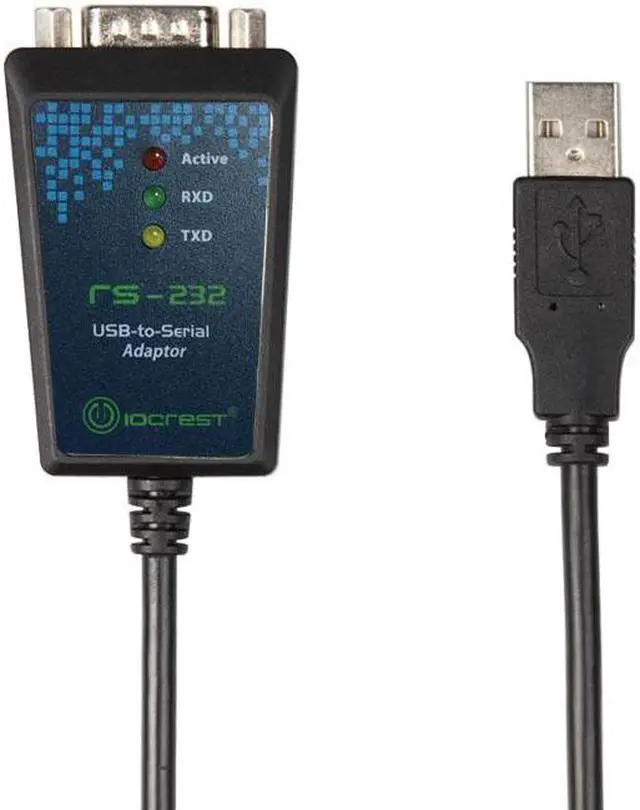

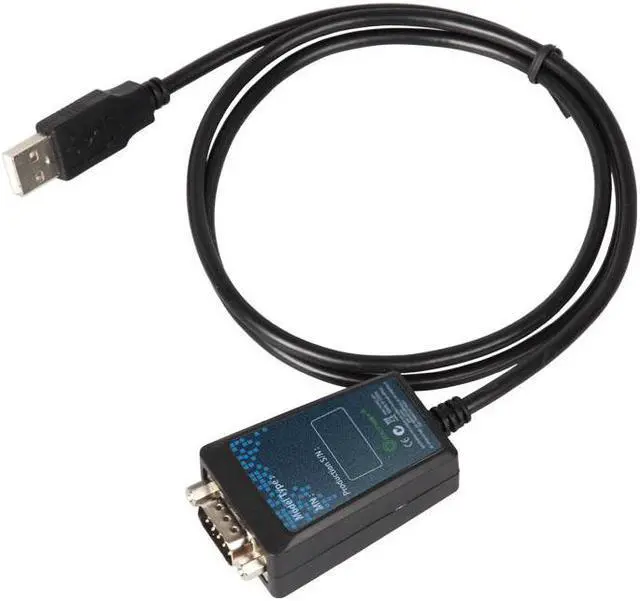

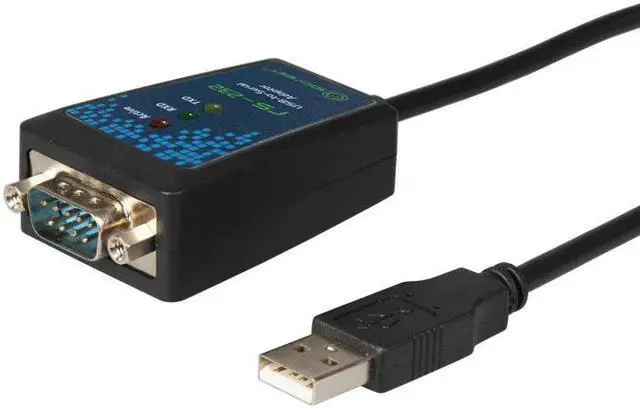

Please check pictures for more details.
